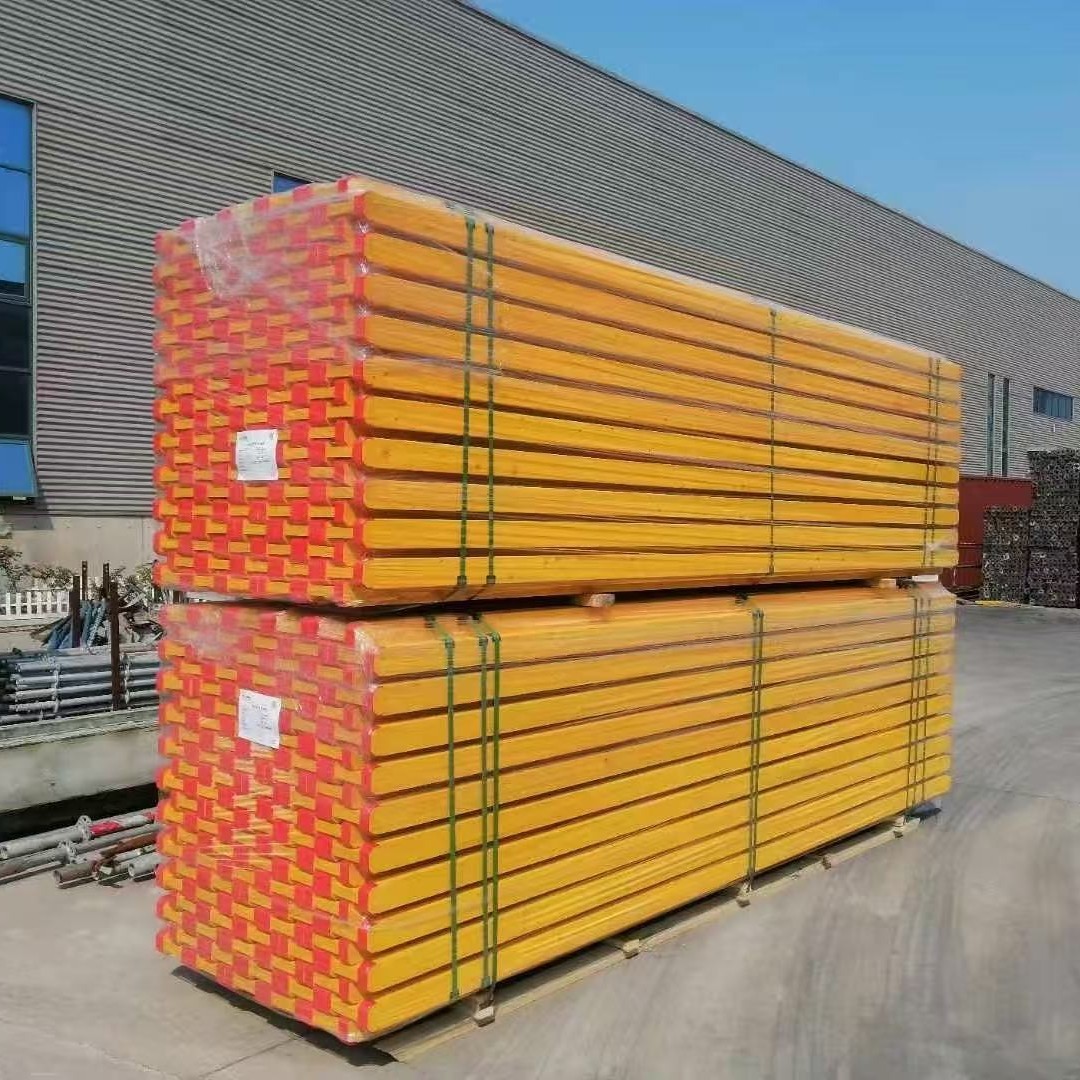

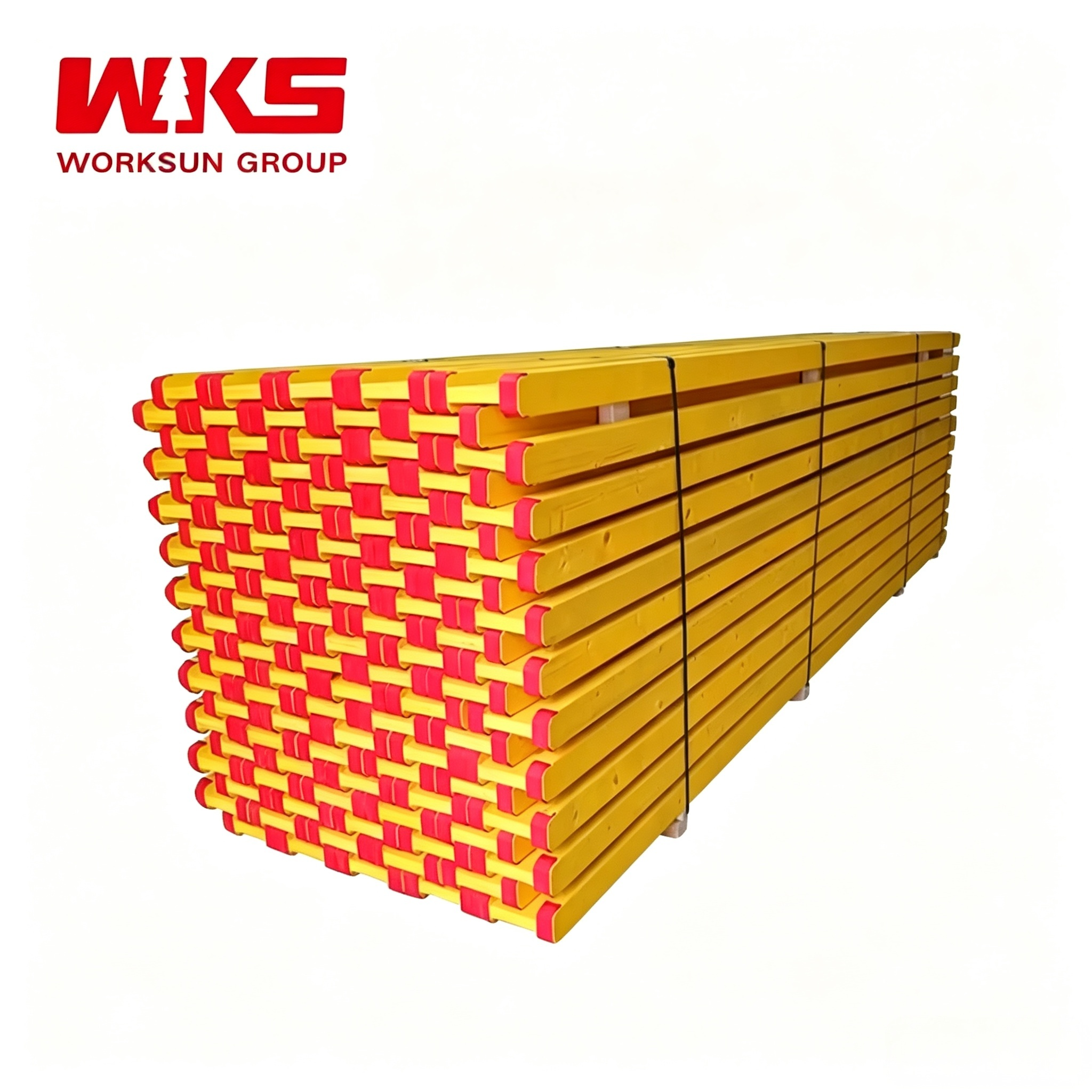

H20 Timber Beam Formwork Support Beam with High Load Capacity and Lightweight Double-Web Construction
H20 Timber Beam Formwork Support Beam with High Load Capacity and Lightweight Double-Web Construction
Specifications
Certification :
ROHS
Material :
Flange :spruce/fir wood , Web:poplar plywood
Price :
US $5.90 - 6.80/ Square Meter
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Shear Capacity (broken loading) :
24KN
Height :
20cm
Supply Ability :
1000 piece in 10 days
Color :
yellow
Payment Terms :
T/T
web thickness :
27mm or 30mm
Delivery Time :
10-30 workday
Width :
8cm
Place of Origin :
Hebei,China
Wood type :
Finland Spruce/fir&plywood
MOQ :
50 piece
Bending Bearing Moment :
11KN M
Brand Name :
WKS
Product name :
Timber Beam Formwork
Length :
900mm-5900mm
Description
Best Custom H20 Timber Beam - High Load Capacity, Lightweight Formwork Support for Construction Projects
Product Overview

The H20 Timber Beam is a high-performance load-bearing component engineered for concrete formwork systems. Featuring a double-web construction and finger-jointed solid wood flanges, it provides exceptional strength-to-weight ratio for slab, wall, column, and bridge formwork in residential, commercial, and infrastructure projects.

Compared to steel beams, H20 timber beams are lighter, easier to cut on-site, and more cost-effective while maintaining excellent load capacity and durability.

Key Advantages
  • Lightweight Design - Only 4.5-5.5 kg per meter; easy manual handling
  • High Load Capacity - 11-15 kN bending capacity with minimal deflection
  • Long Service Life - Up to 10+ years with proper care and maintenance
  • Double-Web Construction - Superior bending and shear resistance
  • Water-Resistant Glue Bond - WBP (Water & Boil Proof) for outdoor use
  • Easy On-Site Customization - Can be trimmed to required lengths with standard tools
Customization Capabilities

All products support project-based customization:

  • Length: 2.45m, 2.90m, 3.30m, 3.60m, 3.90m, 4.50m, 5.90m (custom available)
  • Flange material: Solid spruce or pine
  • Web material: 3-ply or 5-ply birch/poplar plywood
  • Glue grade: MR, WBP, or Phenolic resin
  • Moisture content controlled at ≤12%
Technical Specifications
Parameter Specification
Beam Height 200mm (H20)
Flange Width 80mm
Web Thickness 27mm
Weight 4.5-5.5 kg/m
Load Capacity (Bending) 11-15 kN
Elastic Modulus 7500-8500 N/mm²
Moisture Content ≤12%
Glue Type WBP (Water & Boil Proof)
Applications

Slab formwork (supporting joists and stringers), wall formwork (vertical backing beams), column formwork, bridge deck formwork, staircase and foundation formwork.

Lead Time & MOQ
  • Standard orders: 7-15 days
  • Custom projects: 15-25 days
  • Factory direct - competitive pricing
