EN 13377 Certified Timber Beam Formwork Reusable Timber Formwork For Concrete
EN 13377 Certified Timber Beam Formwork Reusable Timber Formwork For Concrete
Specifications
Brand Name :
WKS
Certification :
ROHS
Place of Origin :
Hebei,China
MOQ :
50 piece
Price :
US $5.90 - 6.80/ Square Meter
Payment Terms :
T/T
Supply Ability :
1000 piece in 10 days
Delivery Time :
10-30 workday
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product name :
H20 Timber Beam Formwork
Wood type :
Finland Spruce/fir&plywood
Material :
Flange :spruce/fir wood , Web:poplar plywood
Color :
yellow
Width :
8cm
Height :
20cm
web thickness :
27mm or 30mm
Length :
900mm-5900mm
Bending Bearing Moment :
11KN M
Shear Capacity (broken loading) :
24KN
Description
H20 Timber Beam Formwork EN 13377 Certified Reusable Wood Beam
Product Overview

The H20 Timber Beam is an engineered wood I-beam system designed as the primary support for slab, wall, and column formwork. Combining solid timber flanges with a plywood web, it delivers a superior strength-to-weight ratio for efficient concrete shoring and support structures.

Features & Functions
  • Lightweight & Easy Handling: At only ~5 kg/m, it enables manual installation without heavy machinery, reducing crane dependency and accelerating setup times.
  • High Load-Bearing Capacity: Engineered to withstand significant concrete pressure with a bending moment capacity of ~5 kNm and shear force of ~11 kN, ensuring minimal deflection.
  • Modular & Adaptable: Standard 200mm height allows for flexible grid layouts with secondary beam spacing optimized for 18-21mm plywood panels.
  • Durable & Reusable: Treated with waterproof coatings and end caps, it offers a service life of 20-30 reuses under proper maintenance.
Technical Specifications
Product H20 Timber Beam
Wood Type Finland Spruce/Fir & Plywood
Color Yellow
Width 8cm
Height 20cm
Length 900mm - 5900mm
Weight Approximately 4.5kg - 30kg
Materials Flange: Spruce/Fir Wood, Web: Poplar Plywood
Wood Moisture 12% ± 3% at delivery
Surface Protection Waterproofed using water-repellent color glaze
Flange Wall Width: 80mm, Thickness: 40mm
Web Thickness 27mm or 30mm
Shear Capacity 24KN (broken loading)
Bending Bearing Moment 11KN*M
Application Scope

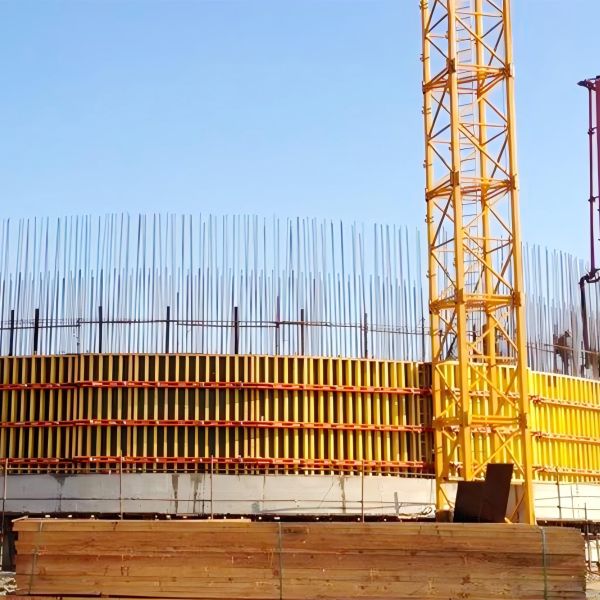

Residential & commercial buildings, concrete tanks, basements, bridge abutments and piers, irregular concrete structures, and various engineering projects including buildings, water conservancy, hydropower, bridges, culverts, and high-rise structures.

EN 13377 Certified Timber Beam Formwork Reusable Timber Formwork For Concrete
Competitive Advantages
Cost-Effective Solution: Lower initial investment compared to full-metal systems, with excellent ROI for mid-rise projects.
Versatile Application: Ideal for complex layouts, curved surfaces, and bridge decks where steel beams are less adaptable.
Reduced Labor Costs: Lightweight design allows for faster, safer manual assembly, cutting down on equipment and labor expenses.
System Compatibility: Designed to work seamlessly with major international formwork systems (Doka, PERI, etc.) and standard plywood panels.
Experienced Engineering Team: Average working experience of 10+ years ensuring professional solutions.
Production Excellence: Over 20 years of production experience ensuring stable product quality.
One-Stop Solution Service Process
Free Consultation Service: Provide construction drawings for evaluation of cost-effective formwork system solutions with detailed quotation.
Full Process Project Team Service: Dedicated team for professional engineering solutions, business communication, and on-site construction management.
Project Emergency Plan Service: Comprehensive planning including emergency handling procedures for formwork system products.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.
What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples? Are samples chargeable?
Yes, we provide samples. Customers pay for shipping costs.
What information is needed for design and quotation?
Architectural and structural drawings of the project are required.
How to get a quotation?
For simple projects with your own engineer, provide bill of materials. For complex projects like apartments and residences, provide engineering drawings for our engineers to develop application plans and quotations.
How long for design and quotation after providing drawings?
Typically 5-8 days to complete specific plans and detailed quotations.
What is the delivery time after contract signing?
Usually 20-30 days for stocking, depending on project complexity. More accurate timelines provided during planning.
What are your payment terms?
T/T: 30% deposit before manufacture, 70% balance against B/L copy. Or L/C.
