Yellow Timber Beam Formwork Waterproof Coating H20 Beam Formwork Customized For Outdoor Concrete Pour
Yellow Timber Beam Formwork Waterproof Coating H20 Beam Formwork Customized For Outdoor Concrete Pour
Specifications
Brand Name :
WKS
Certification :
ROHS
Place of Origin :
Hebei,China
MOQ :
50 piece
Price :
US $5.90 - 6.80/ Square Meter
Payment Terms :
T/T
Supply Ability :
1000 piece in 10 days
Delivery Time :
10-30 workday
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product name :
Timber Beam Formwork
Wood type :
Finland Spruce/fir&plywood
Material :
Flange :spruce/fir wood , Web:poplar plywood
Color :
yellow
web thickness :
27mm or 30mm
Length :
900mm-5900mm
Width :
8cm
Height :
20cm
Bending Bearing Moment :
11KN M
Shear Capacity (broken loading) :
24KN
Description

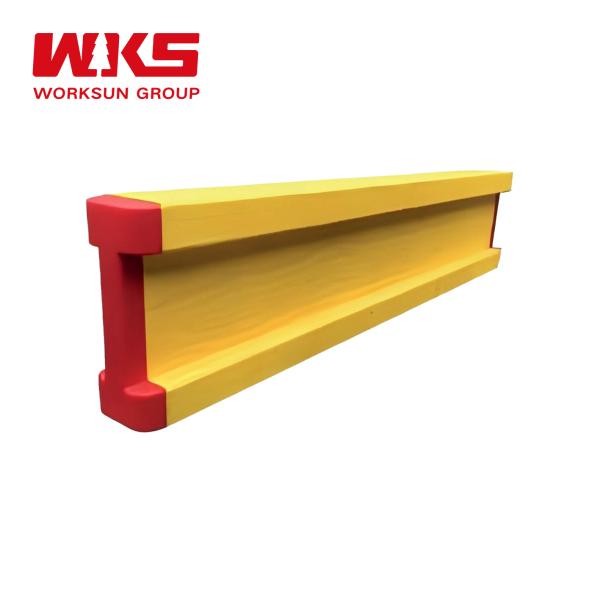

H20 Timber Beam Formwork Waterproof Coating for Outdoor Concrete Pour
H20 Timber Beam Formwork is an engineered I-beam system designed for high-load slab, wall, and column shuttering. Combining solid timber flanges with a structural plywood web, it delivers the ideal balance of strength, lightweight handling, and cost-efficiency for commercial and civil construction projects.
Features & Functions
  • High Strength-to-Weight Ratio: With a standard 200mm height, it offers significant load-bearing capacity while remaining light enough for manual handling, reducing crane dependency on site.
  • All-Weather Durability: Treated with waterproof yellow coating and sealed end caps to resist moisture, rot, and UV damage, ensuring consistent performance in harsh site conditions.
  • Fast Nailing & Assembly: The solid timber flanges provide excellent nail-holding power, allowing for quick attachment of plywood sheathing and easy adaptation to complex layouts.
  • System Flexibility: Compatible with table forms, climbing systems, and traditional slab props, serving as both primary and secondary beams in modular setups.
Key Specifications
Standard Dimension 80mm (W) x 200mm (H)
Flange Material Solid Spruce/Pine (40mm thick)
Web Material 18-27mm Structural Plywood
Standard Lengths 1.45m - 6.0m (customizable)
Weight Approx. 4.5 - 5.5 kg/m
Adhesive WBP / Phenolic (Waterproof)
Technical Specifications
Product H20 Timber Beam
Wood Type Finland Spruce/Fir & Plywood
Color Yellow
Width 8cm
Height 20cm
Length 900mm - 5900mm
Weight Approximately 4.5kg - 30kg
Materials Flange: Spruce/Fir Wood, Web: Poplar Plywood
Wood Moisture 12% ± 3% at delivery
Surface Protection Waterproofed using water-repellent color glaze
Flange Wall Width: 80mm, Thickness: 40mm
Web Thickness 27mm or 30mm
Shear Capacity 24KN (broken loading)
Bending Bearing Moment 11KN*M

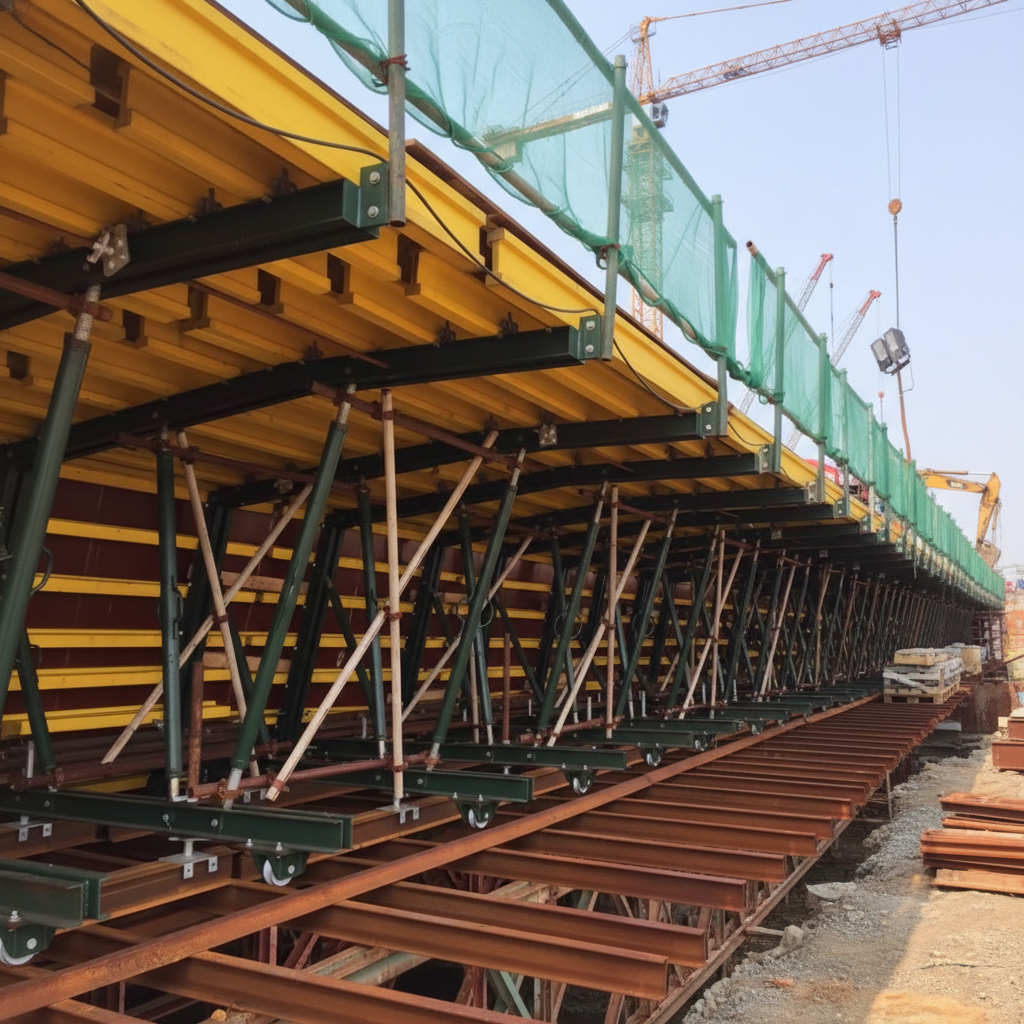

Application Scope
Residential & commercial buildings, concrete tanks, basements, bridge abutments and piers, irregular concrete structures, and various engineering projects including buildings, water conservancy, hydropower, bridges, culverts, and high-rise structures.
Yellow Timber Beam Formwork Waterproof Coating H20 Beam Formwork Customized For Outdoor Concrete Pour
Competitive Advantages
  • Cost-Effective Solution: Lower initial investment compared to full-metal systems, with excellent ROI for mid-rise projects.
  • Versatile Application: Ideal for complex layouts, curved surfaces, and bridge decks where steel beams are less adaptable.
  • Reduced Labor Costs: Lightweight design allows for faster, safer manual assembly, cutting down on equipment and labor expenses.
  • System Compatibility: Designed to work seamlessly with major international formwork systems (Doka, PERI, etc.) and standard plywood panels.
  • Experienced Engineering Team: Average working experience of 10+ years ensuring professional solutions.
  • Production Excellence: Over 20 years of production experience ensuring stable product quality.
One-Stop Solution Service Process
  • Free Consultation Service: Provide construction drawings for evaluation of cost-effective formwork system solutions with detailed quotation.
  • Full Process Project Team Service: Dedicated team for professional engineering solutions, business communication, and on-site construction management.
  • Project Emergency Plan Service: Comprehensive planning including emergency handling procedures for formwork system products.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.
What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples? Are samples chargeable?
Yes, we provide samples. Customers pay for shipping costs.
What information is needed for design and quotation?
Architectural and structural drawings of the project are required.
How to get a quotation?
For simple projects with your own engineer, provide bill of materials. For complex projects like apartments and residences, provide engineering drawings for our engineers to develop application plans and quotations.
How long for design and quotation after providing drawings?
Typically 5-8 days to complete specific plans and detailed quotations.
What is the delivery time after contract signing?
Usually 20-30 days for stocking, depending on project complexity. More accurate timelines provided during planning.
What are your payment terms?
T/T: 30% deposit before manufacture, 70% balance against B/L copy. Or L/C.
