JZQ--5/30 5 rollers steel pipe preliminary straightening manual wire straightener roller

Models represent:
Straightening machine type letter explanation: for example: J Z Q---5/30
JZQ--- straightener (first letter).
The number of 5------ wheels is 5;
Diameter of 30------ straightening wheel.
A------- points: A type straightening device is the overall opening and closing form; B is a single straightening wheel
independent movement adjustment; T is a special straightening device.
V------- is the groove of the straightening wheel; V, R, U and custom.

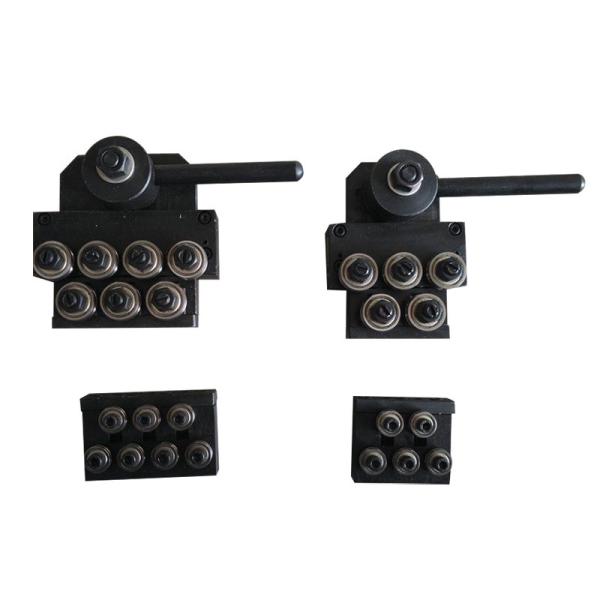

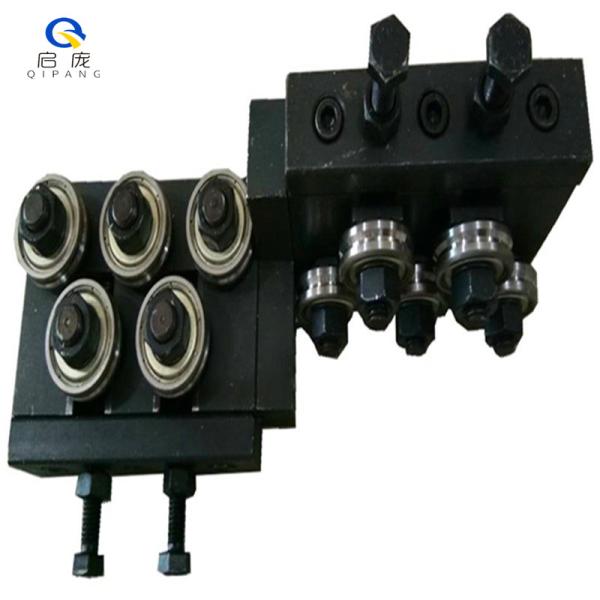

The wire straightener with 5rollers

The machine have 5 rollers. the diameter of rollers is 23mm, 30mm. can do U and V groove. suit 0.8-1.5mm wire diameter, 1.5-3mm wire diameter. There is the hole in the machine behand, you can install it to a plate.

Model: JZQ--5/22 with a guide for the line between 0.8-4mm material oh.., and we also have more straighteners with more rollers such as:10, 18, 22, 26, rollers.
(Note: two pieces: the 5 rounds, a total of 5 rounds according to customer requirements)
Specification: suitable for 0.8--4mm wires
School of linear material: low, medium and high carbon steel wire, copper wire, molybdenum wire, wire, wire. Welding wire, wire, etc.
Diameter of straightening wheel is: 30mm
The wheels is smooth and no grooves.
Number of straightening wheel: 5 wheel ----22
Straight line material form: single group: horizontal straightening device; combination: vertical or horizontal or pneumatic straightening form.
The straightening wheel is separate to adjust, it is easy to find the centre.
Straightening device total quality: bare metal 6KG, even the packaging of about 8 kg.
The size of the straightening device is: 5 rounds of one: 165mm*110mm*33mm

Models represent:

Straightening machine type letter explanation: for example: J Z Q---5/30
JZQ--- straightener (first letter).
The number of 5------ alignment wheels is 18;
Diameter of 30------ straightening wheel.
A------- points: A type straightening device is the overall opening and closing form; B is a single straightening wheel independent movement adjustment; T is a special straightening device.
V------- is the groove of the straightening wheel; V, R, U and custom.

Besides this one, we have different straighteners with: 7+7 rollers, 9+9 rollers, 11+11 rollers, 13+13 rollers. We can customized the machine according you diameter and material.

Small flat bar straightening machines metal wire straightening machines JZQ--5/22

We can customized the machine , for different wire diameter ,give you recommend different model , the roller can open U,V,H groove type ,
