Specifications
Brand Name :
qipang
Model Number :
JZQ 4-6 /10 AV
Certification :
SGS
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
Wire Rod Straightening And Cutting Machine
Colour :
Black and wite
Product Keywords :
Rod Straightening And Cutting Machine
Features :
Rod Straightening Machine
weight :
11 kg
Brand :
Qipang
Application :
3-4 mm Wire
Size :
398mm×300mm×120mm
Description

Diameter 42 mm 10 Roller Wire Straightener Straightener suit 4-6 mm diameter line

Wire Straightener Straight Solid line 4-6 mm​

Wire Straightener Machine Parameter:
Straightener line Specifications: 4-6 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ42 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 10 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 10 wheels, two pieces: 398mm×300mm×120mm

Wire Straightener Machine The biggest features:

※ The stepper motor feeding is added, and the microcomputer control makes the feeding more precise.

※ Taro type feeding, to avoid the phenomenon that the wire is scratched.

※ Suitable for products with high surface finish and precise wire length

※ Automatic feeding, cutting, forming, pushing, and uninterrupted production.

※ Easy operation, stable quality, fast delivery and high production efficiency.

※ Easy operation and convenient switching. The appropriate speed can be selected according to the material, line length, length and shape of the work piece to be processed.

※ The adjustment is simple, and it is only necessary to change the mold to produce different products. Excellent materials, excellent workmanship, high comprehensive performance and long service life.

Wire Straightener Machine specification:

Type JZQ4-6/10
Machine roller Diameter 42mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm

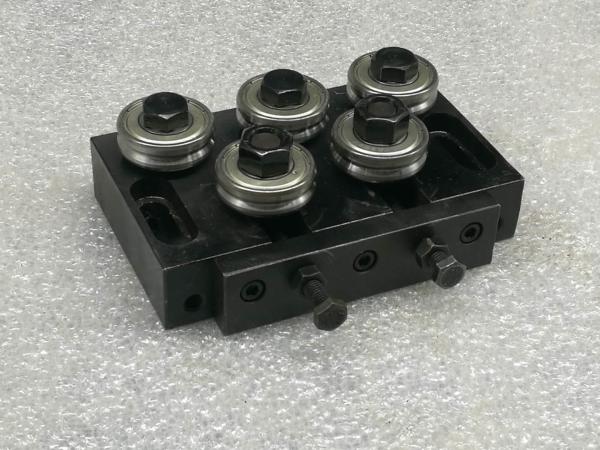

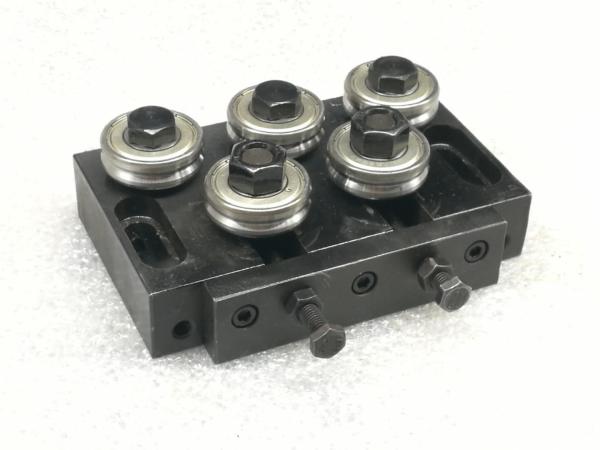

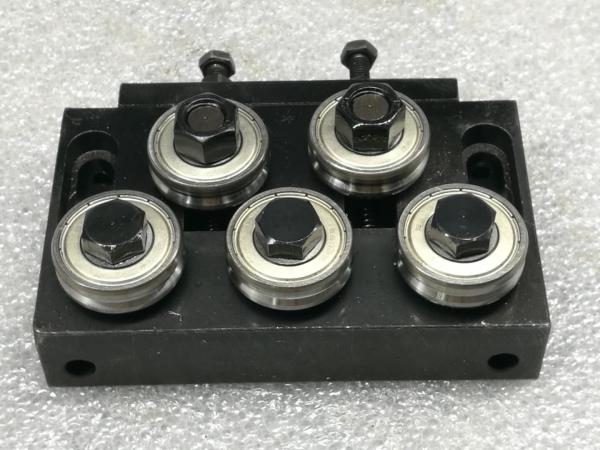

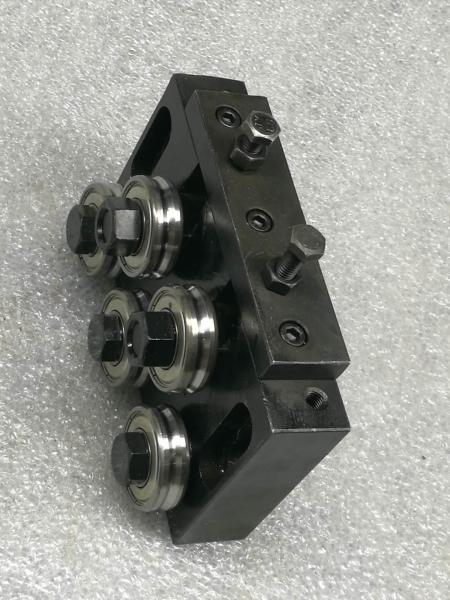

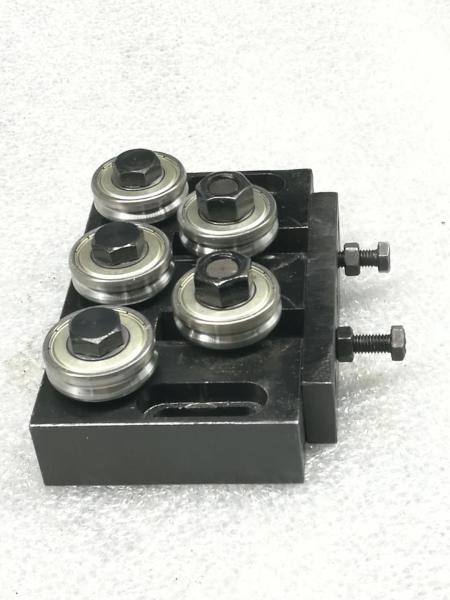

Product show :

Industrial Wire Straightener Machine Solid Line Wire Rod Straightening MachineIndustrial Wire Straightener Machine Solid Line Wire Rod Straightening MachineIndustrial Wire Straightener Machine Solid Line Wire Rod Straightening Machine
