Shanghai Qipang High quality copper wire Wire Straightener Machine JZQ--26/16 AV

Our Company

Shanghai Qi Pang Industrial Co., LTD, is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.

JZQ--26/16 AV detailed parameters:

JZQ - straightening machine
26------ the number of straightening wheels is 26
16------ diameter of aligning wheel.
A------ -- part: A type straightener is integral open and close form;Type B is a single straightening wheel independently moving regulation;
V------ is the groove type of straightening wheel;V, R, U and custom.
Straightening wire specifications:Φ 0.5 mm - Φ 0.8 mm
Total weight of straightener: 3.6 kg without machine, including about 5 kg of packaging
Straightener size: length 610mm x width 90mm x height 90mm

Principle of profile straightener:

The structure of profile straightener generally adopts horizontal and vertical two groups for straightening profiles.The horizontal vertical structure includes two rows of alignment wheels respectively.One row of straightening wheel is a fixed structure, which is called the fixed wheel. Its straightness and center distance are required to be extremely accurate. The outer diameter of straightening wheel and the groove size and finish of the included wire are also required to be very high to ensure that the wire surface is not scratched.Another set of straightening wheels is required to be consistent with the fixed wheels, the difference is that it can move up and down in the direction perpendicular to the center distance, which is called the moving wheel.

Specification

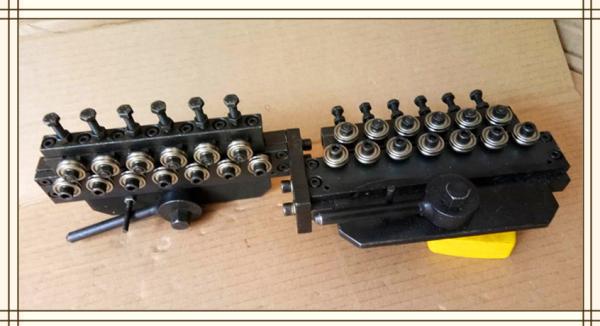

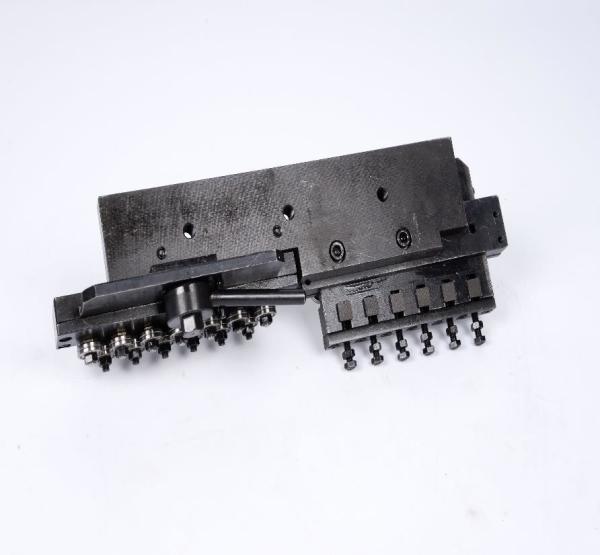

Product display​
