1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts
1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts
1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts
1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts
Specifications
Brand Name :
QIPANG
Model Number :
Various models
Certification :
CE
Place of Origin :
Shanghai
MOQ :
5 unit
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
1000 units per month
Delivery Time :
5 working day
Packaging Details :
Carton
Type :
Wire Straightening Rollers
Condition :
New
After-sales Service :
Video technical support
Application :
bar/pipe/wire
Warranty :
7 months
Function :
Straightening
Material :
bearing steel
Main Market :
Asia, Europe, America, Africa, etc.
Description

1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts

JZQ 0.8-4.0/5.B.V detailed parameters

JZQ--- wire straightener

Straightening wire specification:Φ0.8mm----Φ4.0mm

30----- The number of straightening rollers

5------ The diameter of the straightening roller

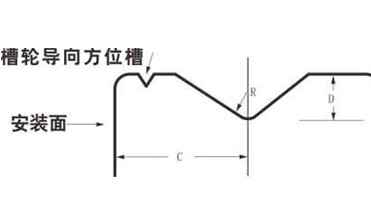

V------- The groove type of straightening roller; V,R,U,and customization

A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.

Straightener size:length 108mm×width 25mm×height77mm

Total weight of straightener:The machine is 3 kg, including package about 4 kg

Applicable to 0.8-4.0mm solid wire,pipe also can use

Product model Wire diameter Roller numbers Roller diameter
JZQ0.1-.3/24,AV φ0.1-0.3 24 7
JZQ0.3-.5/34,AV φ0.3-0.5 34 12
JZQ0.5-0.8/26,AV φ0.5-0.8 26 16
JZQ08-2.0/18,BV φ0.8-2.0 26 23
JZQ2.0-4.0/18,AV φ2.0-4.0 18 30/32
JZQ4.0-7.0/18,AV φ4.0-7.0 18 44/50
JZQ7.0-12.0/18,AV φ7.0-12.0 18 47/40
JZQ12.0-20.0/18,AV φ12.0-20.0 18 70
JZQ0.8-4.0/5,AV φ0.8-4.0 5 23/30/32
JZQ4.0-10.0/5,AV φ4.0-10.0 5 42
JZQ4.0-10.0/18,BV φ4.0-10.0 18 42
JZQ10.0-20.0/18,BV φ10.0-20.0 18 70

Straightening machine through the straightening roll extrusion of bar to the change of straightness. There are generally two row of straightening roll, any number. There are also two roll straightener, rely on two roll (middle concave, hyperbola roll) the Angle of the change on the materials of different diameter straightening. Main types of pressure straightening machine, balance roll straightening machine and shoes roll straightening machine and so on.

1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts

1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts

1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts

1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts
