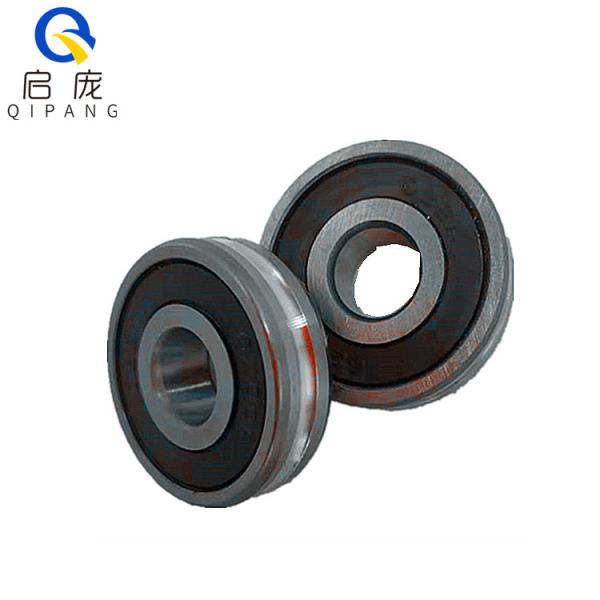

Bearing Core 3mm 3/18 Wire Straightener Rollers
Bearing Core 3mm 3/18 Wire Straightener Rollers
Bearing Core 3mm 3/18 Wire Straightener Rollers
Bearing Core 3mm 3/18 Wire Straightener Rollers
Specifications
Brand Name :
QIPANG
Model Number :
0.8-1.5mm 1.5-3mm
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
10
Price :
RMB/USD
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000/day
Delivery Time :
1-15 Working Day
Packaging Details :
cotton or wooden boxes
Product Keywords :
wheel straightening
Core Components :
Bearing
Key Selling Points :
Easy to Operate
Material :
Steel
Total weight :
1KG
Dimension size :
15mm*15mm*15mm
Description

5 rollers 0.8-1.5mm 1.5-3mm steel wire straightener 1/2 inch 3/18 wire straightened wheel

Model: JZQ--5/30 with a guide for the line between 0.8-4mm material oh..
(Note: two pieces: the 5 rounds, a total of 5 rounds according to customer requirements)
Specification: suitable for 0.8--4mm wires

School of linear material: low, medium and high carbon steel wire, copper wire, molybdenum wire, wire, wire. Welding wire, wire,

etc.
Diameter of straightening wheel is: 30mm
The wheels is smooth and no grooves.
Number of straightening wheel: 5 wheels
Straight line material form: single group: horizontal straightening device; combination: vertical or horizontal or pneumatic
straightening form.
The straightening wheel is separate to adjust, it is easy to find the centre.
Straightening device total quality: bare metal 6KG, even the packaging of about 8 kg.
The size of the straightening device is: 5 rounds of one: 165mm*110mm*33mm

Models represent:
Straightening machine type letter explanation: for example: J Z Q---5/30
JZQ--- straightener (first letter).
The number of 5------ wheels is 5;
Diameter of 30------ straightening wheel.
A------- points: A type straightening device is the overall opening and closing form; B is a single straightening wheel
independent movement adjustment; T is a special straightening device.
V------- is the groove of the straightening wheel; V, R, U and custom.

The wire straightener with 5rollers

The machine have 5 rollers. the diameter of rollers is 23mm, 30mm. can do U and V groove. suit 0.8-1.5mm wire diameter, 1.5-3mm wire diameter. There is the hole in the machine behand, you can install it to a plate.

No Product Model Wire diameter(mm) Roller number Roller diamter(mm) Note
1 JZQ0.1-0.3/38 A.V 0.1-0.3 38 7
2 JZQ0.3-0.5/34.A.V 0.3-0.5 34 12
3 JZQ0.5-0.8/26.A.V 0.5-0.8 26 16
4 JZQ0.8-2.0/18.A.V 0.8-2.0 18 23 customize 5,10,14,18,22,26 rollers
5 JZQ 0.8-4.0/18.A.V 0.8-4.0 18 30 customize 5,10,14,18,22 rollers
6 JZQ4.0-7.0/14.A.V 4.0-7.0 14 42 customize 10,18,22,26 rollers
7 JZQ4.0-10.0/5.A.V 4.0-10.0 5 42 customize 7.10,14,18,22,26 rollers
8 JZQ 4.0-20.0/14.A.V 4.0-20.0 14 42/50/70 7.14.10.18.22 rollers
