Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Specifications
Brand Name :
Texin
Place of Origin :
Guang Dong China
MOQ :
1
Price :
negotiation
Packaging Details :
Durable box
Delivery Time :
5-7 work days
Payment Terms :
TT ustd wechat paypal
Supply Ability :
1000000/per month
Model Number :
TX-CD100W
Type :
Wide band power amplifier
Outputimpedance :
50 Ohms
Gain :
50dbm
Frequencyrange :
0.1 GHz - 6.2GHz
Supplyvoltage :
28 V
Size :
250*150*25mm
Frequency Range :
1000MHz To 6200MHz
Warranty :
1 Year
Description
Block FPV Drone 100W Wide Band 1000-6000MHz Power Amplifier for Key Area Security
Product Overview

This broadband power amplifier is a high-performance RF power amplifier designed to meet the demanding requirements of modern wireless communications, radar, and drone countermeasures applications. Operating efficiently across a frequency range of 1000MHz to 6200MHz, this power amplifier module delivers exceptional power and gain, making it ideal for a wide range of RF amplification needs.

The amplifier features robust operation across a wide temperature range from -40°C to +65°C, ensuring reliable performance in various environmental conditions. With a 100W wattage rating and 50 dB gain, it provides substantial output power for enhanced signal strength and extended communication range while preserving signal integrity.

Key Features
  • Product Name: Broadband Power Amplifier
  • Linearity: High
  • Operating Temperature: -40 To +65℃
  • Warranty: 1 Year
  • Frequency Range: 1000MHz To 6200MHz
  • Supports 1000-6200MHz power amplifier applications
  • Compatible with 0dBm input power amplifier signals
  • Wide band power amplifier design for versatile use
Technical Specifications
No. Item Data Unit
1 Frequency 1000-6200 MHz
2 Test voltage 28-32 V
3 Current 9 A
4 Output 100 W
5 Gain 53 dB
6 Output stability 1 dB
7 Input stability 0-10 dB
8 Connector N/ Female
9 Output connector VSWR ≤1.30 (No power and VNA test)
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off

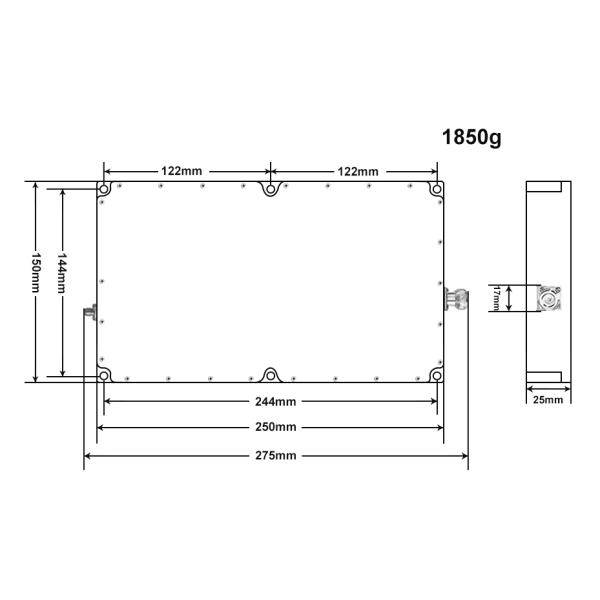

12 Out shell Size 250*150*25 mm
13 Mount hole 250*150 mm
14 Weight 1850 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK
Product Images
Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security Block FPV drone 100W Wide Band 1000-6000MHz Power Amplifier for key area security
Applications

The Texin Broadband Power Amplifier is essential for applications requiring high linearity, substantial gain, and reliable performance. It delivers exceptional amplification with 50dB gain and 100W wattage, making it ideal for robust signal boosting in telecommunications infrastructure, radar systems, satellite communication, and broadcasting equipment.

Its high linearity ensures minimal distortion, crucial for clear and accurate signal transmission in communication systems. The amplifier's compatibility with various power setups and durable construction makes it suitable for defense, aerospace, and field deployment applications.

Frequently Asked Questions
What is the minimum order quantity for the Texin Broadband Power Amplifier?
The minimum order quantity is 1 unit.
Where is the Texin Broadband Power Amplifier manufactured?
It is manufactured in Guang Dong, China.
What are the payment terms available for purchasing the Texin Broadband Power Amplifier?
We accept payment via TT, USTD, WeChat, and PayPal.
How long does the delivery take for the Texin Broadband Power Amplifier?
The delivery time is typically 5-7 working days.
How is the Texin Broadband Power Amplifier packaged for shipping?
The product is packaged in a durable box to ensure safe delivery.
What is the supply capacity of the Texin Broadband Power Amplifier?
We have a supply ability of up to 1,000,000 units per month.
Is the price of the Texin Broadband Power Amplifier fixed?
The price is negotiable depending on the order quantity and specifications.
