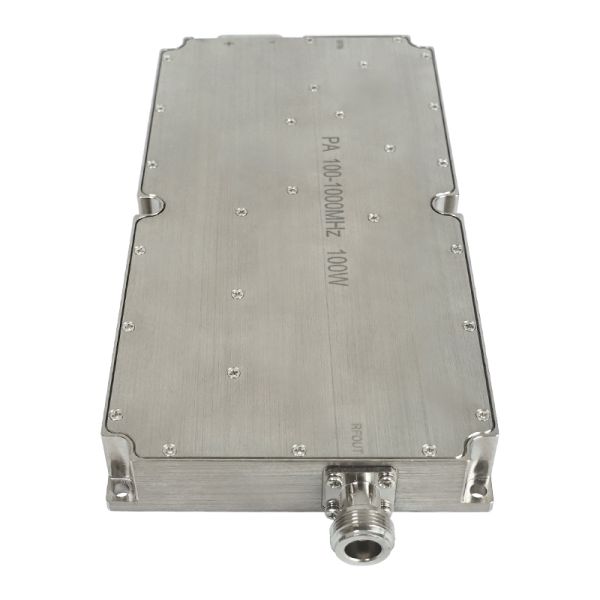

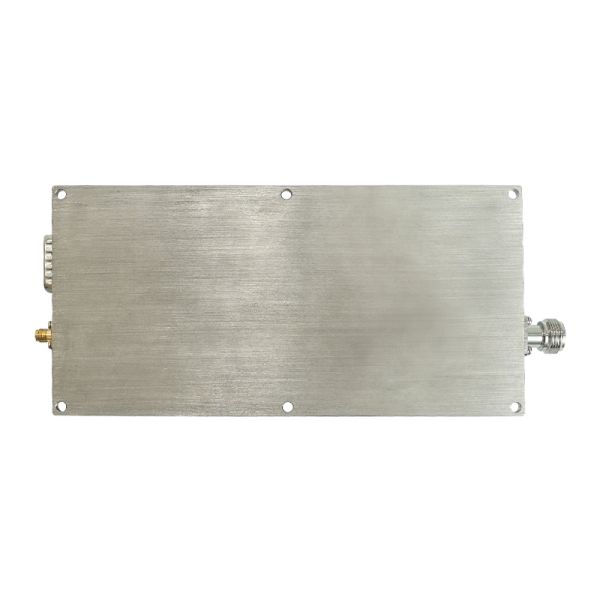

TX New Version N Output 100-1000MHz 100W PA Power Amplifier Module
This upgraded TX version RF power amplifier module features a wide frequency band from 100MHz to 1000MHz, stable 100W output power, and standard N-type connectors. Designed for RF transmission, signal amplification, radio communication, and experimental testing applications. Offers high gain, low noise, and durable construction for long-term industrial use.
Key Features
Upgraded TX Version: Optimized internal structure for enhanced stability and reduced heat generation
Wide Frequency Band: Covers 100MHz to 1000MHz for universal RF signal amplification
100W High Power Output: Stable continuous power output for extended operation
N-Type Output Interface: Standard RF connector for easy installation and signal connection
High Gain & Low Noise: Purified signal with minimal signal distortion
Industrial Grade Material: Anti-interference, shockproof, and durable for outdoor and laboratory applications
Technical Specifications
Parameter Symbol Min Typ Max Unit Remark
Operating Frequency BW 100 1000 MHz
Input Power Pin 0 dBm
Output Power CW Psat 50 51 52.5 dBm Continuous Wave
Power Gain Gp 51 dB @ Pin=2 dBm
Power Gain Flatness △Gp ±1.5 dB @ Pin=2 dBm
Input Return Loss S11 -15 dB
Operating Voltage Vdc 28 32 32 V
Current Consumption A 13 16 A @ Pout＞100W
RF Connector Input SMA, Female
RF Connector Output SMA, Female

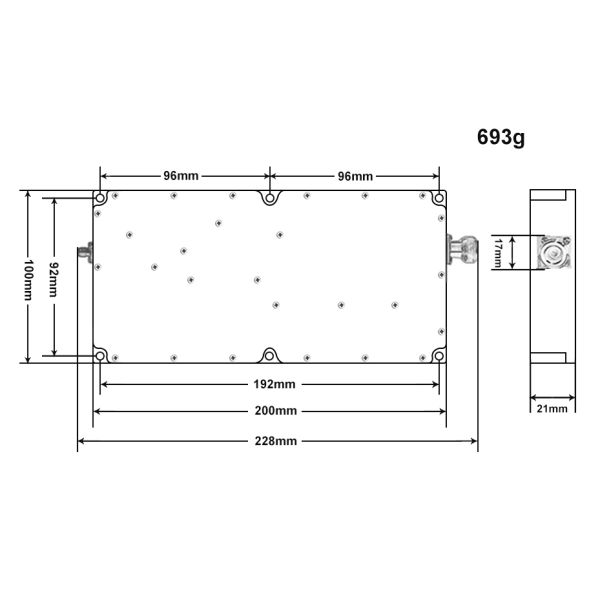

Size 200*100*100mm
Max Input Power PinMax ≤10 dBm

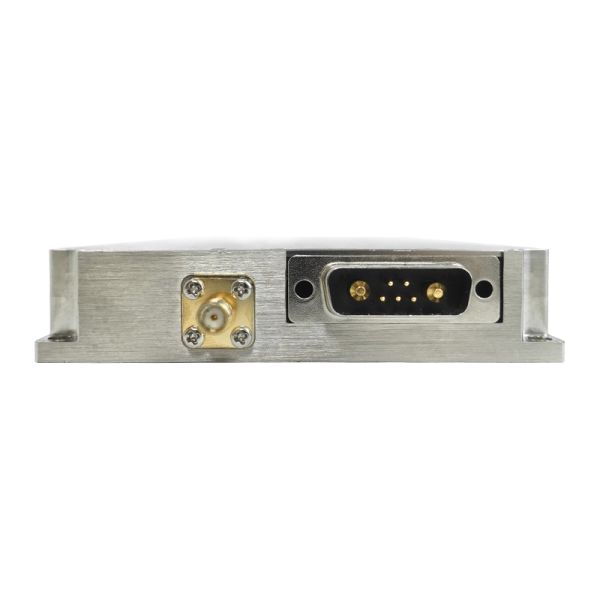

Interface Definition (7W2 Female)
Pin Function Description
VDD A1 Ground
GND A2 28Vdc
Current Sense 1 Analog voltage relative to Module's current@100mV/A
Temp Sense 2 Analog voltage relative to Module's Temperature@10mV/℃
Enable 3 Amplifier Enable: TTL Logic High(3.3V) (Internally Pulled-Low)
GND 4 Ground
