Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Specifications
Model Number :
TXH20006000100
Voltage :
28V
Power :
100W
MOQ :
1
Delivery Time :
In 2 work day
Connector :
N / Female
Payment Terms :
T/T,Paypal,Etc.
Frequency Range :
2-6ghz
Current :
10A
Price :
Negotiation
Weight :
815g
Supply Ability :
100,000pcs/month
Type :
Wide band power amplifier
Nominal Impedance :
50Ω
Certification :
SGS,ISO9001
Packaging Details :
Durable case or box
Place of Origin :
China
Applicaition :
Wireless signal， Security
Brand Name :
TX TELSIG
Gain :
53dbm
Description
Wide Band 2000-6000MHz 100W GPS Drone FPV UAV Signal Block RF Power Amplifier
This high-power 100W wideband 2000-6000MHz power amplifier serves as a core component for signal blocking systems. It effectively blocks signals across the 2000-6000MHz frequency range, including mobile phone, Wi-Fi, and various electronic device communications. With superior performance characteristics, it is ideal for security departments and locations requiring comprehensive signal blocking to ensure user safety and privacy protection.
Technical Specifications
  • Minimum 100W output power
  • 28V operating voltage with 0 dBm input
  • 2000-6000MHz frequency coverage
  • Lightweight design at 1495g
  • Compact dimensions: 220×130×21mm
Performance Parameters
Parameter Test Condition Minimum Value Representative Value Maximum Value Unit
Working Frequency Range 2000 6000 MHz
Saturation Output Power 100 W
Full-power Supply Current 10 12 A
Enable Level Logic High = On, Low = Off
Enable Control Voltage 28 V
Output Impedance 50 ohm
Environmental Specifications
Parameter Minimum Value Representative Value Maximum Value Unit
Module Operating Temperature -40 +85 ℃
Storage Temperature -40 +105 ℃
DC Power Supply Voltage 28 V
Important Usage Notes
  • Always connect the antenna before use - direct power-on without antenna may damage the module
  • Requires compatible power supply with appropriate voltage for proper operation
  • Optimal performance achieved in open spaces
  • Install cooling system for prolonged continuous operation

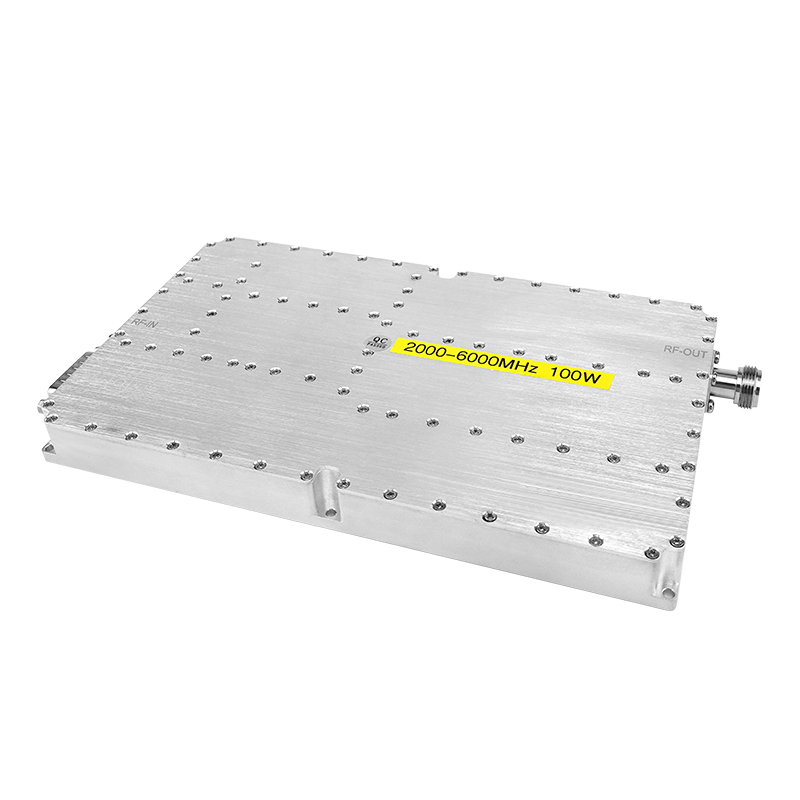

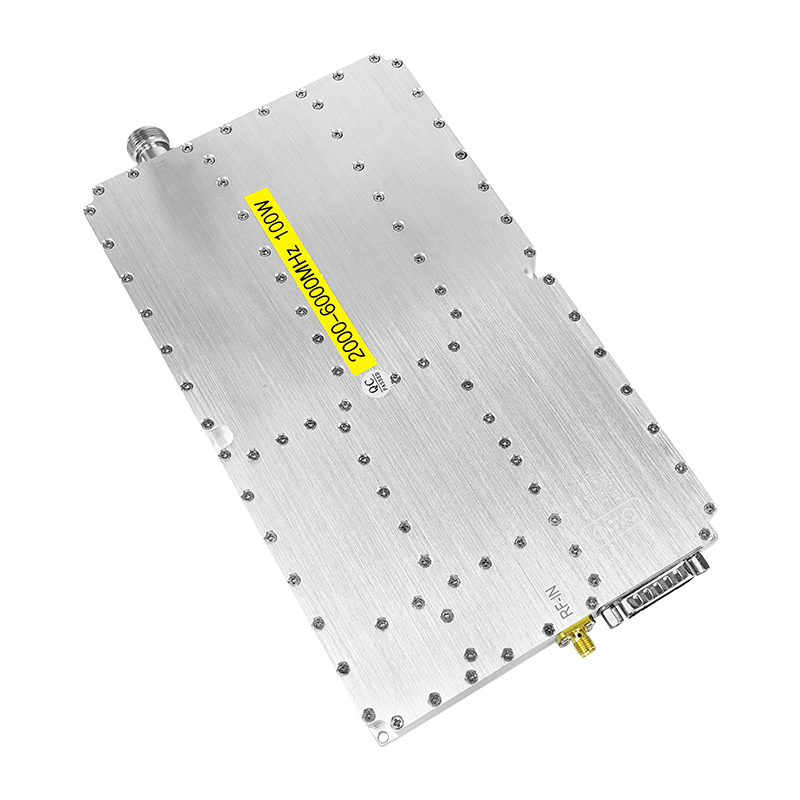

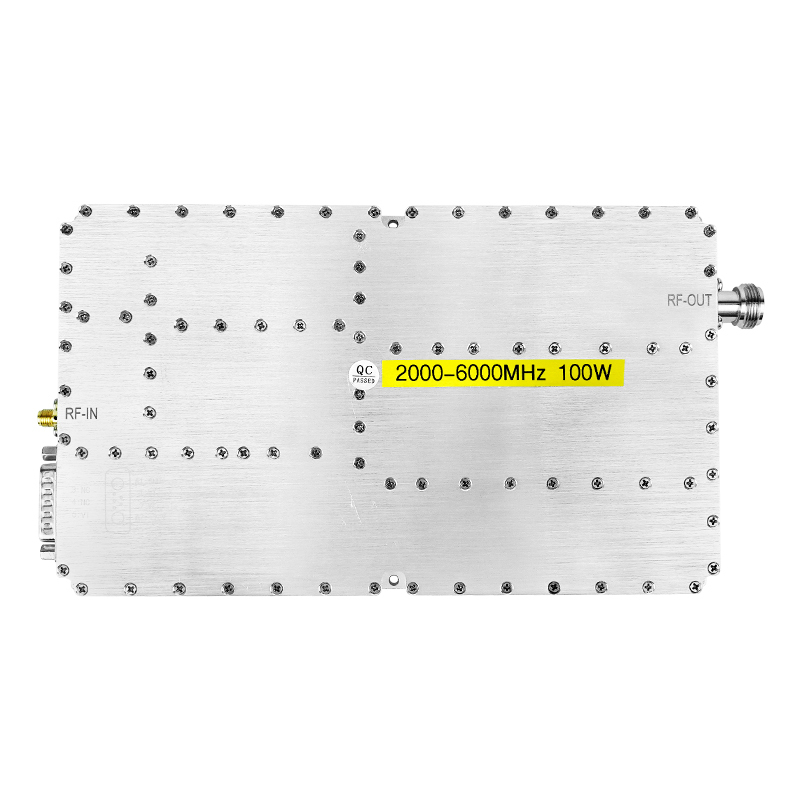

Product Image
Wide band 2000-6000MHz 100W GPS Drone FPV UAV signal block RF power amplifier
Frequently Asked Questions
Does it support customization?
Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.
Are you the manufacturer?
Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.
How do you handle shipping?
If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.
