Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Specifications
Brand Name :
TeXin
Model Number :
TX-C100VGHN
Certification :
SGS,ISO9001,ROHS
Place of Origin :
Shenzhen China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8 days

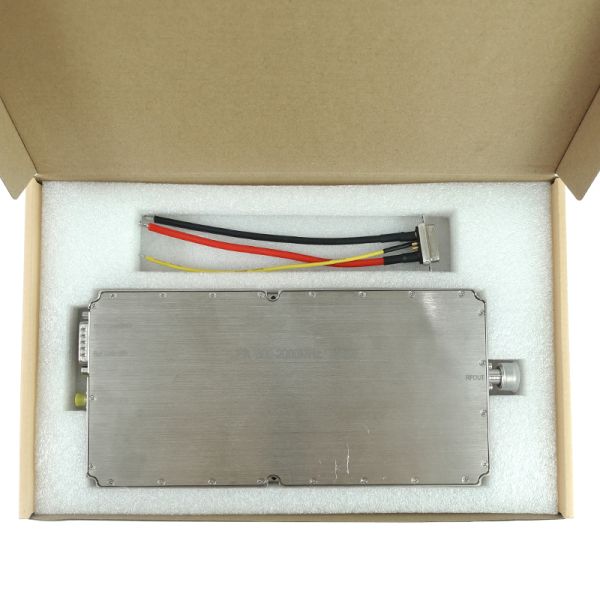

Packaging Details :
Durable case or box
Brand :
Texin
Power :
100W
Frequency :
300-2000MHz
Voltage :
28-34V
Gain :
47dbm
Type :
Broad band power amplifier
Connector :
N type

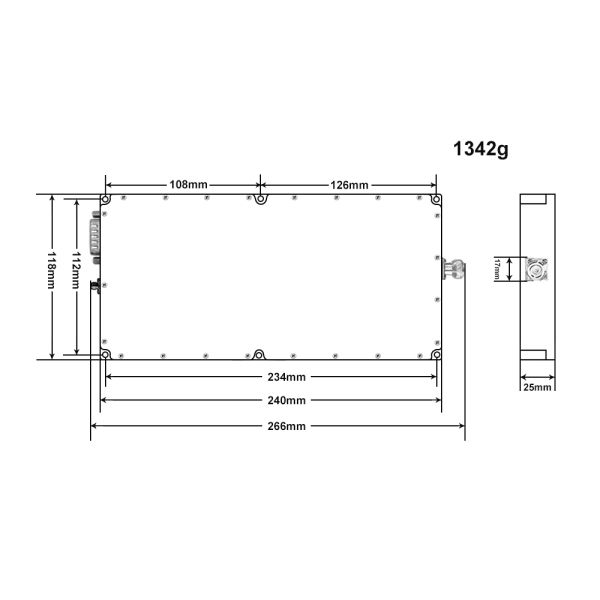

Size :
240*118*25MM
Weight :
1342g
Description
Input 5dBm 32V Voltage 100W 300-2700MHz 300-2000MHz RF Wide Band Power Amplifier
Product Overview

This 100W high-power broadband 300-2000MHz RF power amplifier is designed for government departments, public security, security systems, low-altitude control, and drone defense applications. It covers the full frequency bands of mainstream drone remote control, image transmission, and navigation systems, featuring high-gain input, high-power 100W output, ultra-wideband coverage, and exceptional stability. This amplifier serves as a core RF component for drone countermeasures, black flight control, and security in critical areas.

Key Features
  • High-gain input: Supports stable 0-5dBm input gain and operates under 28-32V voltage conditions
  • High-efficiency operation with low power consumption: Utilizes gallium nitride (GaN) design for long-term low-power operation across 300-2000MHz bandwidth
  • Precise countermeasures: Provides forced landings, returns, and loss of contact protection for airspace security
  • Robust construction: High-performance aluminum housing ensures efficient heat dissipation and long-term operational reliability
Technical Specifications
Description Symbol Min Typ Max Unit Remark
Operating Frequency BW 300 2000 MHz
Input Power Pin 0 dBm
Output Power CW Psat 50 50.5 53 dBm Continuous Wave
Power Gain Gp 50.5 dBm @ Pin=0 dBm
Power Gain Flatness △Gp ±1.5 dB @ Pin=0 dBm
Input Return Loss S11 -15 dB
Operating Voltage Vdc 28 32 32 V
Current Consumption A 10 13.5 A @ Pout＞100W
Connector Details

RF Connector Input: SMA, Female

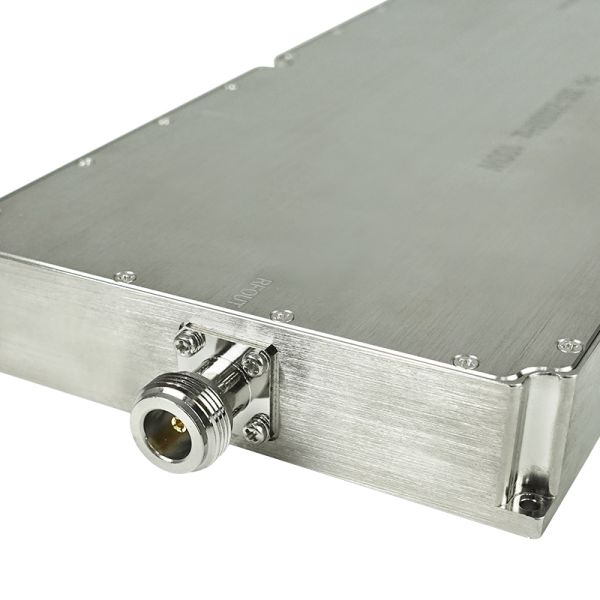

RF Connector Output: N, Female

Max Input Power: ≤5 dBm

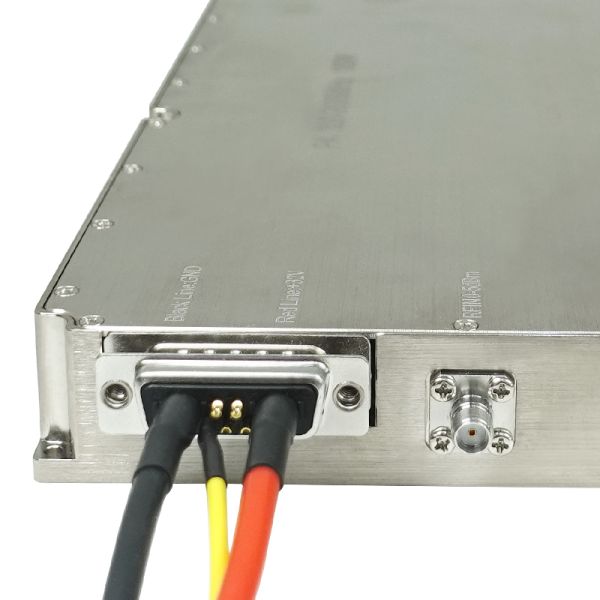

Interface Definition (7W2 Female)
Function Pin Description Remark
VDD A2 28Vdc
GND A1 Ground
Overcurrent protection 1 Normal operation: 0V
Overcurrent protection: +5V		 Overcurrent protection@25A
Over-temperature protection 2 Normal operation: 0V
Over-temperature protection: +5V		 Over-temperature protection@100℃
Enable 3 5V~Vdd: ON
0V: OFF
GND 4 Ground
State 5 Normal operation: 0V
State protection: +5V
Applications
  • Security in key areas and critical infrastructure
  • No-fly zone protection for airports, prisons, and government facilities
  • Vehicle-mounted and fixed anti-drone systems
  • Security integration projects
  • Airspace security for large-scale events, competitions, and industrial areas
  • OEMs requiring customized jamming modules
Product Images
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
Input 5dBm 32V Voltage 100W 300-2700Mz 300-2000MHz RF wide band power amplifier
After-Sales Service
  • 1-year warranty on purchased Texin products
  • Includes comprehensive technical specifications and user manual
  • Technical support provided after purchase
Frequently Asked Questions
How much does this drone signal jammer module cost?

Please contact us for the latest pricing. We use tiered pricing; the more you buy, the better the value for money.

What is the minimum purchase quantity?

One order is supported; free samples are not available.

What is the delivery time?

Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
