300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
Specifications
Model Number :
TXH20006000100
Voltage :
28V
MOQ :
1
Delivery Time :
In 2 work day
Connector :
N / Female
Payment Terms :
T/T,Paypal,Etc.
Frequency Range :
2400-2500MHz
Current :
25A
Price :
Negotiation
Weight :
1161g
Power :
300W
Supply Ability :
100,000pcs/month
Type :
Jammer module
Certification :
SGS,ISO9001
Packaging Details :
Durable case or box
Place of Origin :
China
Applicaition :
Wireless signal， Security
Nominal Impedance :
50Ω
Brand Name :
TX TELSIG
Gain :
55dbm
Description
300W WiFi 2.4GHz Anti-Drone Radar System RF Module
This 300W 2.4GHz high-power RF module serves as the core hardware for anti-drone radar defense systems. Designed to interfere with 2.4GHz WiFi remote control and video transmission signals of unauthorized drones, it effectively blocks illegal aerial surveillance, prevents privacy leakage, and establishes reliable airspace safety barriers for sensitive areas. Supports seamless integration into fixed anti-drone stations, vehicle-mounted C-UAS systems, and radar early-warning defense equipment.
Technical Specifications
  • 300W output with 28V power supply
  • No signal source included
  • 2400-2500MHz frequency coverage
  • Lightweight design at 1161g

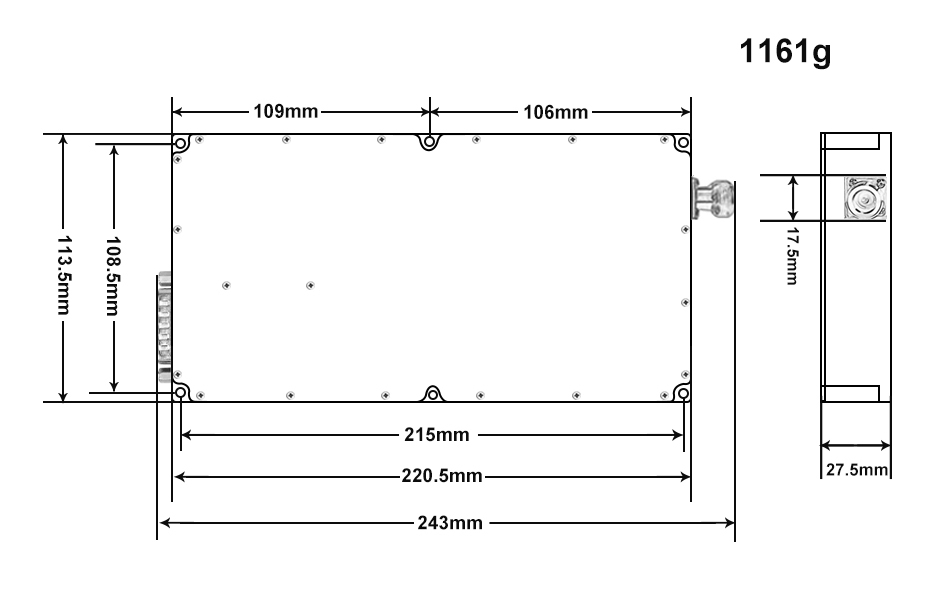

  • Compact dimensions: 220.5×113×27.5mm
Performance Parameters
Parameter Test Condition Minimum Value Representative Value Maximum Value Unit
Working Frequency Range 2400 2500 MHz
Saturation Output Power 300 W
Full-power Supply Current 25 30 A
Enable Level Logic High = On, Low = Off
Enable Control Voltage 28 V
Output Impedance 55 ohm
Environmental Specifications
Parameter Minimum Value Representative Value Maximum Value Unit
Module Operating Temperature -40 +85 ℃
Storage Temperature -40 +105 ℃
DC Power Supply Voltage 28 V
Important Usage Notes
  • Always connect the antenna before use - direct power-on without antenna may damage the module
  • Requires compatible power supply with appropriate voltage for proper operation
  • Optimal performance achieved in open spaces
  • Install cooling system for prolonged continuous operation

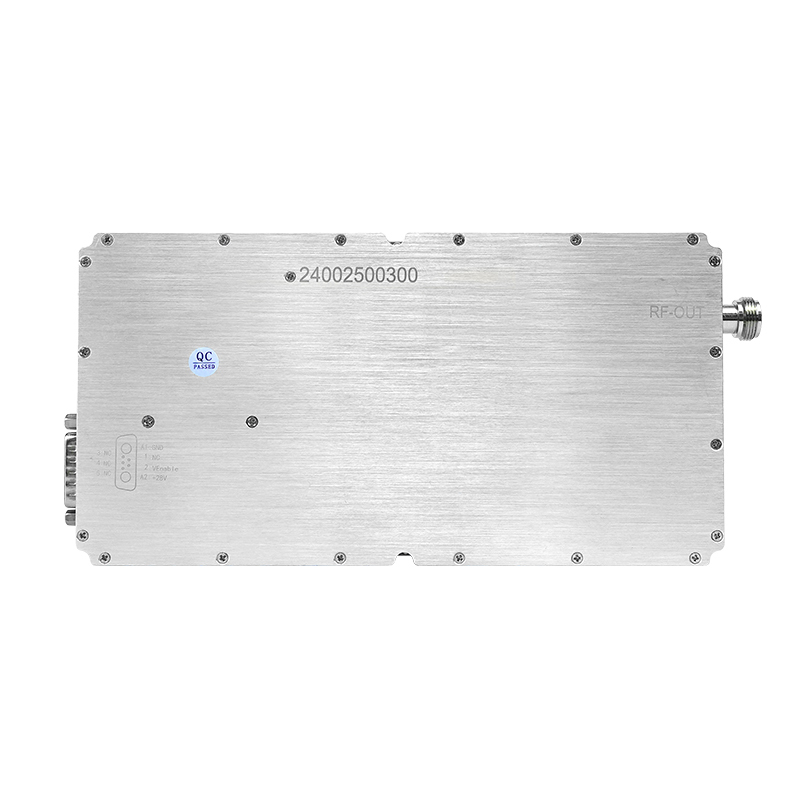

Product Image
300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection
Frequently Asked Questions
Does it support customization?
Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.
Are you the manufacturer?
Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.
How do you handle shipping?
If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.
