XRay Inspection Machine Programmable Process BGA PCB Through Hole Inspection
XRay Inspection Machine Programmable Process BGA PCB Through Hole Inspection
Specifications
Model Number :
IL-3000
Packaging Details :
Wooden case
Defect Classification :
Automatic classification and sorting of defects
Type :
Microfocus
Brand Name :
WELLMAN
Product Type :
Automated X Ray Inspection System
MOQ :
1
Max tube voltage :
90kV
Place of Origin :
CHINA
Max tube current :
200μA
Operating System :
Windows-based operating system
Focal spot size :
5μm
Payment Terms :
T/T
Certification :
CE, FDA
Description

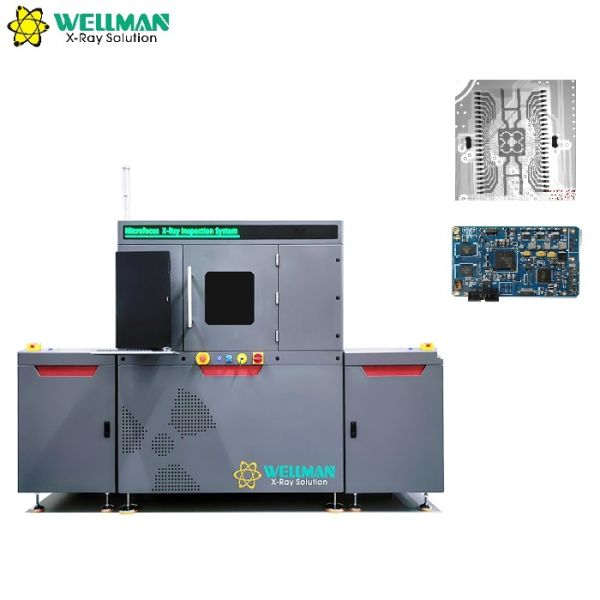

WELLMAN In-line Industrial Microfocus X-Ray Inspection System IL-3000
Advanced SMT PCB inspection system featuring a 10,000-hour maintenance-free X-ray tube and 6-axis motion control for precision automated inspection.
Key Advantages
  • Maintenance-free operation: Closed-type X-ray tube with lifetime exceeding 10,000 hours
  • Intuitive navigation: Automatic table movement to clicked locations
  • Adjustable width: Belt transmission with lead screw & guide rail adjustment (max 620mm)
  • Precision motion: 6-axis system with servo motors (X-ray tube and FPD move in sync)
  • Automation ready: Customizable inspection procedures for high-volume production
  • High-definition imaging: 5" HD digital flat panel detector (FPD) for superior image quality
  • User-friendly: Simple operation with minimal training required (2 hours)
Technical Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Brand IRay
Effective area 130mm*130mm
Pixel size 85μm
Resolution 1536*1536
Frame rate 20fps
Tiltable angle 60°
Safety Features
  • Radiation leakage: No leakage (≤1μSv/h, international standard)
  • Transparent lead glass observation window for safe viewing
  • Window and back door safety interlock system
  • Electromagnetic safety switch locks when X-ray is active
  • Emergency stop button located near operation position
  • Automatic tube protection when software is inactive
Software Capabilities
Function Module Operation
X-ray tube control Mouse-click operation with real-time voltage/current display and adjustment
Image effect adjustment Adjustable brightness, contrast and gain for optimal imaging
Product list Save and recall inspection parameters for repeat products
Navigation window Click-to-move functionality for precise positioning
Voids rate measurement Automatic calculation with NG/OK indication (red/green)
Other measurement functions Distance, angle, radius, perimeter, and area calculations
Automatic inspection Manual setting, array, and automatic identification modes
Application Examples
XRay Inspection Machine Programmable Process BGA PCB Through Hole Inspection XRay Inspection Machine Programmable Process BGA PCB Through Hole Inspection
Working Principle
XRay Inspection Machine Programmable Process BGA PCB Through Hole Inspection
