Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Specifications
Brand Name :
WELLMAN
Model Number :
X-Ray 6800
Certification :
CE,FDA
Place of Origin :
China
Payment Terms :
T/T
Description
Key Advantages
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
  • New generation 5" HD digital flat panel detector (FPD)
  • FPD tilts up to 60° without sacrificing magnification
  • Automatic navigation window - table moves to clicked location
  • 530×530mm table with 10KG load capacity
  • Speed adjustable 5-axis linkage system
  • Programmable inspection procedures for automated batch inspection
  • Intuitive operation with only 2 hours training required
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Effective area 130mm×130mm
Pixel size 85μm
Resolution 1536×1536
Frame rate 20fps
Tiltable angle 60°
Table Specifications
Size 530mm×530mm
Detectable area 500mm×500mm
Max load 10kg
Equipment Specifications
Magnification Geometry 200X System 1500X
Inspection speed Max 3.0s/point
Dimensions 1360mm (L) × 1365mm (W) × 1730mm (H)
Weight 1200kg
Power supply AC110-220V 50/60HZ
Max power 1500W
Industrial PC I5 CPU, 8G RAM, 500GB SSD
Displayer 24" HDMI LCD

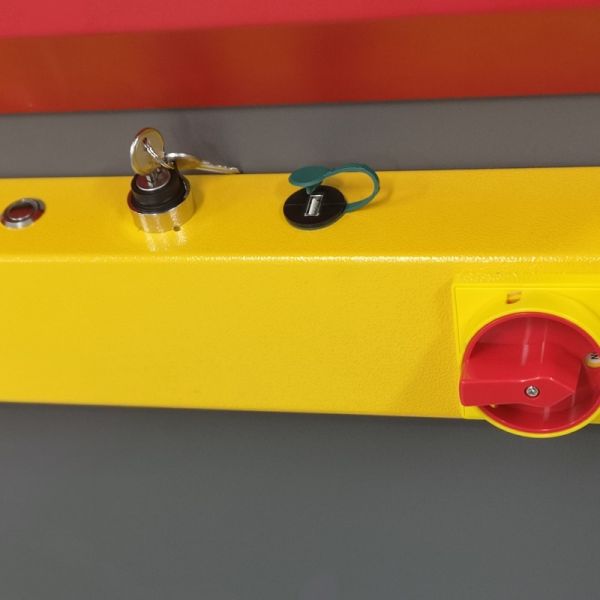

Safety Features
  • Radiation leakage: No leakage, meeting international standard (≤1μSv/h)
  • Transparent lead glass observation window for safe internal viewing
  • Window and back door safety interlock system
  • Electromagnetic safety switch locks when X-ray is active
  • Emergency stop button located near operation position
  • Automatic tube protection when leaving software interface
Software Capabilities
Function Module Operation
X-ray tube control Mouse-click operation with real-time voltage/current display and adjustment
Status bar Visual indication of interlock, pre-heat and X-ray status
Image effect adjustment Customizable brightness, contrast and gain settings
Product list Save and recall inspection parameters for efficiency
Navigation window Click-to-move functionality for precise positioning
Motion axis status Real-time coordinate display
Inspection result Organized display of measurement results with pass/fail indicators
Speed control Adjustable movement speed for each axis
Measurement Functions
Voids rate measurement Automatic calculation with adjustable parameters
Distance measurement Baseline and vertical distance calculation
Distance rate Percentage ratio measurement for through-hole soldering
Angle measurement Precise angle calculation between points
Radius measurement For round components like solder balls
Perimeter measurement For square components with length/width/area data


Automated Inspection Modes

1.Manual setting: Custom inspection point positioning

2.Array: Automated inspection of regular grid patterns

3.Automatic identification: Feature-based position recognition

Application Examples
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
BGA Solder Bridge
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
BGA Solder Voids
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
PCB Through-Hole
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
IC Voids & Gold Wire
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
LED Solder Voids
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
LED Gold Wire Crack
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Capacitor
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Inductor
Automated X-ray inspection System with 530*530mm Table 10KG Load Capacity and 200μA Tube Current
Sensor
