High Precision Inline X Ray Inspection for Electronic Components Defect Detection
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Specifications
Description
High Precision Inline X Ray Inspection for Electronic Components Defect Detection

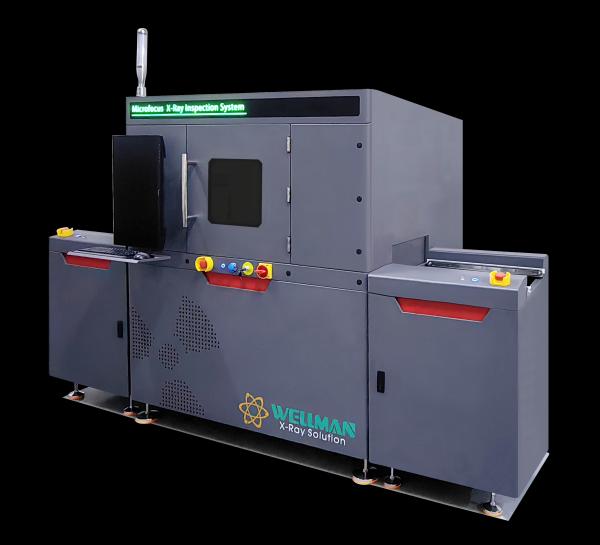

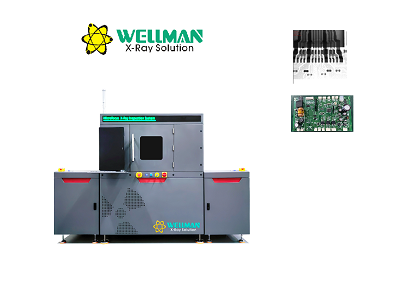

In-line Microfocus X-ray Inspection System

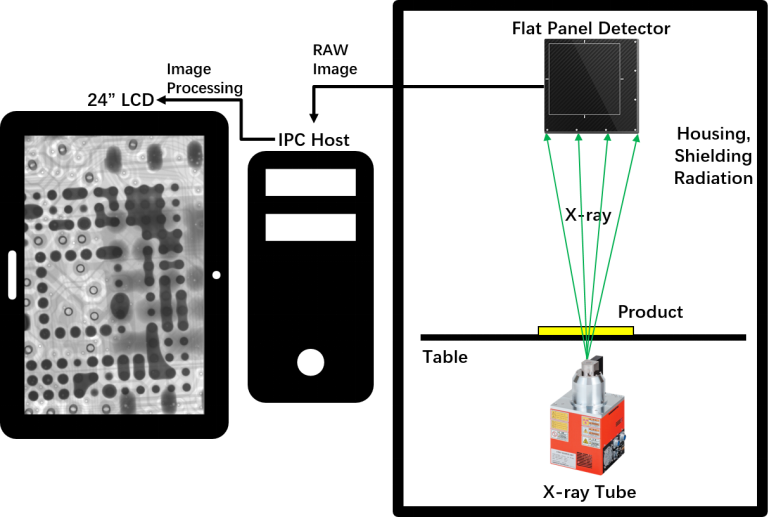

Working Principle
High Precision Inline X Ray Inspection for Electronic Components Defect Detection

The system uses a microfocus X-ray tube to emit rays through the target product. A high-definition digital flat panel detector captures images. Real-time image processing and display are completed via an industrial PC. Radiation shielding ensures full operational safety.

Core Advantages
  • Closed X-ray tube with over 10,000 hours service life and maintenance-free design
  • New generation 5-inch high-definition digital flat panel detector
  • Automatic navigation window supports one-click positioning
  • Belt transmission with screw and rail width adjustment up to 620mm
  • Six-axis motion system with servo motors for synchronized movement
  • Customizable inspection programs for high-volume automated detection
  • Simple operation with only 2 hours required for operator training
Hardware Specifications
Item Details
X-ray Source Closed microfocus, 90kV, 200μA, 5μm focal spot
Detector IRay 130mm×130mm, 85μm pixel, 1536×1536 resolution
Movement Servo motors, six-axis synchronous control
Inspection Area L520mm, W80-430mm adjustable
Speed Up to 3.0 seconds per inspection point
Safety Radiation ≤1μSv/h, interlock, emergency stop, lead glass window
Environment AC110-220V 50/60Hz, max 3000W
Software Functions
  • Full mouse and keyboard control for all operations
  • Real-time X-ray parameter adjustment and status monitoring
  • Image brightness, contrast and gain fine-tuning
  • One-click navigation and automatic table positioning
  • Automatic void rate calculation and defect judgment
  • Multi-type measurement: distance, angle, radius, perimeter
  • Batch automatic inspection via point or array mode
Typical Applications

BGA solder inspection, PCB through-hole detection, IC and LED assembly check, capacitor and inductor testing, automotive electronics, cable and fiberglass analysis.

High Precision Inline X Ray Inspection for Electronic Components Defect Detection
BGA Solder Bridge
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
BGA Solder Voids
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
PCB Through-Hole
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
IC Voids and Gold Wire
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
LED Solder Voids
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
LED Gold Wire Crack
High Precision Inline X Ray Inspection for Electronic Components Defect Detection

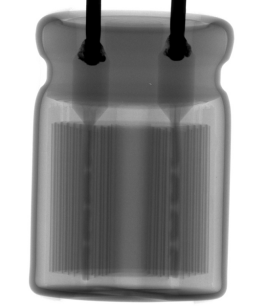

Capacitor
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Inductor
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Sensor
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Thyristor Surge Suppressors
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Fiberglass
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Cable
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Diode
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Steel Pipe Welding Gap
High Precision Inline X Ray Inspection for Electronic Components Defect Detection
Automobile Electronics
