Automatic X-ray Inspection Equipment with Simple and Quick Operation
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Specifications
Brand Name :
WELLMAN
Model Number :
X-Ray X-6000
Certification :
CE,FDA,ISO9001
Place of Origin :
China
MOQ :
1
Price :
26000-40000 dollars
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Description

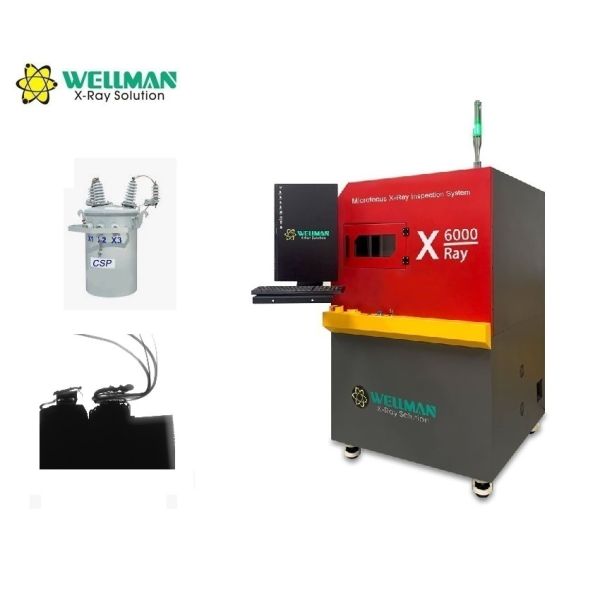

Automatic X-ray Inspection Equipment with Simple and Quick Operation
Advanced automatic X-ray inspection system designed for efficient and precise quality control in industrial manufacturing applications.
Key Advantages
  • Automatic navigation window - table moves to your click location
  • Hamamatsu tubes ensure extended lifespan and maintenance-free operation
  • 13×13 cm high-definition large-area digital flat panel detector
  • 420×420mm table with 15KG load capacity
  • Programmable inspection procedures for automated large-volume inspection
  • Easy operation with quick defect identification - only 2 hours training required
Working Principle
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max Tube Voltage 90kV (optional)
Max Tube Current 200μA
Focal Spot Size 5μm
Function Auto preheat
Flat Panel Detector
Effective Area 130mm×130mm
Pixel Size 85μm
Resolution 1536×1536
Frame Rate 20fps
Table
Size 420mm×420mm
Detectable Area 400mm×400mm
Max Load 15kg
Equipment
Magnification Geometry 150X | System 1500X
Inspection Speed Max 3.0s/point
Dimensions 1100mm (L) × 1000mm (W) × 1600mm (H)
Weight 1000kg
Power Supply AC110-220V 50/60HZ
Max Power 1300W
Industrial PC Intel I5 CPU, 8G RAM, 240GB SSD
Displayer 24" HDMI LCD
Safety Features
  • Radiation Leakage: ≤1μSv/h
  • Lead Glass Observation Window: Transparent lead glass window shields radiation to observe internal status
  • Window and Back Door Safety Interlock: X-ray tube powers off immediately when window or door opens; prevents X-ray activation when open
  • Electromagnetic Safety Switch: Locks when X-ray is on, preventing window opening
  • Emergency Stop: Located next to operation position for immediate power cutoff
  • Tube Protection: Software prevents leaving without closing X-ray tube
Software Capabilities
Function Module Operation
X-ray Tube Control Mouse-click activation with real-time voltage/current display and adjustment controls
Status Bar Displays interlock status, pre-heat status, and X-ray status with red/green indicators
Image Effect Adjustment Adjustable brightness, contrast and gain for optimal image quality
Product List Save and recall inspection parameters for improved efficiency
Navigation Window Click-to-move functionality with camera-guided positioning
Motion Axis Status Real-time coordinate display
Inspection Result Organized display of measurement results including voids rate, distance, area with OK/NG indicators
Speed Control Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement Automatic calculation with adjustable parameters for precise results
Other Measurement Functions Distance, distance rate, angle, radius, perimeter, and area calculations
Automatic Inspection Manual setting, array configuration, and automatic identification modes
Application Examples
Automatic X-ray Inspection Equipment with Simple and Quick Operation
BGA Solder Bridge
Automatic X-ray Inspection Equipment with Simple and Quick Operation
BGA Solder Voids
Automatic X-ray Inspection Equipment with Simple and Quick Operation
PCB Through-Hole
Automatic X-ray Inspection Equipment with Simple and Quick Operation
IC Voids and Gold Wire
Automatic X-ray Inspection Equipment with Simple and Quick Operation
LED Solder Voids
Automatic X-ray Inspection Equipment with Simple and Quick Operation
LED Gold Wire Crack
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Capacitor
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Inductor
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Sensor
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Thyristor Surge Suppressors
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Fiberglass
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Cable
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Diode
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Steel Pipe Welding Gap
Automatic X-ray Inspection Equipment with Simple and Quick Operation
Automobile Electronics
