Electronic Components Inspection Equipment with 400×400mm Large Stage and 10kg Load Capacity

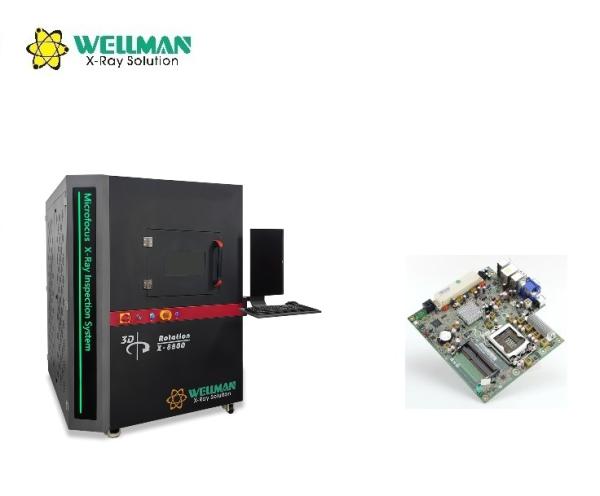

X8800 X-ray Inspection Equipment

Advanced 3D/CT inspection system featuring a 400×400mm large stage with 10kg load capacity for comprehensive electronic components analysis.

Key Advantages
  • Open type X-ray tube with extended service life
  • New generation 5" HD digital flat panel detector
  • FPD tilts 60° and rotates 360° for optimal positioning
  • Automatic navigation window - table moves to clicked positions
  • 400×400mm table with 10kg load capacity
  • Speed adjustable 5-axis linkage system
  • Optional ACT and PCT 3D CT functionality
  • Easy operation with minimal training required (2 hours)
Hardware Specifications
X-ray Source
Type Open, microfocus
Maximum Tube Voltage 160kV
Maximum Tube Current 500μA
Target Power 15W
Tube Power 65W
Focal Spot Size 1μm
Flat Panel Detector
Tiltable Angle 60°
Rotation Angle 360°
Pixel Size 49.5μm
Resolution 1536×1536
Frame Rate 20fps
Table Specifications
Size 400mm×400mm
Detectable Area 400mm×400mm
Maximum Load 10kg
Equipment Details
Geometry Magnification 2500X
Inspection Speed Maximum 3.0s/point
Dimensions 1550mm (L) × 1600mm (W) × 1700mm (H)
Weight 1800kg
Power Supply AC110-220V 50/60HZ
Maximum Power 1800W
Industrial PC I7 CPU, 16G RAM, 240GB SSD+1TB HDD
Display 24" HDMI LCD
Safety Features
Radiation Leakage No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window Transparent lead glass shields radiation for internal status observation
Window and Back Door Safety Interlock X-ray tube powers off immediately when opened; prevents X-ray activation when open
Electromagnetic Safety Switch Locks when X-ray is active
Emergency Stop Located near operation position for immediate power cutoff
Tube Protection Prevents software exit without closing X-ray tube
Working Principle
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
X8800 Semiconductor Inspection Equipment Working Principle
Software Capabilities
Core Functions
Function Module Operation
X-ray Tube Control Mouse-click activation with real-time voltage/current display and adjustment
Status Bar Visual indication of interlock, pre-heat, and X-ray status
Image Effect Adjustment Brightness, contrast and gain controls for optimal imaging
Product List Save and recall inspection parameters for efficiency
Navigation Window Click-to-move table positioning with camera guidance
Motion Axis Status Real-time coordinate display
Inspection Result Organized display of measurement data (voids rate, distance, area)
Speed Control Adjustable movement speed (slow, normal, fast)
Voids Rate Measurement
Feature Description
Automatic Calculation Rectangle-based solder ball analysis with automatic void detection and NG/OK indication
Parameters Adjustment Customizable grayscale threshold, pixel, contrast, and size filtering
Manual Void Addition Polygon or free-form drawing for custom void calculation
Parameter Saving Store and recall detection parameters for consistent results
Additional Measurement Functions
Function Application
Distance Vertical distance measurement from point to baseline
Distance Rate Through-hole soldering rate calculation via percentage ratio
Angle Angle measurement between defined rays
Radius Circular component measurement (solder balls) for circumference, area, radius
Perimeter Square component measurement for length, width, and area
Automated Inspection Modes
Mode Description
Manual Setting Custom inspection point placement with automatic imaging
Array Grid-based automatic inspection from minimal setup parameters
Automatic Identification Feature-based position recognition with automated measurement and imaging
Application Examples
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
BGA Solder Bridge
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
BGA Solder Voids
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
PCB Through-Hole
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
IC Voids and Gold Wire
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
LED Solder Voids
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
LED Gold Wire Crack
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Capacitor
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Inductor
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Sensor
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Thyristor Surge Suppressors
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Fiberglass
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Cable
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Diode
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Steel Pipe Welding Gap
X-ray Inspection Equipment with a 400*400mm Large Stage and 10kg Load Capacity for Electronics
Automotive Electronics
