Nanoscale 3D Xray Inspection Equipment For PCBA Boards CE Certified
Nanoscale 3D Xray Inspection Equipment For PCBA Boards CE Certified
Specifications
Brand Name :
WELLMAN
Model Number :
Ultra-One 3D/CT
Certification :
CE/FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
X-ray Tube Type :
Closed-tube X-ray source
Tube voltage range :
20-160 KV
Pixel matrix :
1536×1536
Equipment size :
1800 mm×1800 mm×2300 mm （Length × width × height）
Pixel size :
100 μm
Description

1.Equipment characteristics:
2D/2.5D imaging can achieve multi-axis linkage imaging function for ROI;
With imaging enhancement function; With automatic analysis function;
With image analysis function; With scanning programming function;
Optional rotating disk imaging module for more Angle observation;
3D imaging detection is realized for local devices on the whole board.
For small devices, optional turntable and cone-beam CT imaging functions are available.


2.Detection application:
Large size PCBA board
Internal structural quality of semiconductor packaging products
SMT welding quality of various types of solder joints, such as open welding, whether there is infiltration, solder amount, offset, foreign body, bridge, pin and so on


3.Basic Parameters

X-ray Source Parameters

Nanoscale 3D Xray Inspection Equipment For PCBA Boards CE Certified

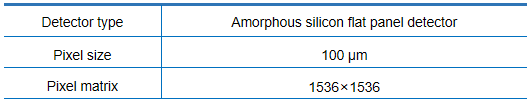

Detector parameter

Nanoscale 3D Xray Inspection Equipment For PCBA Boards CE Certified

Equipment Performance Parameters Details

Nanoscale 3D Xray Inspection Equipment For PCBA Boards CE Certified
