Automated X-Ray Inspection System
In-line Microfocus X-Ray Inspection System IL-3000 designed for easy operation requiring only two hours of training.
Key Advantages
  • Japan Hamamatsu X-ray tube - the world's best closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
  • New generation IRay 5" HD digital flat panel detector (FPD)
  • Automatic navigation window - table moves to where you click
  • Belt transmission with width adjustment by lead screw & guide rail, max width 620mm
  • 6-axis motion system equipped with servo motor, X-ray tube and FPD move in sync
  • Customizable inspection procedures for automated high-volume inspection
  • Easy to operate with quick defect identification - only 2 hours training required
Hardware Specifications
X-ray Source
Brand Japan Hamamatsu
Type Closed, microfocus
Max Tube Voltage 90KV
Max Tube Current 200μA
Focal Spot Size 5μm
Function Auto preheat
Flat Panel Detector
Brand IRay
Effective Area 130mm × 130mm
Pixel Size 85μm
Resolution 1536 × 1536
Frame Rate 20fps
Tiltable Angle 60°
Inspection System
Transmission Belt
Motor servo motor
Detectable Area Length 520mm, width 80-430mm adjustable
Max Load 10kg
Magnification Geometry 200X | System 1500X
Inspection Speed Max 3.0s/point
Dimensions 2600mm (L) × 1300mm (W) × 1800mm (H)
Host Machine Dimensions 1400mm (L) × 1300mm (W) × 1800mm (H)
Weight 2200kg
Power Supply AC110-220V 50/60HZ
Max Power 3000W
Industrial PC I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer 24" HDMI LCD
Safety Features
Radiation Leakage No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window Transparent lead glass window shields radiation to observe the inner status
Window and Back Door Safety Interlock X-ray tube powers off immediately when window or back door is opened
Electromagnetic Safety Switch Locks when X-ray is on, preventing observation window opening
Emergency Stop Located next to operation position, press to power off
Tube Protection Software prevents user exit without closing X-ray tube
Software Functions
Function Module Operation
X-ray Tube Control Mouse-click operation for on/off control with real-time voltage/current display and adjustment
Status Bar Displays interlock status, pre-heat status, and X-ray status with red/green flashing indicators
Image Effect Adjustment Free adjustment of brightness, contrast and gain for optimal image quality
Product List Save and recall inspection parameters for improved efficiency with same products
Navigation Window Click anywhere in camera photo to automatically move table to selected position
Motion Axis Status Real-time coordinate display
Inspection Result Ordered display of measurement results (voids rate, distance, area, etc.)
Speed Control Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement Automatic calculation with rectangle selection, parameter adjustment, and manual void addition capabilities
Other Measurement Functions Distance, distance rate, angle, radius, and perimeter measurements for comprehensive analysis
Automatic Inspection Manual setting, array configuration, and automatic identification of inspection points
Working Principle
Automated X Ray Inspection designed for easy operation requiring only two hours

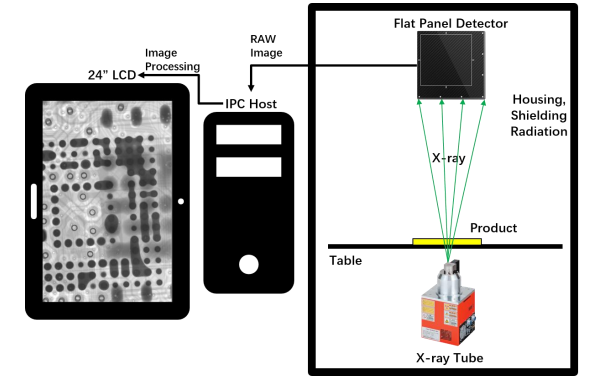

Working Principle Diagram of X-Ray Inspection System
Application Examples
Automated X Ray Inspection designed for easy operation requiring only two hours

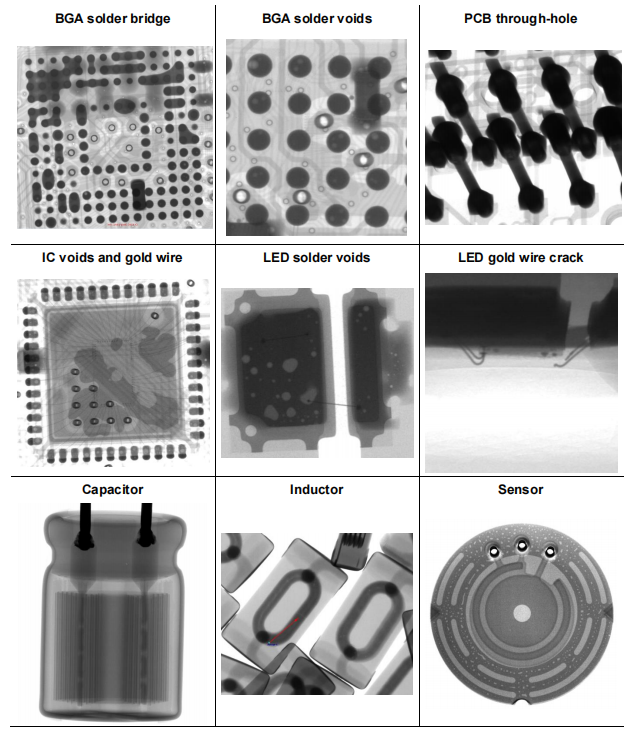

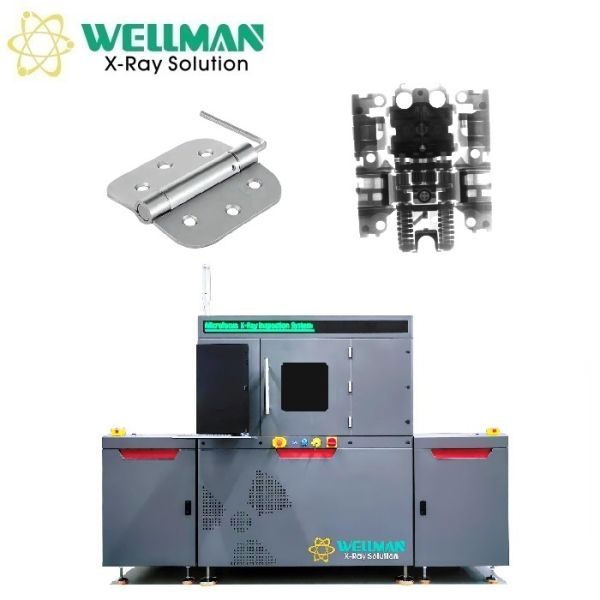

Application Example of X-Ray Inspection System
Automated X Ray Inspection designed for easy operation requiring only two hours

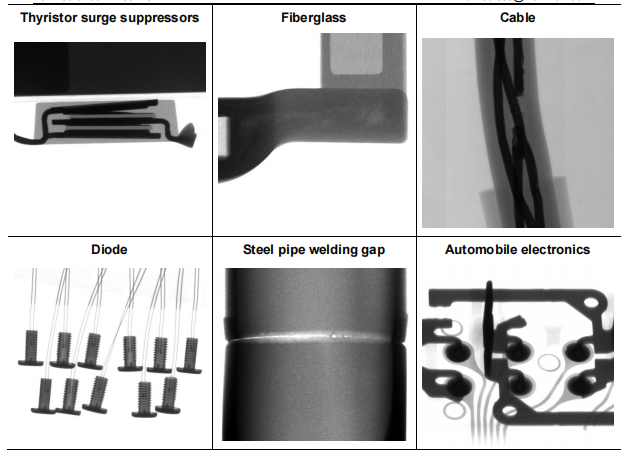

Additional Application Example of X-Ray Inspection System
