In line X Ray Inspection System Defect Detection Fast Inspection Speed
In line X Ray Inspection System Defect Detection Fast Inspection Speed
Specifications
Brand Name :
WELLMAN
Model Number :
IL-3000
Certification :
CE, FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Wooden case
Type :
Microfocus
Max tube voltage :
90kV
Max tube current :
200μA
Focal spot size :
5μm
Detectable area :
Length 520mm, width 80-430mm adjustable
Description
In line X Ray Inspection System Defect Detection Fast Inspection Speed
Product Overview

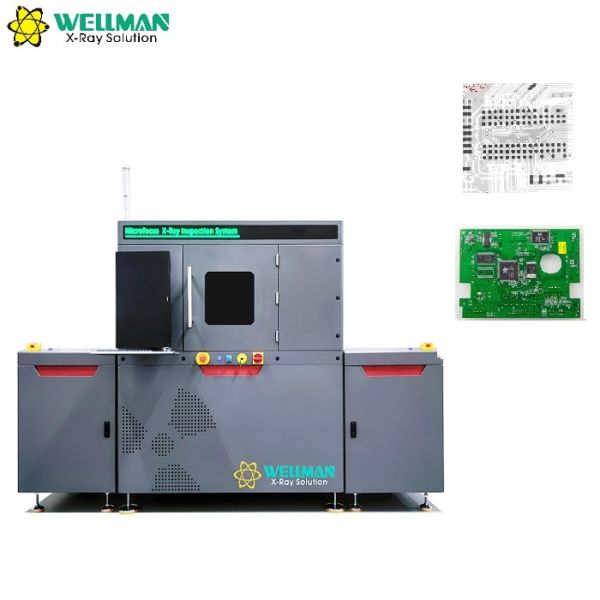

In-line Microfocus X-Ray Inspection System IL-3000 Industrial SMT PCB Defect Detection

The IL-3000 In-line Microfocus X-Ray Inspection System provides automated batch inspection for SMT PCB defect detection with advanced imaging capabilities and industrial-grade reliability.

Key Advantages
  • New-generation 5" HD digital flat panel detector (FPD)
  • Belt transmission with width adjusted via lead screw and guide rail (maximum width 620mm)
  • 6-axis motion system equipped with servo motor (X-ray tube and FPD move synchronously)
  • Customizable inspection procedures for automated high-volume inspection
  • Intuitive operation allows quick defect identification (only 2 hours training required)
  • Closed type X-ray tube, maintenance-free, with lifetime exceeding 10,000 hours
  • Automatic navigation window - table moves to clicked locations
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Brand IRay
Effective area 130mm × 130mm
Pixel size 85μm
Resolution 1536 × 1536
Frame rate 20fps
Tiltable angle 60°
Inspection System
Transmission Belt
Motor Servo motor
Detectable area Length 520mm, width 80-430mm adjustable
Max load 10kg
Equipment Specifications
Magnification Geometry 200X | System 1500X
Inspection speed Max 3.0s/point
Dimensions 2600mm (L) × 1300mm (W) × 1800mm (H)
Host machine dimensions 1400mm (L) × 1300mm (W) × 1800mm (H)
Weight 2200kg
Power supply AC110-220V 50/60HZ
Max power 3000W
Industrial PC I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer 24" HDMI LCD
Safety Features
  • Radiation leakage: No leakage (≤1μSv/h - international standard)
  • Transparent lead glass observation window allows safe viewing of internal components
  • Safety interlock system for window and back door
  • Emergency stop button near operation position
  • Automatic tube protection when leaving software
  • Electromagnetic safety switch engages when X-ray is active
Software Capabilities
Function Module Operation
X-ray tube control Mouse-click operation with real-time voltage/current display and adjustment
Status bar Visual indicators for interlock, pre-heat, and X-ray status
Image effect adjustment Customizable brightness, contrast and gain settings
Product list Save and recall inspection parameters for efficiency
Navigation window Click-to-move functionality for precise positioning
Motion axis status Real-time coordinate display
Inspection results Clear display of measurement data with pass/fail indicators
Speed control Adjustable movement speed for each axis
Working Principle
In line X Ray Inspection System Defect Detection Fast Inspection Speed
PCB/SMT X-ray inspection working principle diagram
Voids Rate Measurement
  • Automatic calculation of solder ball voids rate, area, circumference
  • Adjustable parameters for precise measurement (grayscale threshold, pixel, contrast)
  • Manual void addition via polygon/freehand drawing
  • Parameter saving for consistent inspection of identical products
Additional Measurement Functions
  • Distance measurement with baseline reference
  • Angle measurement between reference points
  • Radius measurement for circular components
  • Perimeter measurement for square components
  • Distance rate calculation for through-hole soldering
Automatic Inspection Modes
  • Array mode for regular inspection patterns
  • Automatic feature recognition for characteristic inspection points
  • Manual point setting for custom inspection locations
Application Examples
In line X Ray Inspection System Defect Detection Fast Inspection Speed
PCB X-ray inspection results example
In line X Ray Inspection System Defect Detection Fast Inspection Speed
X-ray inspection component detail close-up
