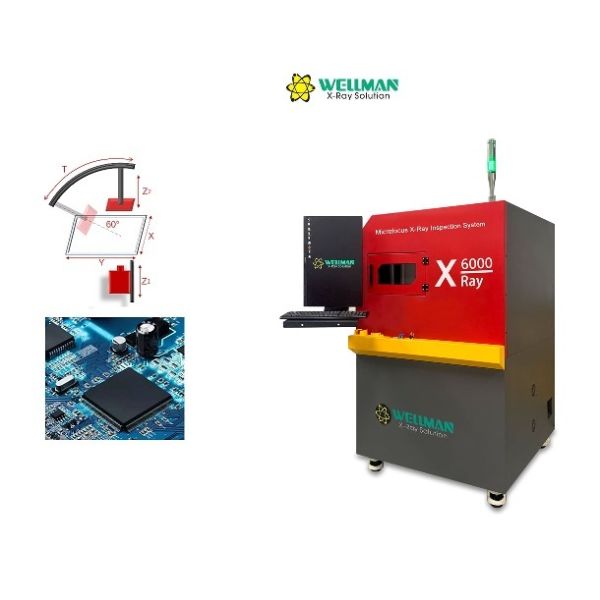

Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Specifications
Brand Name :
WELLMAN
Model Number :
X-Ray X-6000
Certification :
CE,FDA,ISO9001
Place of Origin :
China
MOQ :
1
Price :
26000-40000 dollars
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Description
Simple and Easy to Use Automated Inspection Equipment
Ray X-6000 Automated Inspection System

The Ray X-6000 represents advanced automated inspection technology designed for simplicity and efficiency in industrial quality control applications.

Key Advantages
  • Automatic navigation window - table moves automatically to clicked positions

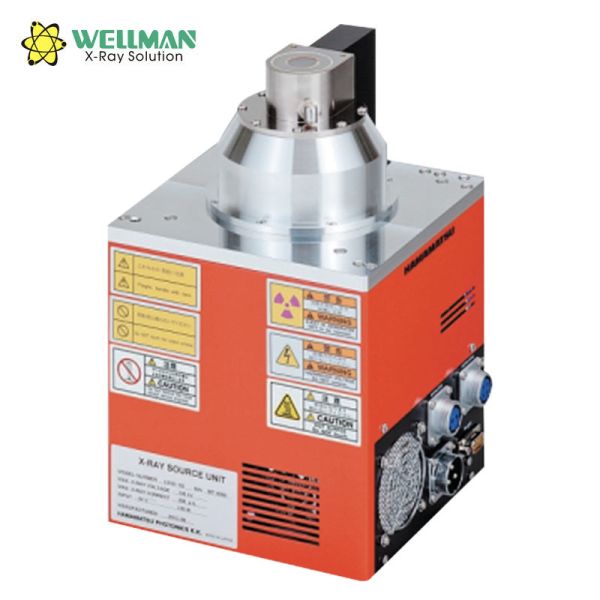

  • Hamamatsu phototubes ensure extended operational lifespan and maintenance-free performance
  • 13*13 cm high-definition large-area digital flat panel detector
  • 420*420mm table with 15KG load capacity
  • Editable inspection procedures for automated high-volume inspection
  • Easy operation with quick defect identification - only 2 hours training required
Working Principle
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max Tube Voltage 90kV
Max Tube Current 200μA
Focal Spot Size 5μm
Function Auto preheat
Flat Panel Detector
Effective Area 130mm*130mm
Pixel Size 85μm
Resolution 1536*1536
Frame Rate 20fps
Table
Size 420mm*420mm
Detectable Area 400mm*400mm
Max Load 15kg
Equipment
Magnification Geometry 150X System 1500X
Inspection Speed Max 3.0s/point
Dimensions 1100mm (L) * 1000mm (W) * 1600mm (H)
Weight 1000kg
Power Supply AC110-220V 50/60HZ
Max Power 1300W
Industrial PC Intel I5 CPU, 8G RAM, 240GB SSD
Displayer 24" HDMI LCD
Safety Features
Radiation Leakage No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window Transparent lead glass window shields radiation to observe inner status
Window and Back Door Safety Interlock X-ray tube powers off immediately when window or back door opens
Electromagnetic Safety Switch Locks when X-ray is on, preventing window opening
Emergency Stop Located next to operation position for immediate power cutoff
Tube Protection Software prevents leaving without closing X-ray tube
Software Functions
Function Module Operation
Operation Interface Keyboard and mouse complete all operations
X-ray Tube Control Mouse-click X button toggles X-ray on/off with real-time voltage and current display and adjustment
Status Bar Indicates interlock status, pre-heat status, and X-ray status with red/green flashing
Image Effect Adjustment Brightness, contrast and gain adjustable for optimal imaging
Product List Save inspection parameters (Z-axis position, brightness, contrast, gain) for efficient repeat inspections
Navigation Window Click anywhere in table photo to move table to selected position
Motion Axis Status Displays real-time coordinates
Inspection Result Measurement results (voids rate, distance, area, etc.) displayed in order
Speed Control Movement speed adjustable to slow, normal and fast for each axis
Voids Rate Measurement
Automatic Calculation Click two points to define rectangle; software automatically measures solder ball edges, pads, internal voids with NG/OK indication
Parameters Adjustment Adjust grayscale threshold, pixel, contrast, size filtering for accurate results
Add Voids Manually Draw polygons or free figures to calculate as voids
Save Parameters Save measurement parameters for efficient repeat inspections
Other Measurement Functions
Distance Measure vertical distance from point to baseline
Distance Rate Measure soldering rate of through-hole components
Angle Measure angle between rays
Radius Measure round components (solder balls) circumference, area and radius
Perimeter Measure square components length, width and area
Automatic Inspection
Manual Setting Set any table positions as inspection points with automatic inspection and image saving
Array Automatically inspect regular pattern points based on row/column settings
Automatic Identification Software automatically identifies positions with obvious features for measurement
Application Examples
BGA Solder Bridge
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
BGA Solder Voids
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
PCB Through-Hole
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
IC Voids and Gold Wire
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
LED Solder Voids
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
LED Gold Wire Crack
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Capacitor
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Inductor
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Sensor
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Thyristor Surge Suppressors
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Fiberglass
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Cable
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Diode
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Steel Pipe Welding Gap
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
Automobile Electronics
Automated X-ray Inspection Equipment with Hamamatsu Phototubes, and 13*13 cm High-Definition Detector
