Inline X Ray Inspection Inspection Machine For PCB Through Hole Void Testing
Inline X Ray Inspection Inspection Machine For PCB Through Hole Void Testing
Specifications
Model Number :
IL-3000
Packaging Details :
Wooden case
Detectable area :
Length 520mm, width 80-430mm adjustable
Payment Terms :
T/T
Type :
Microfocus
Focal spot size :
5μm
Certification :
CE, FDA
MOQ :
1
Max tube voltage :
90kV
Place of Origin :
CHINA
Max tube current :
200μA
Brand Name :
WELLMAN
Description

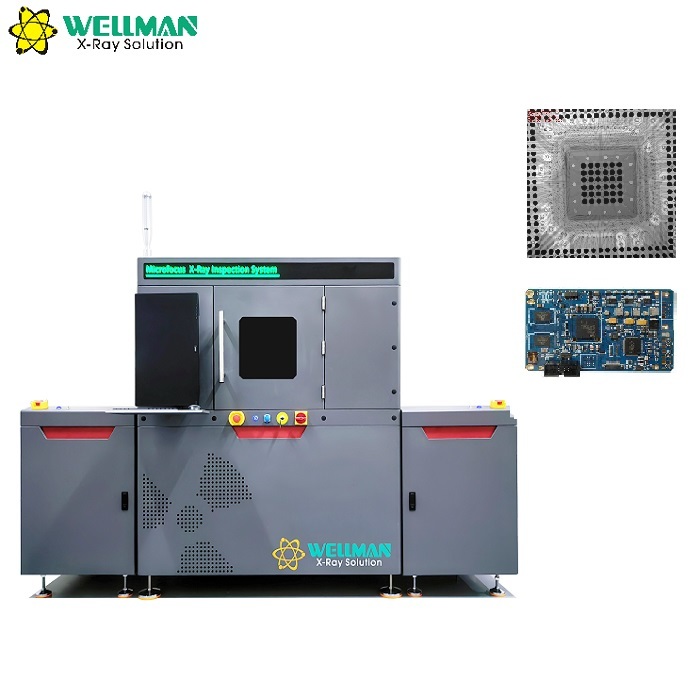

WELLMAN IL-3000 In-line Industrial X-Ray Inspection Machine
Advanced PCB through-hole void testing system with automated high-volume inspection capabilities
Key Advantages
  • Sealed X-ray tube with 10,000+ hours service life and maintenance-free performance
  • Latest-generation 5-inch high-definition digital flat panel detector (FPD)
  • Intelligent auto-navigation window: worktable automatically shifts to clicked positions
  • Conveyor belt transmission with adjustable width, supporting maximum width of 620mm
  • 6-axis motion system equipped with servo motors (X-ray tube and FPD move synchronously)
  • Customizable inspection procedures for automated high-volume inspection
  • Intuitive operation with minimal training required (2 hours)
Hardware Specifications
X-ray Source
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Brand IRay
Effective area 130mm * 130mm
Pixel size 85μm
Resolution 1536 * 1536
Frame rate 20fps
Tiltable angle 60°
Inspection System
Transmission Belt
Motor Servo motor
Detectable area Length 520mm, width 80-430mm adjustable
Max load 10kg
Equipment Specifications
Magnification Geometry 200X | System 1500X
Inspection speed Max 3.0s/point
Dimensions 2600mm (L) * 1300mm (W) * 1800mm (H)
Host machine dimensions 1400mm (L) * 1300mm (W) * 1800mm (H)
Weight 2200kg
Power supply AC110-220V 50/60HZ
Max power 3000W
Industrial PC I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer 24" HDMI LCD
Safety Features
  • Emergency stop button located near operation position
  • Transparent lead glass observation window for safe internal viewing
  • Window and back door safety interlock system
  • Zero radiation leakage, complying with international standard ≤1μSv/h
  • Electromagnetic safety lock engages once the X-ray source is activated
  • Built-in tube protection prevents software exit without shutting down X-ray
Software Functions
Basic Operation
  • Full control via keyboard and mouse
  • X-ray tube control through mouse click, with real-time display of voltage and current
  • Navigation window for precise table positioning
  • Adjustable axis movement speeds (slow, normal, fast)
  • Real-time motion axis coordinate display
  • Inspection result display with measurement data
  • Status bar shows interlock, pre-heat and X-ray status
  • Image brightness, contrast and gain are adjustable
  • Product parameter saving and recall for efficient inspection
Voids Rate Measurement
  • Automatic calculation of voids rate, solder ball area, circumference, etc
  • Manual void addition via polygon or freehand drawing
  • Parameter saving for consistent product inspection
  • Adjustable grayscale threshold, pixel, contrast, and size filtering parameters
Measurement Functions
  • Radius measurement for circular components
  • Distance measurement between points
  • Perimeter measurement for square components
  • Distance rate calculation for through-hole soldering
  • Angle measurement between points
Automatic Inspection
  • Automatic feature recognition for distinctive inspection points
  • Manual inspection point setting
  • Array inspection for regular patterns
Working Principle
Inline X Ray Inspection Inspection Machine For PCB Through Hole Void Testing
Working principle of the IL-3000 X-ray inspection system
Application Examples
Inline X Ray Inspection Inspection Machine For PCB Through Hole Void Testing
Example of IL-3000 X-ray inspection results
Inline X Ray Inspection Inspection Machine For PCB Through Hole Void Testing
Additional example of inspection results
