9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5160TDYEQ6A
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
NingBo
MOQ :
1
Price :
4580-5435USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability :
5,000 units per year
Chassis :
EQ1165LJ9CDE
Engine Rated Power :
162/220
Curb Weight :
8470(Kg)
Rated Loading :
8550(Kg)
Total mass :
16200(Kg)
Max.Speed :
105(km/h)
Water Tank Dimensions :
2800×2450×1720
Water Tank Capacity of the tank :
8.77m³
Fan Power :
20kW
Pump Material :
Stainless steel vertical centrifugal pump
Fuel :
Diesel
Drive Wheel :
4×2
Condition :
new
Specification :
8250× 2550× 3800(mm)
Description

ODM 9m³ Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck


Total Mass: 16.2 tons​


Load: 8550kg​


Tank Volume: 8.77 cubic meters

​

Use & Parts
​
For dust and haze control. Key devices: tank and spray system. Tank total capacity 9.2 cubic meters, size (length × major axis × minor axis) 2800×2450×1720mm. Uses 3950mm wheelbase chassis only.
​
Safety​

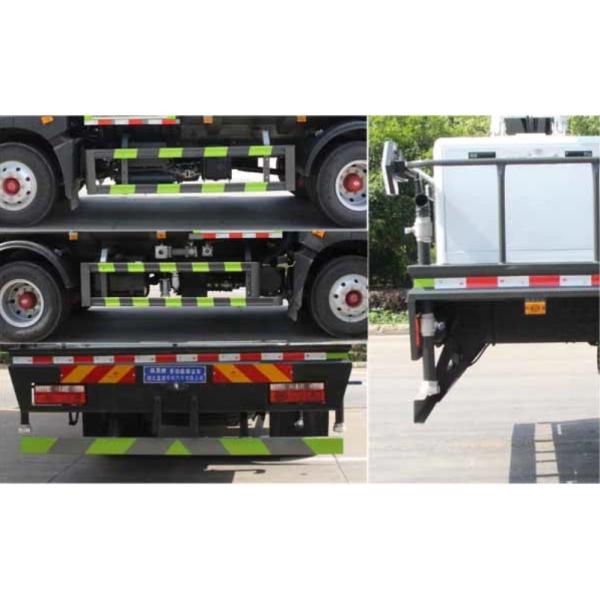

Side and rear guards: Q235 carbon steel, bolted.​


Rear guard: 120×50mm, 490mm above ground.

​

ABS System
​
Options: J ABS ; ABS/ASR-24V-4S/4M.
​
Options​


Speed limiter (89km/h); cab (with chassis).​


Fuel tank positions; spray system styles.​


Front electronic cannon (optional): with it, length 8250mm, front overhang 500mm; without it, length 7750mm, no front overhang.

​

Uses
​
Suitable for dust and haze control. Flexible options to meet needs.

parameters

ItemZBJ5160TDYEQ6A
Energy typeDiesel
Dimension(L x W x H)8250× 2550× 3800(mm)
ChassisEQ1165LJ9CDE
EngineD45TCIF1
Curb Weight8550(Kg)
Total Mass16200(Kg)
Maximum Speed105(km/h)
Water Tank Capacity8.77m³
Fan Power15kw
Pump MaterialStainless steel multi-stage centrifugal pump
Pump Power5kw

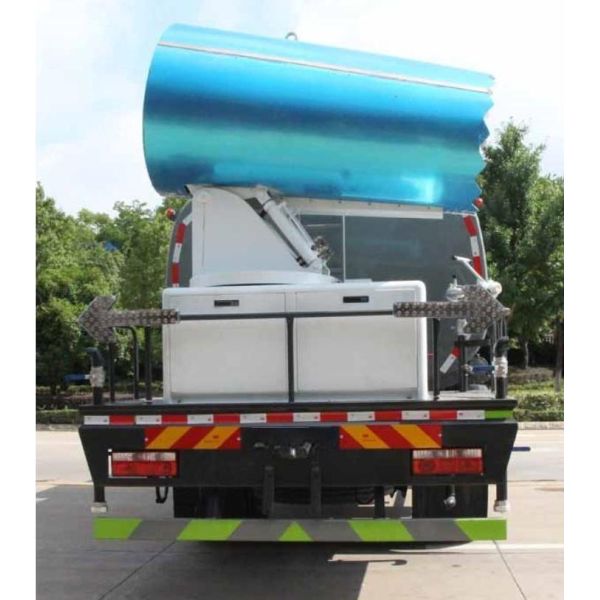

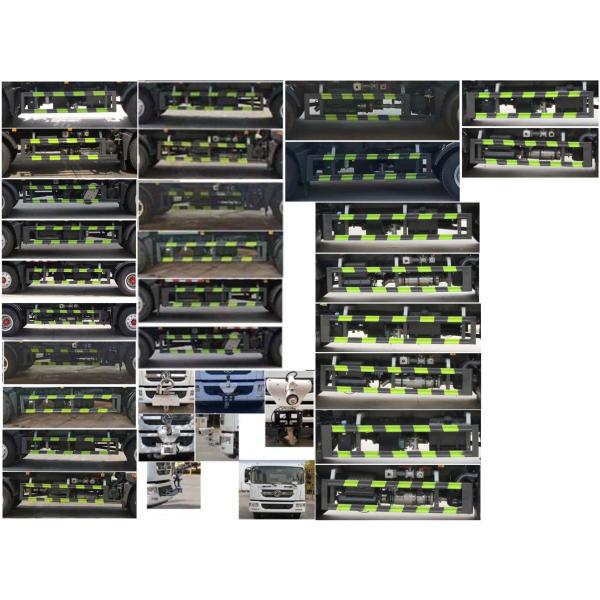

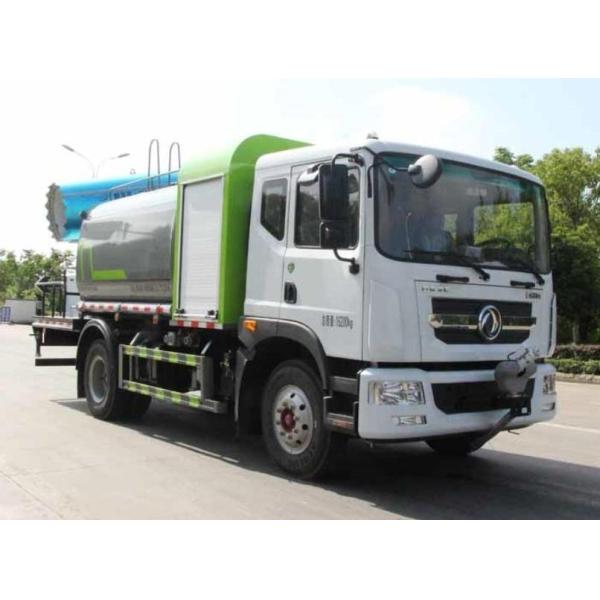

Actual photos


9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis


9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis

9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
