13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5250TDYCDP
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
NingBo
MOQ :
1
Price :
4680-6835usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability :
5,000 units per year
Chassis :
EQ1256GL6DJ
Engine Rated Power :
191/259
Curb Weight :
12420,12355,11370,11305,10620,10555(Kg)
Rated Loading :
12450,13500,14250(Kg)
Total mass :
25000(Kg)
Max.Speed :
88(km/h)
Water Tank Dimensions :
5000×2400×1700
Water Tank Capacity of the tank :
9m³
Fan Power :
22kW
Pump Material :
Stainless steel vertical centrifugal pump
Dimension(L x W x H) :
10450,11000×2550,2500×3900,3850,3800(mm)
Description

13100L ODM Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck

Total Mass: 25 tons​

Loading Capacity: 12420kg, 12355kg, 11370kg, 11305kg, 10620kg, 10555kg​

Effective Tank Volume: 13.1 cubic meters

​

Main Use & Key Devices
​
Used for dust suppression and haze reduction. Equipped with a tank and spray system. Total tank capacity is 13.85 cubic meters, with external dimensions (length × major axis × minor axis) of 5000×2400×1700mm.
​
Chassis & Dimensions​

Wheelbase: 4350+1350mm (only this wheelbase is used).​

Without electronic water cannon: Overall length 10450mm, with front overhang 0mm; front suspension/rear suspension options: 1250/3500mm, 1410/3340mm, 1500/3250mm.​

With electronic water cannon: Overall length 11000mm, front overhang 550mm; front suspension/rear suspension options: 1250/3500mm, 1410/3340mm, 1500/3250mm.

​

Safety Protections​

Side and rear guards: Q235B carbon steel, bolted.​

Rear guard: cross-section 50×120mm, 500mm above ground.

​

ABS System
​
Options: 3631010-C2000 (Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd.); J ABS (Jiaozuo Boruike Control Technology Co., Ltd.).
​
Optional Configurations​

Direct power supply ETC device, rear fog cannon device, cab.​

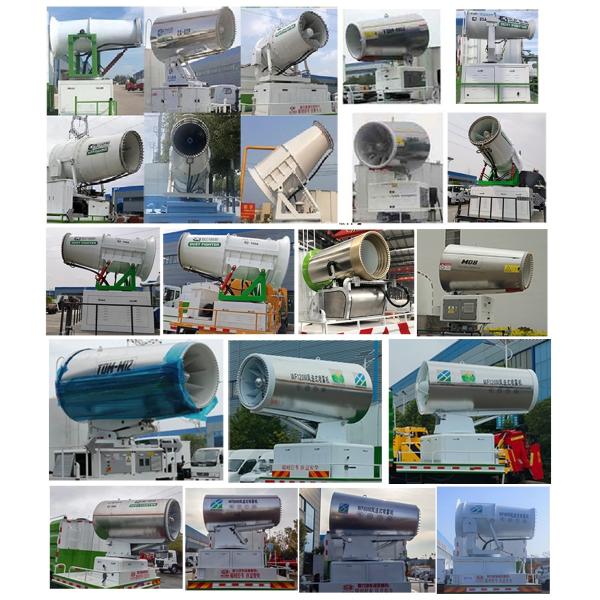

Front electronic cannon styles, water outlet styles.

​

Application
​
Suitable for dust and haze control scenarios, with flexible configurations to meet diverse needs.
parameters
Item ZBJ5250TDYCDP
Energy type Diesel
Dimension(L x W x H) 10450,11000×2550,2500×3900,3850,3800(mm)
Chassis EQ1256GL6DJ
Engine YCS06300-61A
Curb Weight 12450,13500,14250(Kg)
Total Mass 25000(Kg)
Maximum Speed 88(km/h)
Water Tank Capacity 13.1m³
Fan Power 25kw
Pump Material Stainless steel multi-stage centrifugal pump
Pump Power 8kw

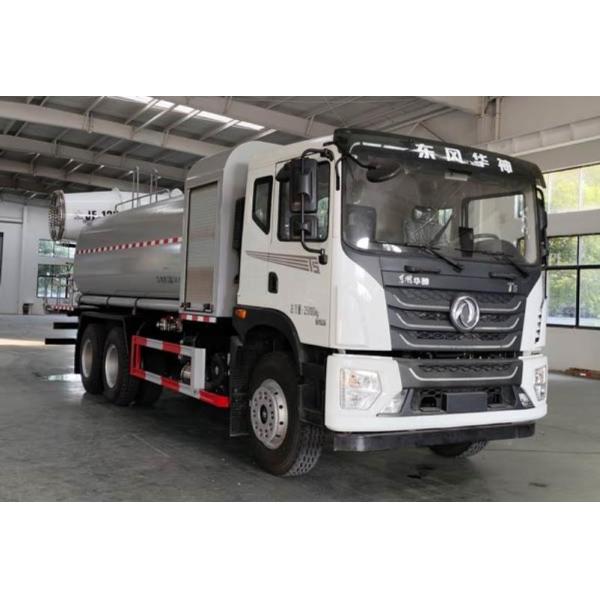

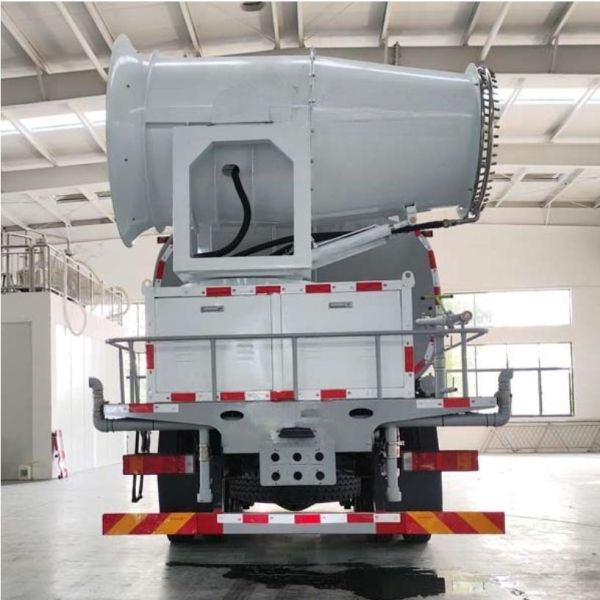

Actual photos

13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle

 13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle
