Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5181TDYDHE6D
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
NingBo
MOQ :
1
Price :
3995-6985 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability :
5,000 units per year
Chassis :
DFH1180EX8
Engine Rated Power :
140/190
Curb Weight :
9325kg
Rated Loading :
9700(Kg)
Total mass :
18000(Kg)
Max.Speed :
89-98(km/h)
Water Tank Dimensions :
4400×2400×1420mm
Water Tank Capacity of the tank :
9m³
Fan Power :
22kW
Pump Material :
Stainless steel vertical centrifugal pump
Fuel :
Diesel
Drive Wheel :
4×2
Condition :
new
Specification :
10580× 2480× 3465(mm)
HS Code :
8706009000
Emission Standard :
Euro 6
Description

18T 10000L Heavy-Duty Water Spray Fog Cannon Dust Suppression Mist Cannon Truck

Total Mass: 18 tons​

Loading Capacity: 9325kg, 8105kg, 8305kg​

Tank Volume: 10.3 cubic meters

​

Main Use & Parts​
It clears haze and dust on roads, squares or fixed places. Has spray system, liquid tank and air control system.
​

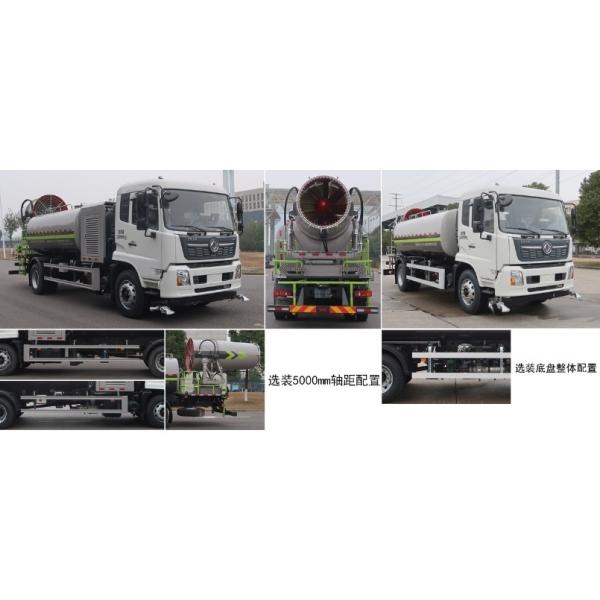

Two Main Configs​

4500mm wheelbase chassis (standard):​

Weight: 8480kg; width 2450mm, height 3115mm.​

Can add front water cannon (780mm front overhang); cab look chosen with chassis.​

Length options: 9275mm (front 1430mm, rear 2410mm, rear extension 935mm), 9245mm (front 1400mm, rear 2410mm, rear extension 935mm), 10055mm (front 1430mm, rear 2410mm, front 780mm, rear 935mm), 10025mm (front 1400mm, rear 2410mm, front 780mm, rear 935mm).​

Angle: 13° approach, 10° departure. Tank: 4400×2400×1420mm, total 10.3 cubic meters, effective 9.8 cubic meters.​

5000mm wheelbase chassis:​

Weight: 9700kg or 9500kg; load 8105kg or 8305kg.​

Width 2480mm, height 3465mm, length 10580mm; front 1430mm, rear 2970mm, rear extension 1180mm.​

Angle: 12° approach, 9° departure. Tank: 3920×2400×1420mm, total 9.5 cubic meters, effective 9.1 cubic meters.

​

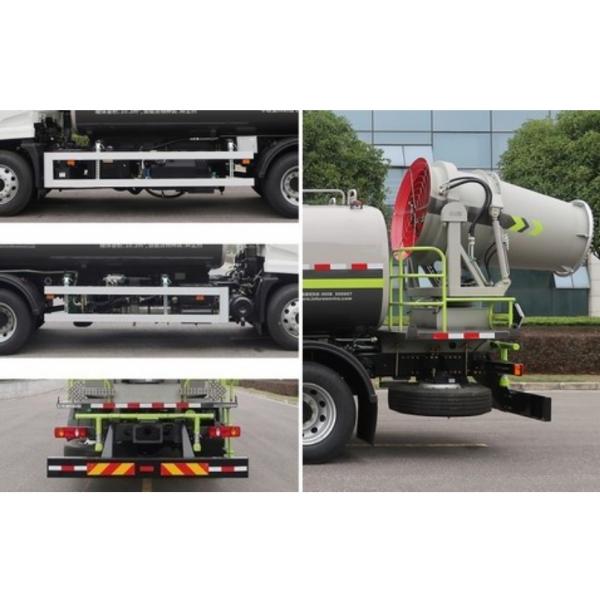

Safety​

Side guards: Aluminum (standard) or Q235B (optional), bolted.​

Rear guards: Q355B (standard) or Q235A (optional), bolted. Size: 240×65mm (standard) or 150×100mm (optional). Height: 420mm (standard) or 420/475mm (optional).

​

ABS System​
Options: 3631010-C2000, ABS 8 ; ABS-E 4S/4M (ZF); J ABS
​

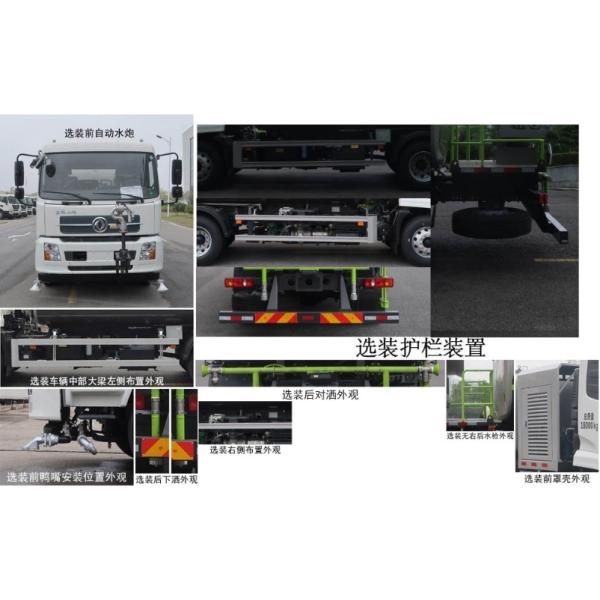

Options​

Speed limiter (89km/h).​

Looks: middle beam left, front duckbill position, rear sprinklers, no right rear water gun, front cover, right layout.

​

Uses

​

Good for haze and dust control in many places. Many options to fit needs.
parameters
Item ZBJ5181TDYDHE6D
Energy type Diesel
Dimension(L x W x H) 10580× 2480× 3465(mm)
Chassis DFH1180EX8
Engine DDi47E260-60
Curb Weight 9325,8105,8305(Kg)
Total Mass 18000(Kg)
Maximum Speed 89,98(km/h)
Water Tank Capacity 9m³
Fan Power 15kw
Pump Material Stainless steel multi-stage centrifugal pump
Pump Power 5kw

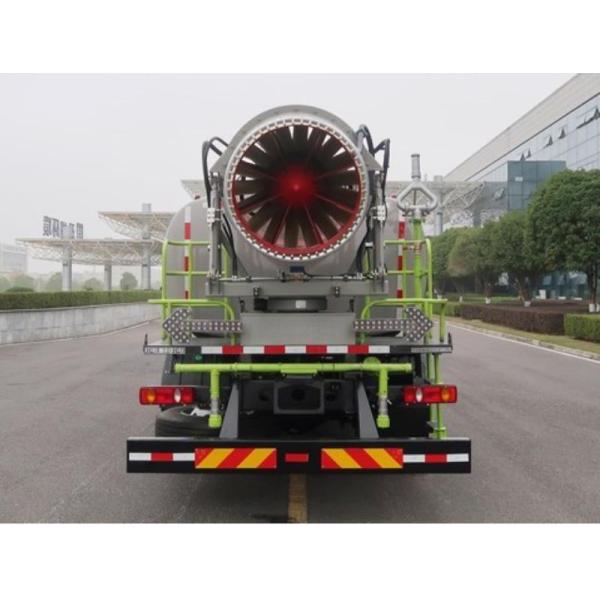

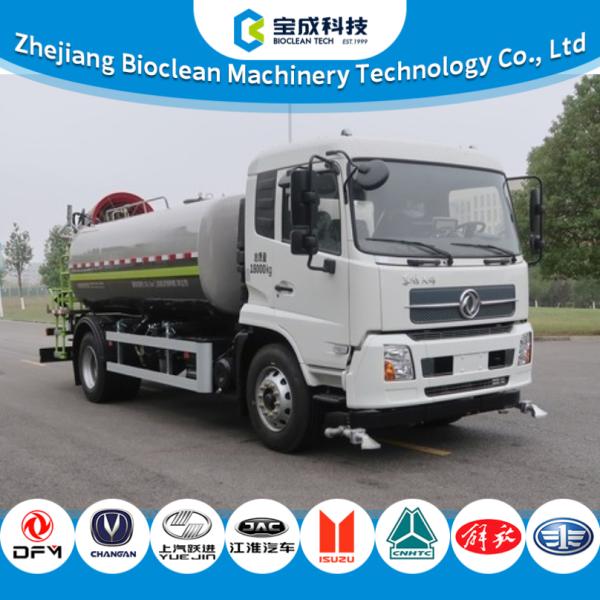

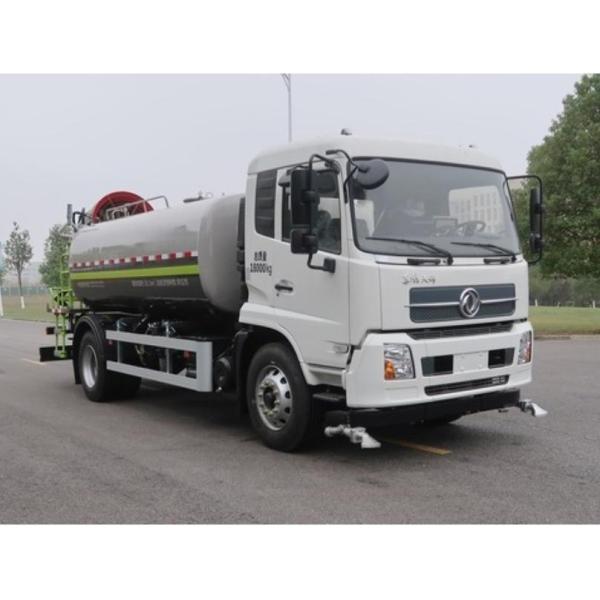

Actual photos

Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance

Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance

Heavy Duty Water Spray Mist Cannon Truck 18T 10000L High PerformanceHeavy Duty Water Spray Mist Cannon Truck 18T 10000L High PerformanceHeavy Duty Water Spray Mist Cannon Truck 18T 10000L High PerformanceHeavy Duty Water Spray Mist Cannon Truck 18T 10000L High PerformanceHeavy Duty Water Spray Mist Cannon Truck 18T 10000L High PerformanceHeavy Duty Water Spray Mist Cannon Truck 18T 10000L High PerformanceHeavy Duty Water Spray Mist Cannon Truck 18T 10000L High Performance
