16T 12000L Diesel Mist Cannon Truck For Dust Suppression Euro 6 Emission Standard
16T 12000L Diesel Mist Cannon Truck For Dust Suppression Euro 6 Emission Standard
16T 12000L Diesel Mist Cannon Truck For Dust Suppression Euro 6 Emission Standard
16T 12000L Diesel Mist Cannon Truck For Dust Suppression Euro 6 Emission Standard
16T 12000L Diesel Mist Cannon Truck For Dust Suppression Euro 6 Emission Standard
16T 12000L Diesel Mist Cannon Truck For Dust Suppression Euro 6 Emission Standard
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5160TDYC6
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
NingBo
MOQ :
1
Price :
5855-7695USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability :
5,000 units per year
Chassis :
CDW1164H501EFB
Engine Rated Power :
147/199
Curb Weight :
9885(Kg)
Rated Loading :
6120(Kg)
Total mass :
16200(Kg)
Max.Speed :
89(km/h)
Water Tank Dimensions :
4000×2400×1500
Water Tank Capacity of the tank :
9m³
Fan Power :
20kW
Pump Material :
Stainless steel vertical centrifugal pump
Fuel :
Diesel
Drive Wheel :
4×2
Condition :
new
Specification :
8210× 2500, 2550× 3100(mm)
HS Code :
8706009000
Emission Standard :
Euro 6
Description

16T 12000L Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon TruckTotal Mass: 18 tons​

Load: 9325kg, 8105kg, 8305kg​

Tank Volume: 10.3 cubic meters

​

Use & Parts
​
Cleans haze and dust on roads, squares or fixed spots. Has spray system, liquid tank and air control.
​
Two Configs​

4500mm wheelbase (standard):​

Weight: 8480kg; width 2450mm, height 3115mm.​

Can add front water cannon (780mm front part); cab look with chassis.​

Lengths: 9275mm, 9245mm, 10055mm, 10025mm (varies with front/rear parts).​

Angles: 13° approach, 10° departure. Tank: 4400×2400×1420mm, total 10.3, effective 9.8 cubic meters.​

5000mm wheelbase:​

Weight: 9700kg or 9500kg; load 8105kg or 8305kg.​

Width 2480mm, height 3465mm, length 10580mm.​

Angles: 12° approach, 9° departure. Tank: 3920×2400×1420mm, total 9.5, effective 9.1 cubic meters.

​

Safety​

Side guards: Aluminum (standard) or Q235B (option), bolted.​

Rear guards: Q355B (standard) or Q235A (option), bolted. Size: 240×65mm (standard) or 150×100mm (option). Height: 420mm (standard) or 420/475mm (option)

​

ABS
​
Options: 3631010-C2000, ABS 8; ABS-E 4S/4M (ZF); J ABS .
​
Options​

Speed limiter (89km/h).​

Looks: middle beam left, front duckbill, rear sprinklers, no right rear water gun, front cover, right layout.​

Chassis setup.

​

Uses
​
Good for haze and dust control in many places. Many options to fit needs.
parameters
Item ZBJ5160TDYC6
Energy type Diesel
Dimension(L x W x H) 8210× 2500, 2550× 3100(mm)
Chassis CDW1164H501EFB
Engine YCS04200-68
Curb Weight 9885(Kg)
Total Mass 16200(Kg)
Maximum Speed 89(km/h)
Water Tank Capacity 9m³
Fan Power 20kw
Pump Material Stainless steel multi-stage centrifugal pump
Pump Power 6kw

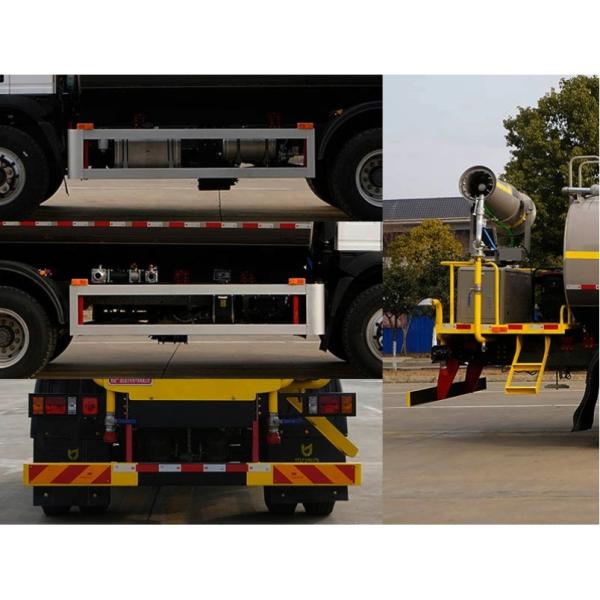

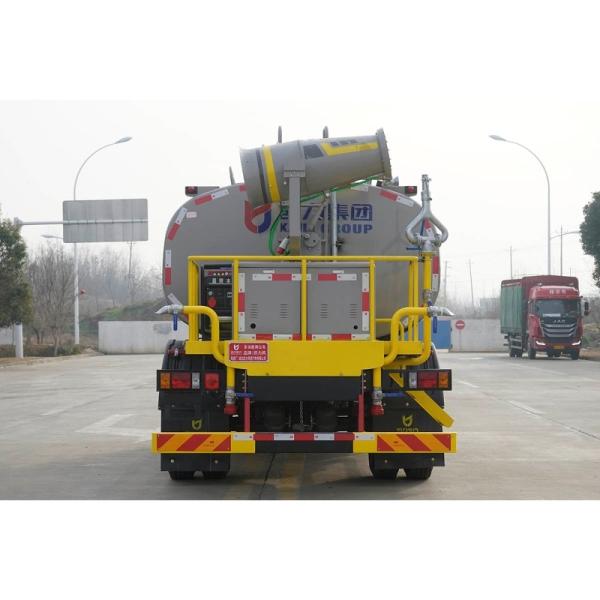

Actual photos
