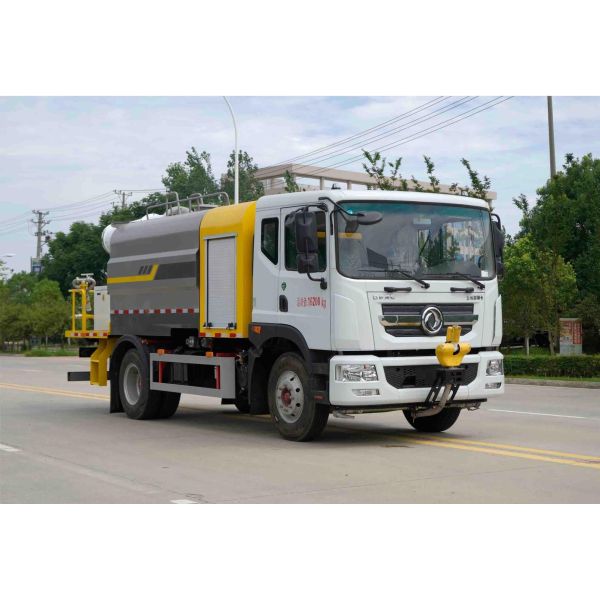

9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5162TDYE6
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Place of Origin :
NingBo
MOQ :
1
Price :
2995-7965 usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15-45 working days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability :
5,000 units per year
Chassis :
EQ1165LJ9CDE
Engine Rated Power :
162/220
Curb Weight :
8970(Kg)
Rated Loading :
7640(Kg)
Total mass :
16200(Kg)
Max.Speed :
105(km/h)
Water Tank Dimensions :
2800×2450×1720
Water Tank Capacity of the tank :
6m³
Fan Power :
20kW
Pump Material :
Stainless steel vertical centrifugal pump
Fuel :
Diesel
Drive Wheel :
4×2
Condition :
new
Specification :
8250× 2550× 3800(mm)
Description

9.3m³ ODM Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck

Total Mass: 16.2 tons​

Load: 8430kg, 8365kg, 8970kg, 8905kg, 8670kg, 8605kg​

Tank Volume: 9.29 cubic meters

​

Use & Parts
​
For dust and haze control. Key devices: dust tank and spray system. Tank total capacity 9.75 cubic meters, size (length × major axis × minor axis) 2800×2450×1720mm. Uses 3950mm wheelbase chassis only.
​

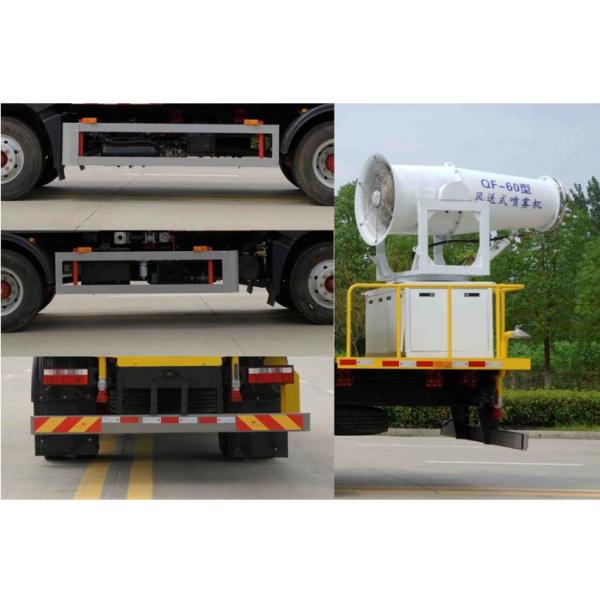

Safety​

Side guards: Q235B, bolted.​

Rear guards: Q235B, bolted. Size 150×50mm, 450mm above ground.

​

ABS System
​
Options: J ABS (Jiaozuo Boruike); ABS/ASR-24V-4S/4M (Xiangyang Dongfeng Longcheng).
​
Options​

Speed limiter (89km/h); cab (with chassis).​

Rear flush styles, air valves, duckbill ball valve positions, tool boxes, arrow lights.​

High cannon styles, front duckbill ball valve styles, with/without electronic water cannon, side sprays.​

Rear arrow lights (only when working); front electronic water cannon adds 500mm front overhang.​

Various overall lengths based on front overhang, front suspension, etc.

​

Uses
​
Suitable for dust and haze control. Flexible options to meet needs.
parameters
Item ZBJ5162TDYE6
Energy type Diesel
Dimension(L x W x H) 8250× 2550× 3800(mm)
Chassis EQ1165LJ9CDE
Engine B6.2NS6B230
Curb Weight 8970(Kg)
Total Mass 16200(Kg)
Maximum Speed 105(km/h)
Water Tank Capacity 6m³
Fan Power 15kw
Pump Material Stainless steel multi-stage centrifugal pump
Pump Power 5kw

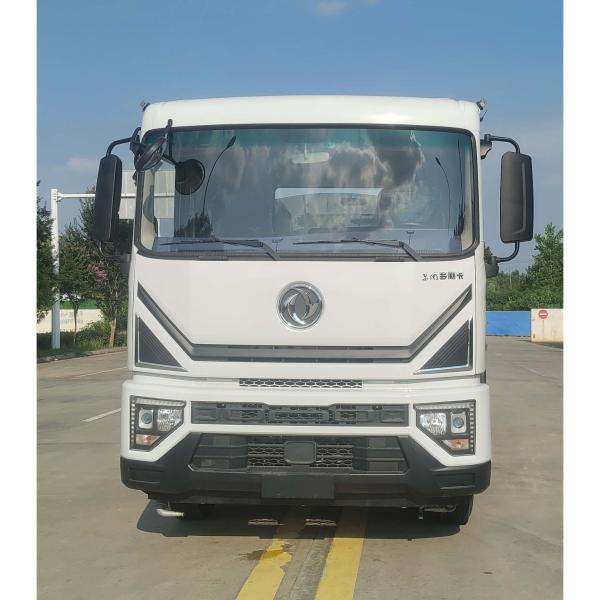

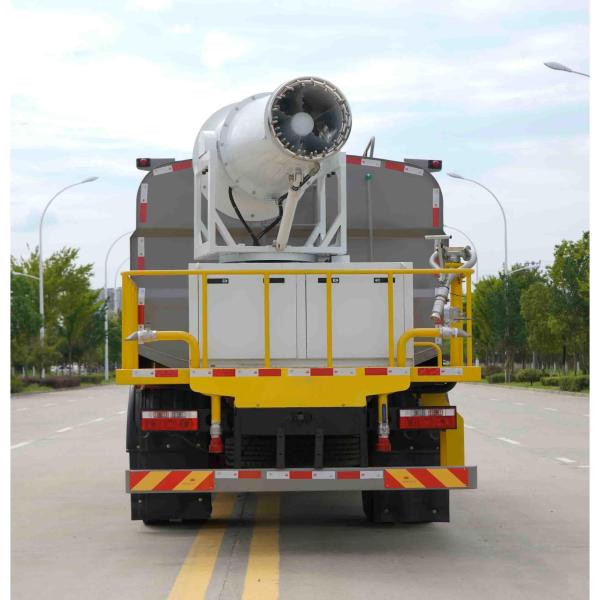

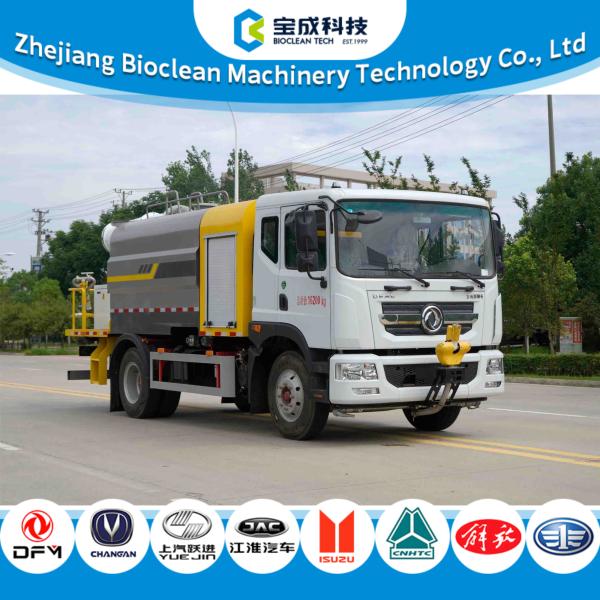

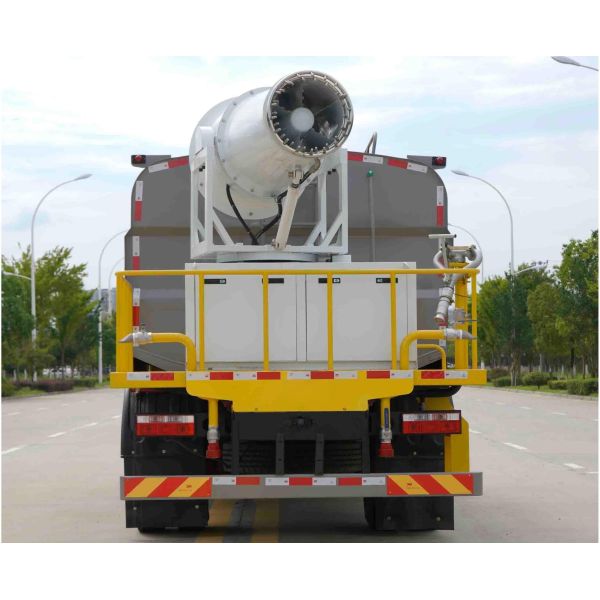

Actual photos

9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control

9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control

9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control
