5G-Immune WR-75 Waveguide LNB - Built-in High-Rejection Filter for 3.5GHz IMT Interference
5G-Immune WR-75 Waveguide LNB - Built-in High-Rejection Filter for 3.5GHz IMT Interference
Specifications
Brand Name :
SETON
Model Number :
KU WR75 ST-K11G
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T,Western Union
Supply Ability :
15 million pieces
Delivery Time :
30-35 days
Packaging Details :
CARTON
Gain :
58~68dB/ 63dB (Typ.)
Noise Figure :
0.5 dB (Typ.) 0.8dB (Max.)
L.O. Frequency :
9.75 GHz/ 10 GHz/ 10.6 GHz/ 10.75 GHz/ 11.25 GHz/ 11.3 GHz, etc.
L.O. Stability :
±50KHz
Phase Noise :
-70dBc@1KHz; -80@10KHz; -90dBc@100KHz
Guard band :
100MHz
5G Power Level :
-30dBm
5G IMT :
3.3~3.6GHz
Description

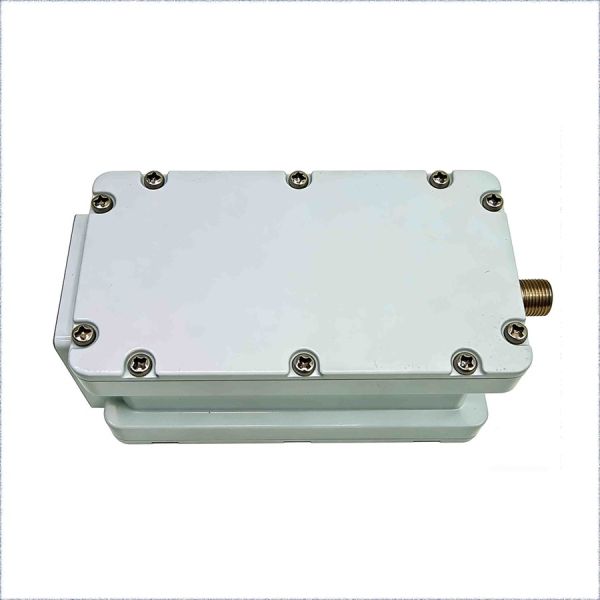

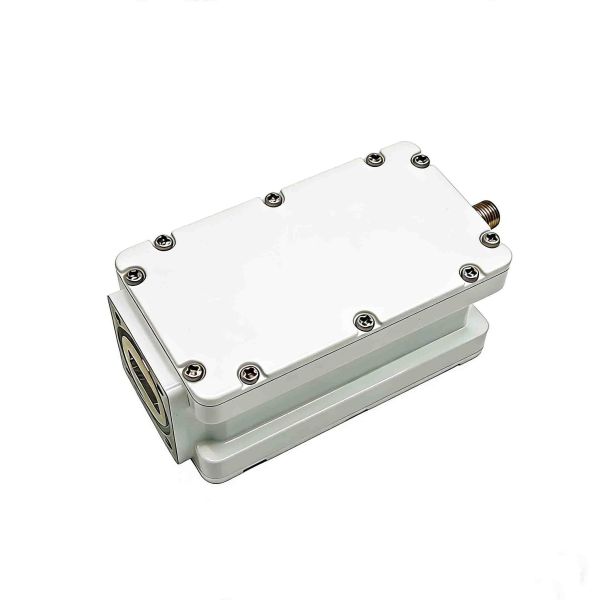

KU-BAND ST-K11G VSAT & FSS SYSTEM LNB WR75
WR-75 LNB with -30dBm 5G Immunity - Guaranteed Gain, No Intermodulation (100MHz Guard Band)
Product Overview
LNB: 9.84~15 GHz (Customizable design according to different frequency)
LO: 9.75 GHz/ 10 GHz/ 10.6 GHz/ 10.75 GHz/ 11.25 GHz/ 11.3 GHz, etc.
Technical Specifications
Parameter Value
Noise Figure 0.5 dB (Typ.) 0.8dB (Max.)
L.O. Stability ±50KHz
Phase Noise -70dBc@1KHz; -80@10KHz; -90dBc@100KHz
Input VSWR 2.2:1
Output VSWR 2.2:1
Gain 58~68dB/ 63dB (Typ.)
Gain Flatness(over full band) 5dBp-p (Max.)
Output P1dB +5dBm
DC Power +12VDC~+24VDC
Tone 22KHz±4
Current 250mA
Input Connection WR75
Output Connection F(75Ω)/N(50Ω)
Anti-Thunder 4KV(Min.)/6KV(Max.)
Rejection KU-TI
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+70℃
Frequency Bands Available (Customizable)
Band 1 Band 2 Band 3 Band 4
10.7~11.7 GHz 10.95~11.7 GHz 11.7~12.75 GHz 12.25~12.75 GHz
L.O. 9.75 GHz L.O. 10.00 GHz L.O. 10.75 GHz L.O. 11.30 GHz
IF 950~1950 MHz IF 950~1700 MHz IF 950~2000 MHz IF 950~1450 MHz
Frequently Asked Questions
Q: What is an ANTI-5G WR75 LNB?
A: The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.
Q: What is a Strong Rejection-5G WR75 LNB?
A: WR75 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, WR75 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR75 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, WR75 LNB built-in high performance out-band rejection passive filter.
Q: What is High Gain Low Noise?
A: WR75 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise: 0.8dB(Max.), which can guarantee system better C/N value.

Interference Scenario Analysis

  • Threat: 5G IMT @ 3.5 GHz (e.g., 3.4-3.8 GHz band).

  • Guard Band: 100 MHz between the 5G band and your satellite C-Band (3.7-4.2 GHz). This is a small but helpful frequency separation.

  • 5G Power at LNB Input: -30 dBm. This is a very strong signal for a receiver input. A typical satellite signal at the LNB input might be -90 to -110 dBm. A -30 dBm interfering signal is ~60-80 dB stronger than the desired signal.

  • LNB Response: No gain, no intermodulation, no saturation. This is the ultimate test of a filter's performance. It means:

    1. The filtering is so effective that the 5G signal is attenuated to a level below the LNB's noise floor, so it contributes no measurable increase in system noise temperature (No ΔG).

    2. The linearity of the LNB's first-stage amplifier (typically a GaAs HEMT) is preserved because the interfering signal is so weak at that point that it never drives the amplifier into its non-linear region (No intermodulation, no saturation).
