ST-Tx6W VSAT LNB BUC 13.75 - 14.5GHz Output Frequency Range 950 - 1700MHz Input Frequency Range
ST-Tx6W VSAT LNB BUC 13.75 - 14.5GHz Output Frequency Range 950 - 1700MHz Input Frequency Range
Specifications
Brand Name :
SETON
Model Number :
ST-Tx6W
Place of Origin :
China
Payment Terms :
T/T,Western Union
Packaging Details :
CARTON
Output Frequency Range :
13.75 ~ 14.5GHz
Input Frequency Range :
950 ~ 1700MHz
LO Frequency :
12.8GHz
Noise Figure :
15dB[Max.]
Operating Temperature :
-40 ~ +60℃
small Signal Gain :
58dB[Typ.]/ 54dB[Min.]
Delivery Time :
30-35 days
MOQ :
1pcs
Description
No. ITEM SPECIFICATION UNIT
K-1 Output Frequency Range 13.75 ~ 14.5 GHz
K-2 Input Frequency Range 950 ~ 1700 MHz
K-3 LO Frequency 12.8 GHz
K-4 Noise Figure 15[Max.] dB
K-5 10MHz External Reference Frequency sensitivity -15 ~ +5 dBm
K-6 Output Power (P1dB) +37.8[Typ.] (+25℃) dBm
K-7 IF Input VSWR 2.0:1 /
K-8 RF Shut off -70 dBm
K-9 In Band Spurious(Power +30dBm Output) -50 dBc
K-10 Out of Band Spurious
(Power +30dBm Output)		 -50 dBc
K-11 (a) over any 2MHz Band (pk-pk) 0.5 dB
K-12 (b) over any 125MHz Band (pk-pk) 2.5 dB
K-13 (c) over any 500MHz Band (pk-pk) 4 dB
K-14 Power Draw 38[Max.] W
K-15 DC Voltage Range 20 ~ 30 V
K-16 Weight 880 g
K-17 Operating Temperature -40 ~ +60 ℃
K-18 RF Output VSWR 2.0:1 /
K-19 Small Signal Gain 58[Typ.]/
54[Min.]		 dB
BUC-Block Up Converter

ST-Tx6W VSAT LNB BUC 13.75 - 14.5GHz Output Frequency Range 950 - 1700MHz Input Frequency Range ST-Tx6W VSAT LNB BUC 13.75 - 14.5GHz Output Frequency Range 950 - 1700MHz Input Frequency Range

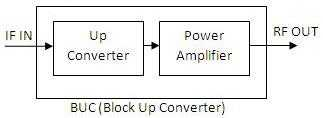

BUC stands for Block Up Converter. As shown in the figure it consists of two modules in one package i.e. RF Up converter and RF power amplifier. It's used in VSAT transmission systems for relaying voice/data via satellite to larger portion of the earth.

Following are the functions of BUC:

  • Frequency conversion i.e. it converts lower frequency to higher frequency. This process is referred as RF up conversion and module is reffered as RF up converter.
  • Amplification i.e. it boosts amplitude level of RF signal converted in the previous module. This process is referred as RF amplification and module is referred as RF Amplifier.

The advantages of using BUC in place of two separate modules (up converter and amplifier) are less cost and easy installation. BUC is placed between satellite modem (i.e. modulator output) and antenna.
