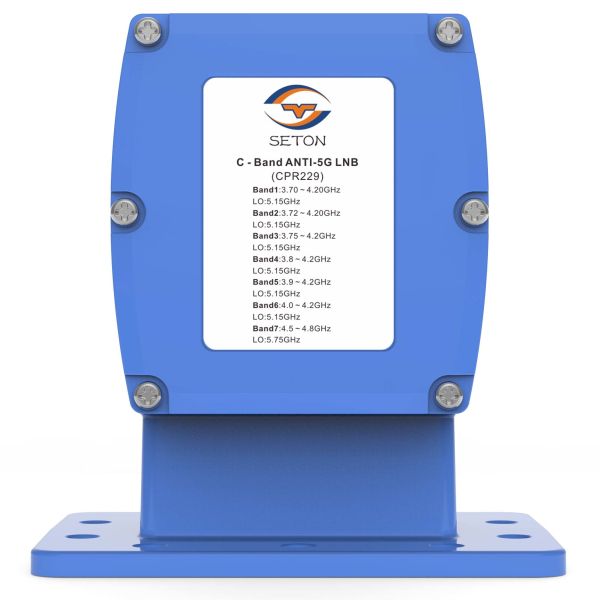

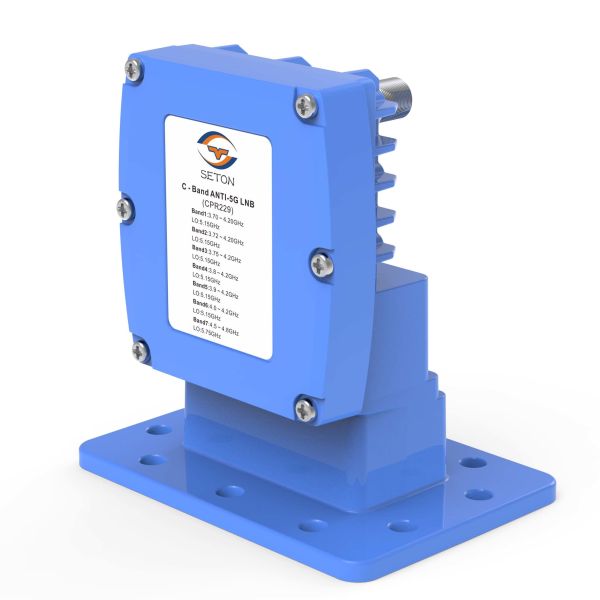

VSAT LNB CPR229 High Gain Low Noise C Band Anti 5G LNB 3.7 - 4.2GHz
VSAT LNB CPR229 High Gain Low Noise C Band Anti 5G LNB 3.7 - 4.2GHz
VSAT LNB CPR229 High Gain Low Noise C Band Anti 5G LNB 3.7 - 4.2GHz
VSAT LNB CPR229 High Gain Low Noise C Band Anti 5G LNB 3.7 - 4.2GHz
Specifications
Brand Name :
SETON
Model Number :
CPR229
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
15 million pieces
Packaging Details :
CARTON
MOQ :
1pcs
Input Frequency :
3.7~4.2GHz(Customizable design)
Output Frequency :
950MHz ~ 1450MHz
Noise figure :
30° K (Typ.)/50° K (Max.)
Conversion Gain :
58dB~68dB/ 63dB (Typ.)
LNB Input 5G Power level :
-30dBm (Max.)
LNB Input Rejection :
50dBc min.(@100MHz)
5G IMT :
3.3~3.6GHz
Delivery Time :
30-35 days
Description
VSAT LNB C-Band ST-C11F VSAT System Anti-5G LNB 3.7-4.2GHz High Gain Low Noise
C-Band VSAT Anti-5G CPR229 LNB featuring high gain and low noise characteristics with strong rejection of 5G IMT interference.
Key Features
  • Frequency range: 3.7~4.2GHz (customizable design available)
  • 5G IMT rejection: 3.3~3.6GHz with 100MHz guard band
  • LNB input 5G power level: -30~-20dBm @ 3.3~3.6GHz
  • Minimal intermodulation and no saturation when 3.3~3.6GHz interference input
Technical Specifications
Parameter Value
Input Frequency 3700 MHz ~ 4200 MHz
Output Frequency 950 MHz ~ 1450 MHz
Noise figure 30° K (Typ.)/50° K (Max.)
Phase noise @ 1 KHz -75 dBc/Hz
Phase noise @ 10 KHz -85 dBc/Hz
Phase noise @ 100 KHz -95 dBc/Hz
Conversion Gain 58 dB~68 dB/ 63dB (Typ.)
Gain Flatness 5 dBp-p (Max.)
P1 dB +10 dBm (Min.)
VSWR Input 2.2:1 (Max.)
VSWR Output 2.2:1 (Max.)
Local Oscillator 5.15GHz
Local Oscillator Stability ± 25 KHz
LNB Input Rejection 50 dBc min.(@100MHz)
P1db (LNB Input 5G Power Level) -30 dBm (Max.)
DC Power +12 VDC - + 24 VDC
Input Connection WR229G
Output Conector F (75 Ω) / N(50Ω)
Current 200mA (Max.)
Available Frequency Bands
Frequency Band(GHz) 3.7~4.2 3.72~4.2 3.8~4.2 3.9~4.2 4.0~4.2
L.O. Frequency(GHz) 5.15 5.15 5.15 5.15 5.15
IF Frequency(MHz) 950~1450 950~1430 950~1350 950~1250 950~1150
Frequently Asked Questions
What is an ANTI-5G CPR229 LNB?
The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.
What is a Strong Rejection-5G CPR229 LNB?
CPR229 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, CPR229 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR229 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, CPR229 LNB built-in high performance out-band rejection passive filter.
What is High Gain Low Noise?
CPR229 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise:50°K(Max.)/ 0.8dB(Max.), which can guarantee system better C/N value.
