A Ku Band Universal QUAD LNBF is a 4-output low-noise block downconverter that:

• Operates in the Ku frequency band (10.7-12.75 GHz)
• Universal switching between low/high bands (9.75/10.6 GHz LO)
• 4 independent outputs for simultaneous receiver operation

A quad LNB is engineered to serve multiple tuners directly without the need for additional equipment like a multiswitch.

Here's what distinguishes a quad LNB:

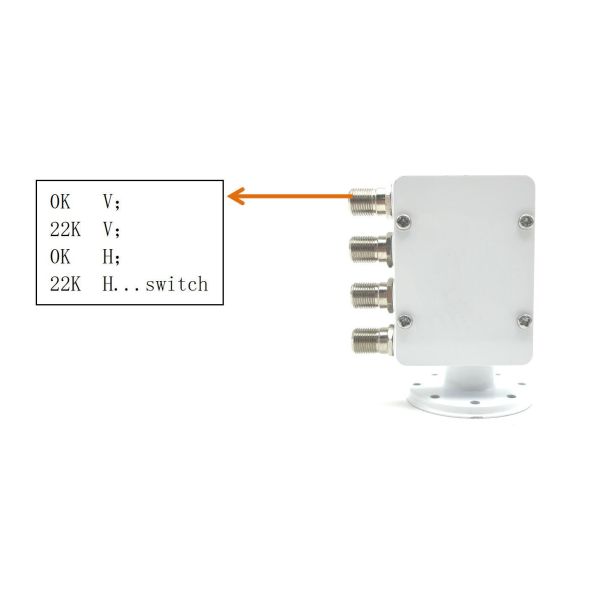

• Four Independent Outputs: The defining feature of a quad LNB is its four independent outputs. Each output is capable of driving a separate tuner, enabling direct connection to up to four satellite receivers.
• Full Ku-Band Coverage: In a quad LNB setup, each output provides signals from the entire Ku band. This means that each tuner connected to a quad LNB has access to all available satellite channels without restriction.
• Direct Tuner Connection: Quad LNBs are commonly used in installations where each satellite receiver requires its own dedicated connection to the LNB. This setup is prevalent in residential settings where viewers prefer individual access to satellite channels.

On the other hand, a quattro LNB serves a distinct purpose in shared dish distribution systems.

Here are the characteristics that set it apart:

• Designed for Multiswitch Integration: Unlike quad LNBs, quattro LNBs are specifically intended for use with multiswitches in shared dish distribution setups. These multiswitches facilitate the distribution of satellite signals to multiple receivers or users in shared environments like apartment buildings or commercial properties.
• Four Outputs, Quarter Band Signals: Similar to quad LNBs, quattro LNBs also feature four outputs. However, each output provides only a quarter of the Ku band signals rather than the entire spectrum.

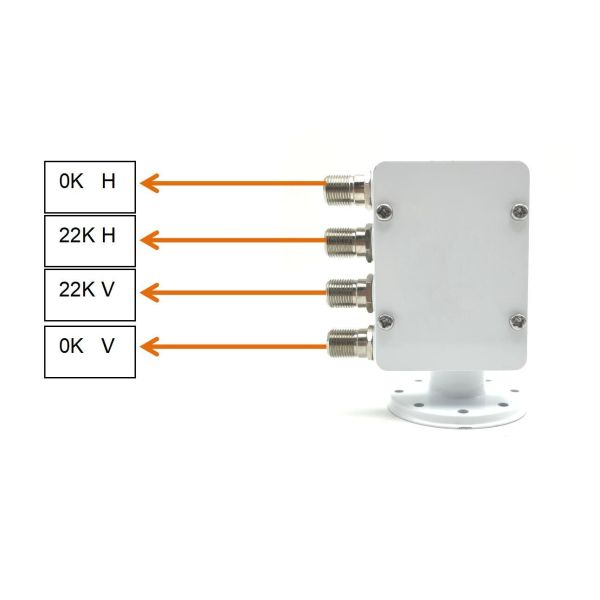

• Signal Division: The signals provided by each output of a quattro LNB are typically divided based on polarization and frequency bands. This division ensures that each output delivers a specific subset of satellite signals, facilitating efficient distribution in shared systems.

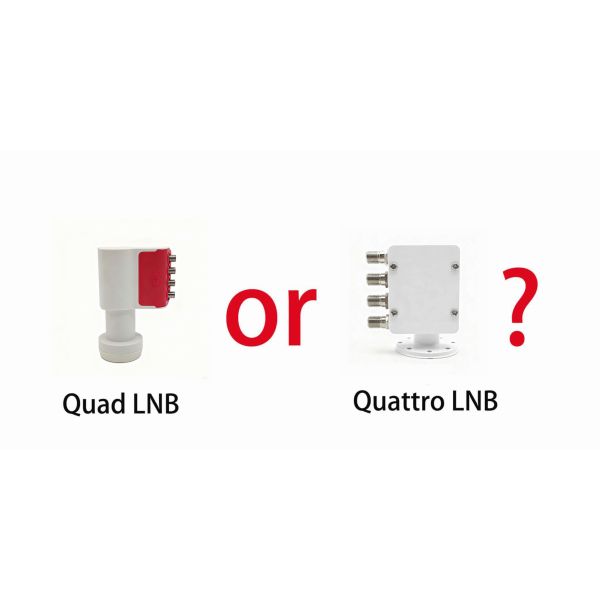

Although both quad and quattro LNBs offer four outputs, their functionality and applications differ significantly.

A quad LNB is suitable for direct connection to multiple tuners, providing access to the entire Ku band for individual receivers. Conversely, a quattro LNB is tailored for integration with multiswitches, distributing quarter-band signals to multiple users in shared dish distribution systems. Understanding these differences is crucial for selecting the appropriate LNB for a specific satellite TV installation scenario.
