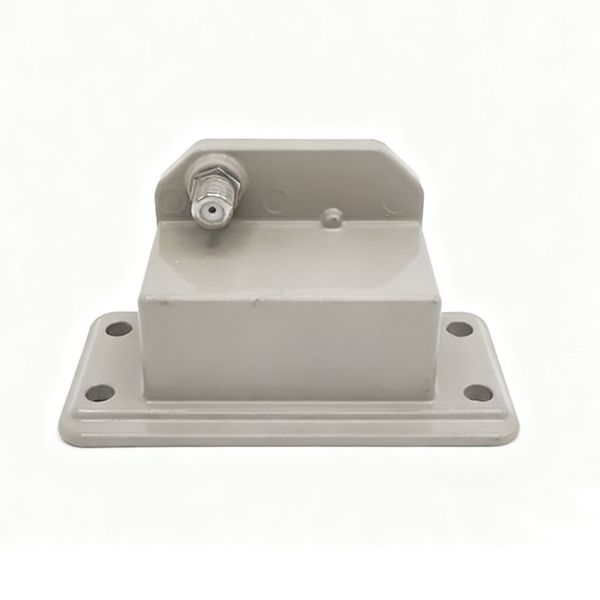

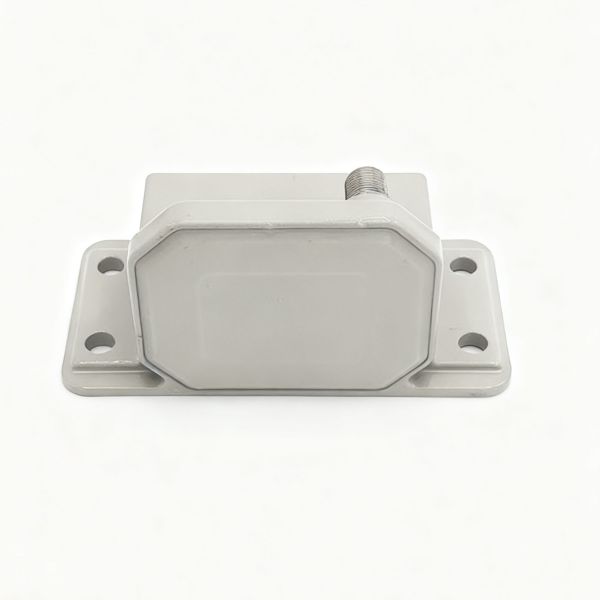

C BAND VSAT LNB System Rejection 5G WR229G ST-C11E
C BAND VSAT LNB System Rejection 5G WR229G ST-C11E
C BAND VSAT LNB System Rejection 5G WR229G ST-C11E
C BAND VSAT LNB System Rejection 5G WR229G ST-C11E
Specifications
Brand Name :
SETON
Model Number :
ST-C11E
Place of Origin :
China
Payment Terms :
T/T,Western Union
Packaging Details :
CARTON
Input Frequency :
3700 MHz ~ 4200 MHz
Output Frequency :
950 MHz ~ 1450 MHz
Noise figure :
30° K (Typ.)/50° K (Max.)
Conversion Gain :
58 dB~68 dB/ 63dB (Typ.)
Delivery Time :
30-35 days
MOQ :
1pcs
Description

Seton Rejection-5G WR229 LNB Specifications

Input Frequency 3700 MHz ~ 4200 MHz
Output Frequency 950 MHz ~ 1450 MHz
Noise figure 30° K (Typ.)/50° K (Max.)
Phase noise @ 1 KHz -75 dBc/Hz
Phase noise @ 10 KHz -85 dBc/Hz
Phase noise @ 100 KHz -95 dBc/Hz
Conversion Gain 58 dB~68 dB/ 63dB (Typ.)
Gain Flatness 5 dBp-p (Max.)
P1 dB +3 dBm (Min.)
VSWR Input 2.5:1 (Max.)
VSWR Output 2.5:1 (Max.)
Local Oscillator 5.15GHz
Local Oscillator Stability ± 25 KHz
LNB Input Rejection 40 dBc min.(@100MHz)
P1db ( LNB Input 5G Power Level ) -45 dBm (Max.)
DC Power +12 VDC - + 24 VDC
Input Connection WR229G
Output Conector F (75 Ω) / N(50Ω)
Current 150mA (Max.)

FREQUENCY BANDS AVAILABLE ANTI-5G LNB


 3.7~4.2 3.72~4.2 3.8~4.2 3.9~4.2 4.0~4.2
L.O. Frequency(GHz) 5.15 5.15 5.15 5.15 5.15
IF Frequency(MHz) 950~1450 950~1430 950~1350 950~1250 950~1150
