75-80GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR12
75-80GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR12
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGISO-7580-WR12
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50pcs per day
Delivery Time :
2-4weeks
Packaging Details :
foam+box
Operating Frequency (GHz ) :
75-80
Operating Temperature( ℃ ) :
-45 ~ + 80
Insertion Loss(dB Max) :
≤0.8
Isolation(dB Min) :
≥18
Return Loss(dB) :
≥16
Description

75-80GHz WR-12 WAVEGUIDE ISOLATOR

  • High reverse isolation (typically 20–30 dB)
  • Built‑in internal termination (no external load needed)
  • Improved source match and VSWR

  1. Identify the forward direction –
    A WAVEGUIDE ISOLATOR is marked with an arrow or label indicating the allowed transmission direction.

  2. Connect source to input port –
    Connect the signal source (e.g., magnetron, amplifier, or oscillator) to the input port of the WAVEGUIDE ISOLATOR.

  3. Connect load to output port –
    Connect the antenna, transmission line, or measurement device to the output port of the WAVEGUIDE ISOLATOR.

  4. **Never reverse a WAVEGUIDE ISOLATOR –
    A WAVEGUIDE ISOLATOR will severely attenuate (typically >20 dB) if connected in reverse; it must be installed in the correct orientation.

  5. Flange matching –
    A WAVEGUIDE ISOLATOR requires the same flange type (UG, CPR, cover, or choke) as the adjacent waveguide components.

  6. Power rating verification –
    Before operating a WAVEGUIDE ISOLATOR, verify both its average power and peak power handling capabilities.

  7. No external termination needed –
    Unlike a circulator, a WAVEGUIDE ISOLATOR has its isolated port internally terminated, so no external WAVEGUIDE LOAD is required.

VN-WGISO-7580-WR12.pdf

Part Number VN-WGISO-7580-WR12
Operating Frequency ( GHz ) 75-80
Insertion Loss(dB) ≤0.8
Isolation(dB) ≥18
Return Loss(dB) ≥16
Operating Temperature ( ℃ ) -45 ~ + 80
Interface WR12 with UG-383/U Anti-Cocking

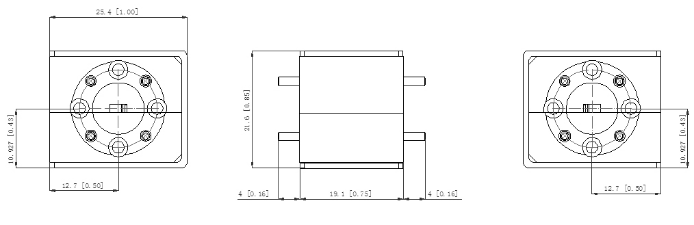

Dimension(mm) As below
Handling Power 3W/1W
ROHS Compliance Yes

75-80GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR1275-80GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-7580-WR12
