92-98GHz WR-10 WAVEGUIDE CIRCULATOR

  • Available for frequencies from 1 GHz to 110 GHz+
  • Compact and rugged waveguide construction
  • Non‑reciprocal operation (one‑way signal flow)

  • Radar transmitter‑receiver isolation –
    A WAVEGUIDE CIRCULATOR allows a single antenna to share both transmitter and receiver paths.

  • High‑power amplifier protection –
    A WAVEGUIDE CIRCULATOR protects a solid‑state amplifier from reflected power coming from a mismatched antenna.

  • Frequency duplexing –
    A WAVEGUIDE CIRCULATOR separates transmitted and received signals in FMCW radar systems.

  • Test and measurement setups –
    A WAVEGUIDE CIRCULATOR is used to create unidirectional signal flow in network analyzer test benches.

  • Satellite communication (Satcom) ground stations –
    A WAVEGUIDE CIRCULATOR directs uplink power toward the antenna while routing downlink signals to the LNA.

  • Electronic warfare (EW) systems –
    A WAVEGUIDE CIRCULATOR isolates jamming transmitters from sensitive receivers.

  • Medical microwave systems –
    A WAVEGUIDE CIRCULATOR protects the generator from reflected power in diathermy or ablation equipment.

  • Industrial microwave heating –
    A WAVEGUIDE CIRCULATOR prevents magnetron damage due to load impedance variations.

In every working scenario, a WAVEGUIDE CIRCULATOR acts as a directional gate that allows energy to flow in only one circular direction.

VN-WGCIR-9298-WR10.pdf

Part Number VN-WGCIR-9298-WR10
Operating Frequency ( GHz ) 92-98
Insertion Loss(dB) ≤1.0(0.7Typ)
Isolation(dB) ≥18
Return Loss(dB) ≥16
Operating Temperature ( ℃ ) -45 ~ + 80
Interface WR10 with UG-387/U Anti-Cocking

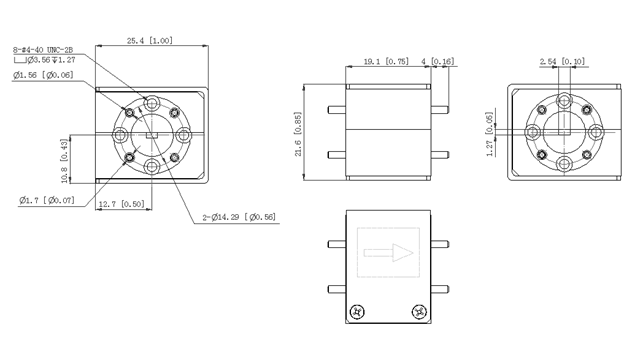

Dimension(mm) As below
Handling Power 3W/1W
ROHS Compliance Yes
