26.5-40GHz WR-28 WAVEGUIDE VN-WGISO-2640-WR28 CIRCULATOR VN-WGCIR-7580-WR12
26.5-40GHz WR-28 WAVEGUIDE VN-WGISO-2640-WR28 CIRCULATOR VN-WGCIR-7580-WR12
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGISO-2640-WR28
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50pcs per day
Delivery Time :
2-4weeks
Packaging Details :
foam+box
Operating Frequency (GHz ) :
26.5-40
Operating Temperature( ℃ ) :
-45 ~ + 80
Insertion Loss(dB Max) :
≤0.6
Isolation(dB Min) :
≥17
Return Loss(dB) :
≥14
Description

26.5-40GHz WR-28 WAVEGUIDE CIRCULATOR

  • Reliable in high‑vibration environments
  • Stable performance over temperature
  • No external power required (permanent magnet)

Radar transmitter‑receiver isolation –
A WAVEGUIDE CIRCULATOR allows a single antenna to share both transmitter and receiver paths.

High‑power amplifier protection –
A WAVEGUIDE CIRCULATOR protects a solid‑state amplifier from reflected power coming from a mismatched antenna.

A WAVEGUIDE CIRCULATOR is a non-reciprocal, three‑port (or four‑port) ferrite device.

A WAVEGUIDE CIRCULATOR uses a magnetically biased ferrite element to create non‑reciprocal phase shift.
When a signal enters port 1 of a WAVEGUIDE CIRCULATOR, it exits only from port 2, not port 3.
Similarly, a WAVEGUIDE CIRCULATOR directs a signal from port 2 to port 3, and from port 3 to port 1.

VN-WGISO-2640-WR28.pdf

Part Number VN-WGISO-2640-WR28
Operating Frequency ( GHz ) 26.5-40
Insertion Loss(dB) ≤0.6
Isolation(dB) ≥17
Return Loss(dB) ≥14
Operating Temperature ( ℃ ) -40 ~ + 70
Interface WR28 with UG-599/U

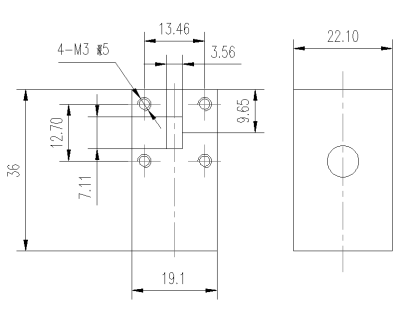

Dimension(mm) As below
Handling Power 25W/10W
ROHS Compliance Yes
