64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12
64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGCIR-6471-WR12
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50pcs per day
Delivery Time :
2-4weeks
Packaging Details :
foam+box
Operating Frequency (GHz ) :
64-71
Operating Temperature( ℃ ) :
-45 ~ + 80
Insertion Loss(dB Max) :
≤0.8
Isolation(dB Min) :
≥16
Isolation(dB) :
≥16
Description

64-71GHz WR-12 WAVEGUIDE CIRCULATOR

  • Compact and rugged waveguide construction
  • Protection of sensitive sources from reflected power
  • High power handling capability

A WAVEGUIDE CIRCULATOR is a non-reciprocal, three‑port (or four‑port) ferrite device.
A WAVEGUIDE CIRCULATOR uses a magnetically biased ferrite element to create non‑reciprocal phase shift.
When a signal enters port 1 of a WAVEGUIDE CIRCULATOR, it exits only from port 2, not port 3.
Similarly, a WAVEGUIDE CIRCULATOR directs a signal from port 2 to port 3, and from port 3 to port 1.
Therefore, a WAVEGUIDE CIRCULATOR provides unidirectional circulation of microwave energy.
Because of this property, a WAVEGUIDE CIRCULATOR isolates input ports from output ports while maintaining low insertion loss in the forward direction.

VN-WGCIR-6471-WR12.pdf

Part Number VN-WGCIR-6471-WR12
Operating Frequency ( GHz ) 64-71
Insertion Loss(dB) ≤0.8
Isolation(dB) ≥16
Return Loss(dB) ≥16
Operating Temperature ( ℃ ) -45 ~ + 80
Interface WR12 with UG-383/U Anti-Cocking

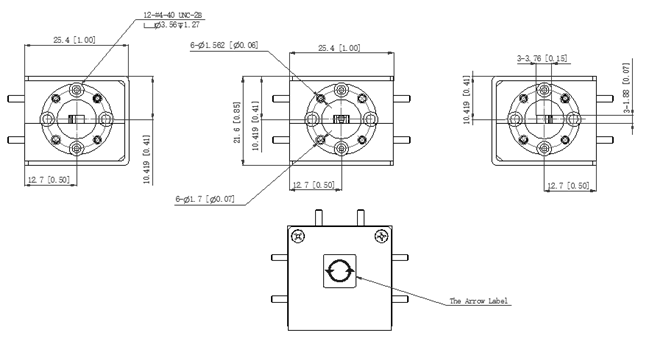

Dimension(mm) As below
Handling Power 3W/3W
ROHS Compliance Yes
64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12
