75-80GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-7580-WR12
75-80GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-7580-WR12
Specifications
Brand Name :
Vinncom
Model Number :
VN-WGCIR-7580-WR12
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50pcs per day
Delivery Time :
2-4weeks
Packaging Details :
foam+box
Operating Frequency (GHz ) :
75-80
Operating Temperature( ℃ ) :
-45 ~ + 80
Insertion Loss(dB Max) :
≤0.8
Isolation(dB Min) :
≥18
Isolation(dB) :
≥16
Description

75-80GHz WR-12 WAVEGUIDE CIRCULATOR

  • Broadband operation (multi‑octave possible)
  • High transmitter‑receiver isolation
  • Reduces system complexity compared to duplexers

  1. Port assignment –
    A WAVEGUIDE CIRCULATOR must have its three ports clearly identified: input, output, and isolated port.

  2. Signal input connection –
    Connect the transmitter or signal source to port 1 of the WAVEGUIDE CIRCULATOR.

  3. Load connection –
    Connect the antenna or main transmission path to port 2 of the WAVEGUIDE CIRCULATOR.

  4. Termination of isolated port –
    Always terminate the isolated port (port 3) of a WAVEGUIDE CIRCULATOR with a WAVEGUIDE LOAD to absorb reflected power.

  5. Flange matching –
    A WAVEGUIDE CIRCULATOR requires the same flange type (UG, CPR, cover, or choke) as the rest of the waveguide system.

  6. Magnetic bias field –
    A WAVEGUIDE CIRCULATOR typically has an internal permanent magnet; no external bias is needed for normal operation.

  7. Power handling check –
    Before using a WAVEGUIDE CIRCULATOR, verify its average and peak power ratings against the system requirements.

VN-WGCIR-7580-WR12.pdf

Part Number VN-WGCIR-7580-WR12
Operating Frequency ( GHz ) 75-80
Insertion Loss(dB) ≤0.8
Isolation(dB) ≥18
Return Loss(dB) ≥16
Operating Temperature ( ℃ ) -45 ~ + 80
Interface WR12 with UG-383/U Anti-Cocking

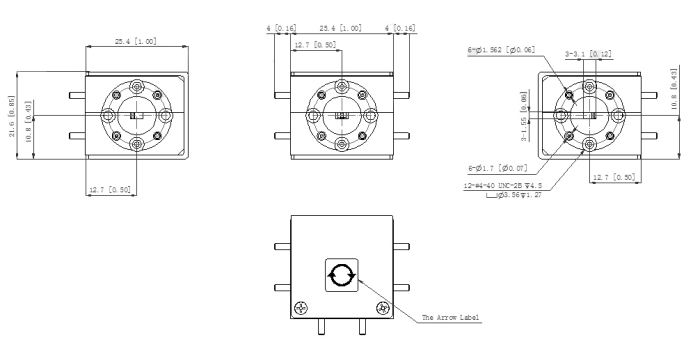

Dimension(mm) As below
Handling Power 3W/1W
ROHS Compliance Yes

75-80GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-7580-WR12
