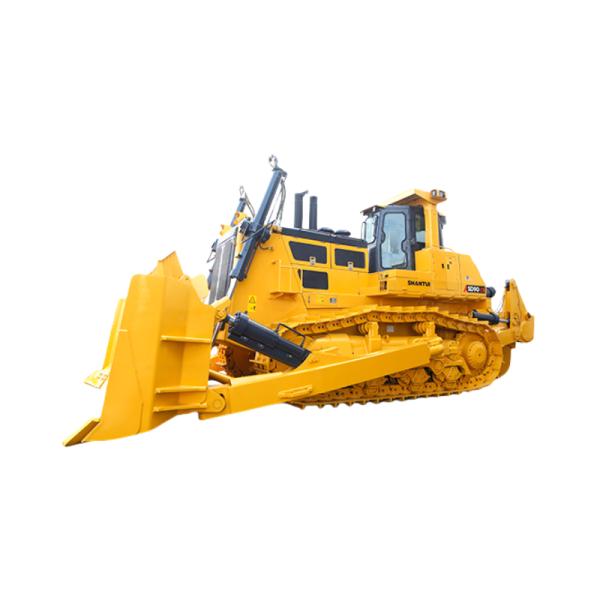

SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
Specifications
Brand Name :
SHANTUI
Model Number :
SD90-C5
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/ Month
Delivery Time :
Full Payment 20-30 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/by Container
Model :
SD90-C5
Engine :
QST30
Machine weight :
106260kg
Shovel depth (mm) :
1010
Engine power :
708kW/2100rpm
Overall dimensions of the machine (mm) :
11500*5265*4590
Description

SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer

Product Advantages

● The design of enclosed safety passage makes maintenance safer and more convenient;

● The whole machine adopts modular design, which is easy to disassemble and assemble, and simple to repair;

● The electrical wiring harness adopts seamless corrugated pipe and wire splitter, with high protection level;

● The core electrical and hydraulic components are purchased globally, with high reliability.

● Matching heavy-duty chassis, it can adapt to more severe working conditions and has a longer service life;

● It has a large ground length, large ground clearance, stable driving, good passability, and can be equipped with semi-U-shaped shovel and U-shaped shovel;

● The supporting wheels adopt K-type elastic suspension, the crawler ground contact area is larger, and the traction is greater and more stable when working on uneven roads;

● Standard high-brightness LED work lights improve lighting capabilities, making night construction safer and more reliable.

Product Parameter

Model SD90-C5 RS
Overall weight
kg
106260kg
Engine
Cummins QST30
Rated power/Rated speed
kw/rpm
708kw/2100rpm
Machine external dimensions
mm
11500*5265*4590mm
Track center distance
mm

2770
Track shoe width
mm
710
Ground contact length
mm
4520
Fuel tank capacity
L
1750
Blade type
Half U Blade
Excavation depth mm

1010
Type of soil loosening device
Single tooth
Soil loosening depth mm 1670
Blade lifting height mm /

Details Images

SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer

SHANTUI SD90-C5 SD90 RS 900HP Cummins Engine Mining Crawler Track Bulldozer
