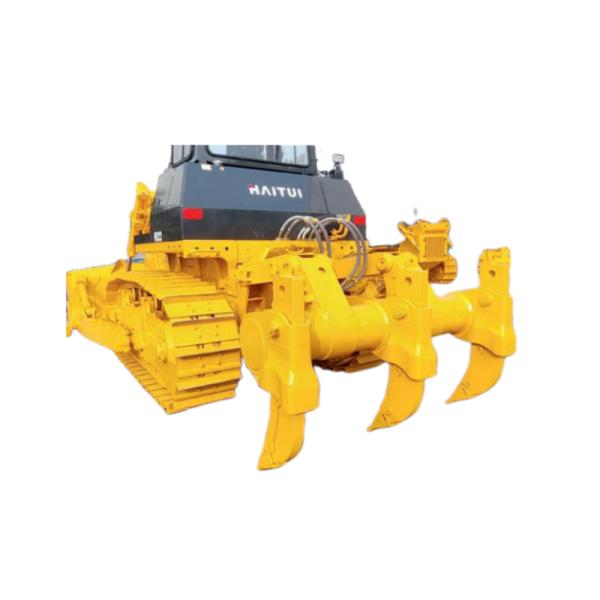

SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
Specifications
Brand Name :
Haitui
Model Number :
HD32
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces/ Month
Delivery Time :
35-40DAYS
Packaging Details :
Standard packing and shipping
Operating weight(with Three shank ripper) :
41.6T
Rated power :
257kw
Dimension(with ripper) :
8955*4150*3515mm
Grounding length :
3150mm
Dozing capacity :
10cbm
Blade type :
Half U blade
Blade width :
4150mm
Blade height :
1592mm
Description

SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade

Product Description

• NTA855-C360S10 engine which can gives you more power and reliability you need.

• The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.

• With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.

• The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

• The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.

• The standard straight tilt blade features powerful cutting force and the optional three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force

Performance parameters:

Model HD32
Type 320HP Standard Hydraulic Crawler Type
Operating weight(with Three shank ripper) 41.6T
Engine Model

CUMINS NTA855-C360S10

Displacement(L):14.01

Rated power(kw/rpm):257/2000

Max.torque(N.m/rpm):1400/1440

Fuel type:Diesel
Dimension(with ripper) (L*W*H) (mm) 8955*4150*3515
Grounding length (mm) 3150
Grounding length (mm) 49kpa
Ground pressure (MPa) 0.105
Track gauge (mm) 2140
Dozing capacity (m³) 10
Blade type Half U blade
Blade width (mm) 4150
Blade height (mm) 1592
Max drop below ground (mm) 560
Track shoe width (mm) 560
Pitch (mm) 228.6
Quantity of track link (each side) 41
Quantity of Carrier rollers (each side) 2
Quantity of Track rollers (each side) 7
Max pressure (MPa) 14
Discharge (L/min) 355
Max tractor force (KN) 280
Forward Speed (Km/h) F1: 0-3.6
F2: 0-6.6
F3: 0-11.5
Rear Speed (Km/h) R1: 0-4.4
R2: 0-7.8
R3: 0-13.5
Ripper type Three-shank
Origin of Goods China
Others Will carried out by the factory standards
Product details
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
SD32 HD32 39T 320HP Hydraulic Dozer Crawler Bulldozer With Rear 3 Teeth Three-Shank Ripper 9cbm 10cbm Half U Blade
