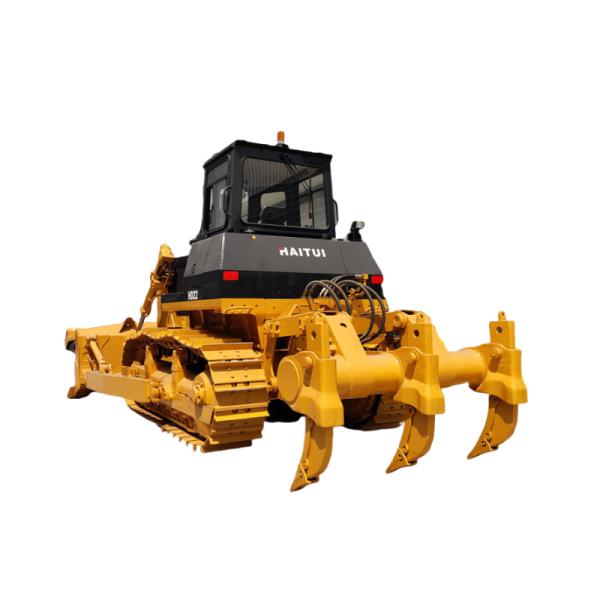

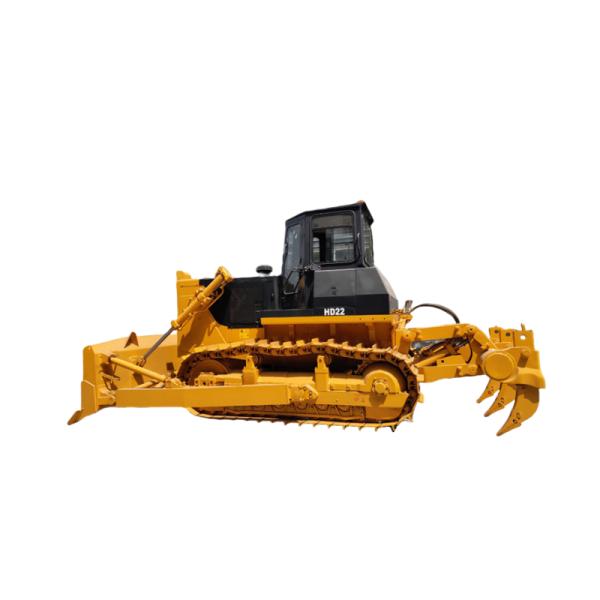

SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
Specifications
Brand Name :
Haitui
Model Number :
HD22
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces/ Month
Delivery Time :
35-40DAYS
Packaging Details :
Standard packing and shipping
Operating weight(with Three shank ripper) :
23.5T
Rated power :
175kw
Dimension(with ripper) :
5460*3725*3395mm
Dozing capacity :
6.3cbm
Blade width :
3725mm
Blade height :
1317mm
Description

SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity

Product Description

This mechanical transmission boasts powerful power, high production efficiency, reliability, and low fuel consumption. The machine features flexible operating mechanisms, a wide view from the cab, excellent comfort, adaptability to harsh operating environments, and easy maintenance and repair. It is suitable for use in swampy, muddy conditions with high water content, such as shrimp ponds and fish ponds. It is an indispensable piece of machinery for farmland reconstruction, construction, and water conservancy projects.

Performance parameters:

Model HD22
Type 220HP Standard Hydraulic Crawler Type
Engine model CUMINS NT855-C280S10
Displacement(L) 14.01
Rated power(kw/rpm) 175/1800
Max.torque(N.m/rpm) 1030/1250
Operating weight 23.5 Ton
Dimension(no ripper)(mm) 5460×3725×3395
Grounding length(mm) 2730
Ground pressure(MPa) 0.077
Track gauge(mm) 2000
Dozing capacity (m³) 6.4
Blade width(mm) 3725
Blade height(mm) 1317
Max drop below ground(mm) 540
Track shoe width(mm) 560
Pitch(mm) 216
Quantity of track link 38
Quantity of Carrier rollers 4
Quantity of Track rollers 12
Max pressure(MPa) 14
Discharge L/min 262
Max tractor force(KN) 202
Forward Speed(Km/h) F1:0-3.6
F2:0-6.5
F3:0-11.2
Rear Speed(Km/h) R1:0-4.3
R2:0-7.7
R3:0-13.2
Product details
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
SD22 HD22 220HP 23.5Tons Crawler Dozer Bulldozer With 6.4m³ Dozing Capacity
