HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
Specifications
Brand Name :
Haitui
Model Number :
HD32
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
500 Pieces/ Month
Delivery Time :
35-40DAYS
Packaging Details :
Standard packing and shipping
Operating weight(with Three shank ripper) :
37T
Rated power :
257kw
Dimension(with ripper) :
6535*4150*3515mm
Grounding length :
3150mm
Dozing capacity :
10cbm
Blade type :
Straight-tilt Blade
Description

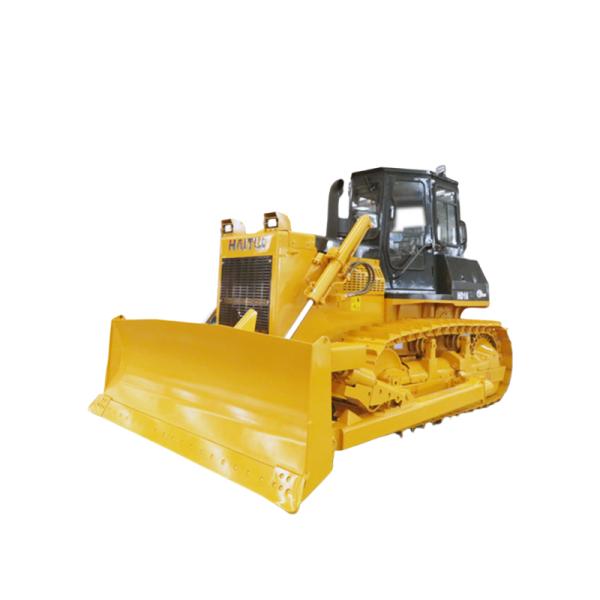

HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade

Product Description

HD32 crawler bulldozer, carries out standardized mass production of high-power bulldozer. HAITUI chinese hydraulic bulldozer HD32 320HP with straight tilt blade adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.

Advantages:

1.The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.

2.With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.

3.The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.

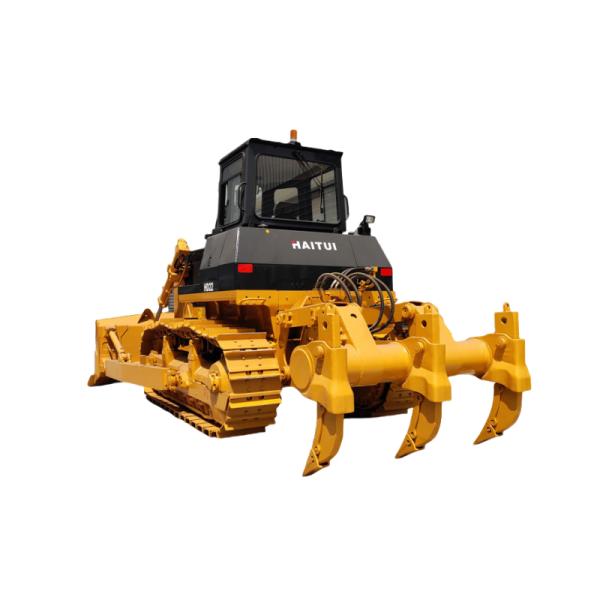

4.The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.

Performance parameters:

Model Unit HD32
Type 　 320HP Standard Hydraulic Crawler Type
Engine model 　 CUMINS NTA855-C360S10
Displacement L 14.01
Rated power kw/rpm 257/2000
Max.torque N.m/rpm 1400/1440
Operating weight Ton 37.2
Dimension(no ripper) mm 6880×4130×3688
Grounding Length mm 3150
Ground pressure Mpa 0.105
Track gauge mm 2140
Dozing capacity m³ 10
Blade width mm 4130
Blade height mm 1590
Digging depth mm 485
Track shoe width mm 560
Pitch mm 228.6
Quantity of track link 　 41
Quantity of Carrier rollers 　 4
Quantity of Track rollers 　 14
Max tractor force KN 280
Max pressure MPa 14
Max drop below ground mm 560/630
Forward Speed Km/h F1:0-3.6
F2:0-6.6
F3:0-11.5
Rear Speed Km/h R1:0-4.4
R2:0-7.8
R3:0-13.5
Product details
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
HAITUI Chinese Hydraulic Bulldozer HD32 320HP With Straight Tilt Blade
