SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
Specifications
Brand Name :
SHANTUI
Model Number :
SD22
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/ Month
Delivery Time :
Full Payment 20-30 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/by Container
Model :
SD22
Engine :
WP12/QSNT-C235
Machine weight :
23450kg
Shovel depth (mm) :
540
Overall dimensions of the machine (mm) :
5495*3725*3402
Fuel tank (L) :
450
Description

SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine

Product Advantages

Power system

●Equipped with WP12/QSNT-C235 electronically controlled engine, it meets the national non-road machinery National III stage emission requirements, with strong power, high efficiency and energy saving, and low maintenance cost;

●Large torque reserve coefficient, rated power reaches 175kW;

●Adopt radial seal intake system to effectively improve the service life of the engine.

Transmission system

●The transmission system perfectly matches the engine curve, with a wider high-efficiency area and higher transmission efficiency;

●Shandui's self-made transmission system has been tested in the market for a long time, with stable performance and reliable quality.

Driving environment

●Hexahedral cab, extra-large interior space and wide field of vision, can be configured with FOPS/ROPS as required, safe and reliable;

●Electronic hand and foot throttle, more precise and comfortable operation;

●Equipped with intelligent display and control terminal, heating and cooling air conditioners, etc., to provide a richer and more humanized driving experience, allowing you to understand the system status at any time, smart and convenient.

Work adaptability

●Stable and reliable Shantui chassis system, suitable for various harsh working conditions;

●The product has a long ground length, large ground clearance, stable driving and good passability;

Model SD22
Overall weight
kg
23450 kg
Engine
WP12/QSNT-C235
Rated power/Rated speed
kw/rpm
175kw/1800rpm
Machine external dimensions
mm
5495*3725*3402mm
Track center distance
mm

2000
Track shoe width
mm
 560/610/660
Ground contact length
mm
 2730
Fuel tank capacity
L
 450
Blade type
Angle shovel, straight tilt shovel, Half U Blade
Excavation depth mm

450
Type of soil loosening device
Three-tooth scarifier
Soil loosening depth mm 540
Blade lifting height mm /


Details Images

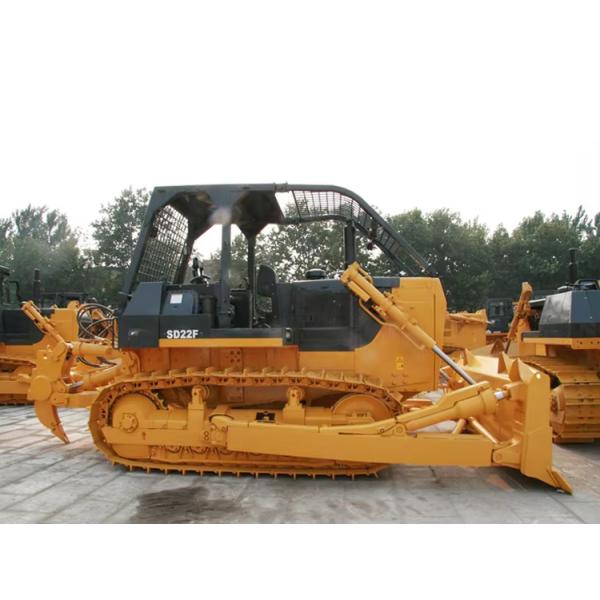

SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine

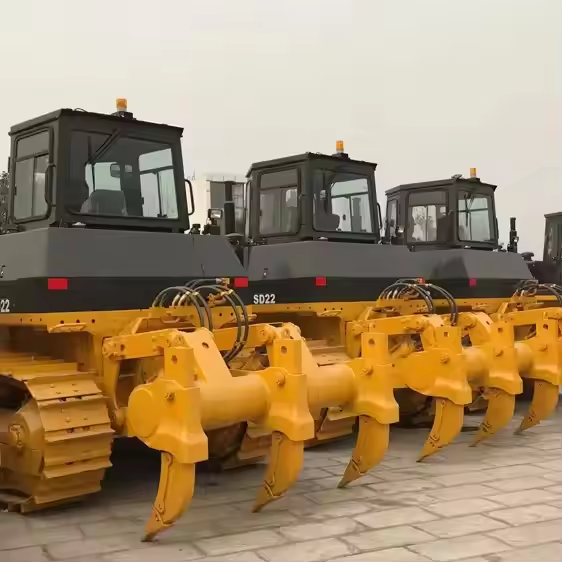

SHANTUI SD22 Crawler Tracked Bulldozer With Weichai Cummins Engine
