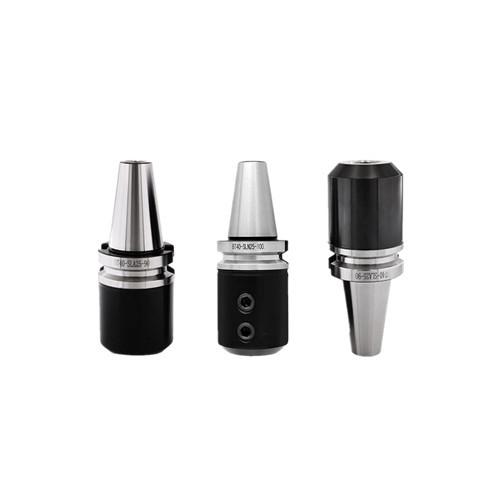

BT40 Weldon Holder BT Tool Holder end mill holder Balanced G6.3/G2.5

CNC bt sln side lock end mill chuck holder for drills cnc lathe tool holder chuck adapter,Weldon holder for clamping cutters with straight shank and inclined flat of DIN1835-B and DIN6535-HB.Tool selection should pay attention to the structure and process analysis of the workpiece, combined with the processing ability of CNC machine tools,Tool Holders For Cnc Machines, workpiece materials and process content and other factors. The material of CNC tool holder is generally 20CrMnTi. The common tool holders in CNC machining are mainly divided into drilling tool holder, boring tool holder, milling tool holder, Bt Collet Chuck ,threaded tool holder and straight handle tool holder.

BT End Mill Holder Weldon Holder apply to the holder of a DIN1835-E , BT tool holder are suitable for normal accuracy machining jobs,including drilling, milling, reaming and tapping. It can be applied for heavy cutting and milling process generally. The cutting tools can be clamped precisely. Even it`s worked in heavy cutting, it will not result in slipping on cutting tools. Mechanical spindle and cutting tools and other accessories.High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.

SpecifiCATEEions

1. Modle No.: BT30,BT40,BT50
2, The Accuracy: 0.005mm
3, Material: 40Cr, 20CrMnTi, it can be made carburization treatment
4, The hardness: 52-58HRC
5, The model: SLB6, SLB8, SLB10, SLB12, SLB16. SLB20. SLB25. SLB32. SLB40
6, Bt Tool Holder The usage: For clamping cutters with straight shank and inclined flat of DIN1835-B and DIN6535-HB
7, The coolant: AD, B, AD+B type
8, Taper: AT3 Standard
9, The Side lock holder can be made dynamic balancing G6.3/12000rpm, G2.5/25000rpm and so on
10.Packaging Detail: Plastic boxes, cartons
11.Tool Holder Delivery Detail: 15-20 days after receiving the deposit and all package information confirmed.

BT SLN side lock end mill adapters holder, Factory could supply series of end mill tool holders, bt40-sln25 is the best seller type , material with 40Cr, standard with MAS403 , all the tools with high speed ,high precision.We also could supply other types collet tool holders, such as bt40-er32-100, bt40-fmb22-60 ,nt tools ,mt tools ,sk tools, hsk tools available .
