Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3
Specifications
Brand Name :
QFMH
Model Number :
BT30,BT40,BT50
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD 8/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PCS/MONTH
Delivery Time :
5DAYS
Packaging Details :
PLASTIC BOX
coolant hole :
Yes
cutting direction :
Right Hand
cutting edge angle :
90°
cutting edge length :
50mm
flute length :
50mm
material :
20CrMnTi
name :
drill chuck adapter
number of flutes :
2
overall length :
45mm
shank type :
mas403
surface finish :
Polished
tolerance :
±0.005mm
usage :
CNC Machining
Accuracy :
High Precision
Weight :
0.5kg-1.5kg
Description

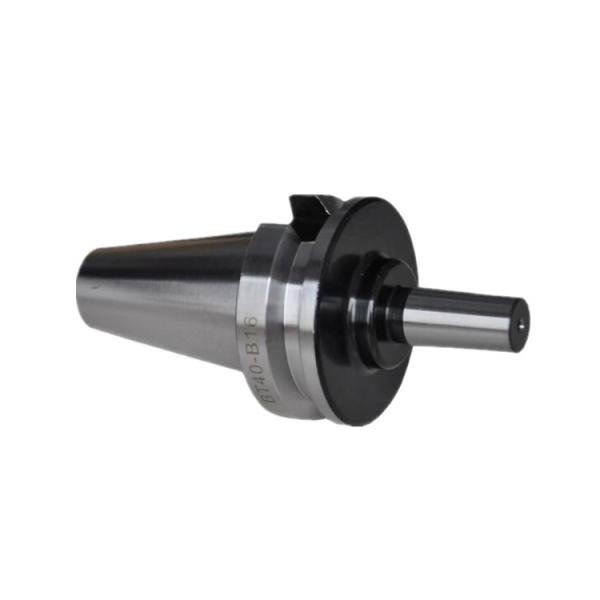

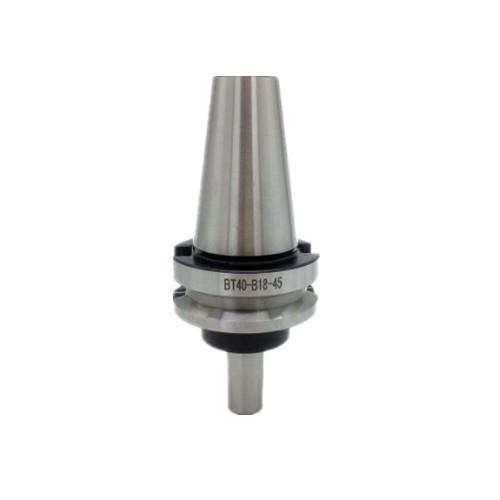

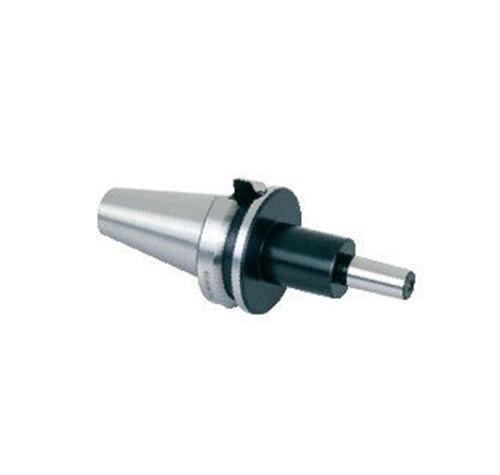

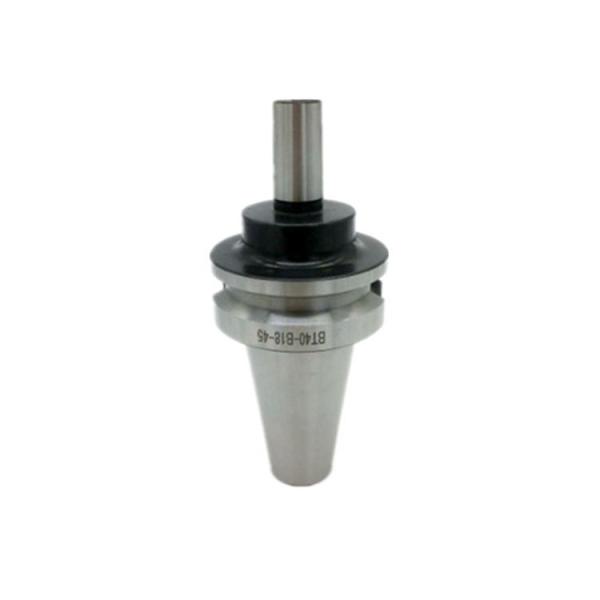

BT Drill Chuck Arbor Taper Accuracy to AT3 for High Speed Running drill chuck adapter bt tool holder

CNC tool system drill chuck adapter BT30/40/50 drill chuck arbor made from carburized alloy steel, work surface hardness to HRC58~62.
,The connecting rod is mainly used for drilling and milling machine used in drill chuck, BT Drill Chuck Arbor generally used for lathe, milling machine, machining center machine etc.. BT Drill Chuck Arbor Connecting rod using the alloy structure steel, the hardness reached 58-62 degrees, the speed of up to 12000 rpm


Specifications
1.BT Drill Chuck Arbor Model: BT30/40/501.Made from carburized alloy steel, work surface hardness to HRC58~62.
2.BT Drill Chuck Arbor Taper accurary≤ AT3, ensure well contact with spindle cone for high speed
running to protect the spindle.
3.BT Drill Chuck Arbor Concentrictity and runout ≤0.005mm in high rpm.
4.BT Drill Chuck Arbor According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm

Drill Chuck Adapter BT Tool Holder BT50 Drill Chuck Arbor Taper Accuracy To AT3

FAQ

1.What kind of characteristic of your company?

We are both manuafcturer and exporter.

2.Can you supply samples?

Yes,we can.

3.Can you produce products according to our requirement?

Yes,we can.

4. About Shipping

Port: Shanghai/Ningbo/Guangzhou/Shenzhen/Hongkong
Shipping : By Air, By Sea or By Express
Shipping Time : 4-10days By Express
Different Area will spend different shipping days
7-15days By Air
25-55days By Sea
Trade Terms FOB, CIF, EXW, CFR, DDU...

5. product warranty

One year warranty

6.What's your payment terms?

FOB,T/T,CIF.

Model No. L2 L1 D D1 Drawbar thread
BT30-J1-45 16.669 110 9.754 31.75 M12
BT30-J2-45 22.225 115.6 14.199 31.75 M12
BT30-J3-45 30.956 124.4 20.599 31.75 M12
BT30-J6-45 25.4 118.8 17.17 31.75 M12
BT30-J33-45 25.4 118.8 15.85 31.75 M12
BT30-B10-45 14.5 107.9 10.094 31.75 M12
BT30-B12-45 18.5 111.9 12.065 31.75 M12
BT30-B16-45 24 117.4 15.733 31.75 M12
BT30-B18-45 32 125.4 17.78 31.75 M12
BT40-J1-45 16.669 127.1 9.754 44.45 M16
BT40-J2-45 22.225 132.6 14.199 44.45 M16
BT40-J2S-45 19.05 129.4 13.94 44.45 M16
BT40-J3-45 30.956 141.4 20.599 44.45 M16
BT40-J4-45 42.069 152.5 28.55 44.45 M16
BT40-J5-45 47.625 158 35.89 44.45 M16
BT40-J6-45 25.4 135.8 17.17 44.45 M16
BT40-J33-45 25.4 135.8 15.85 44.45 M16
BT40-B10-45 14.5 124.9 10.094 44.45 M16
BT40-B10-120 14.5 199.9 10.094 44.45 M16
BT40-B12-45 18.5 128.9 12.065 44.45 M16
BT40-B16-32 24 121.4 15.733 44.45 M16
BT40-B16-45 24 134.4 15.733 44.45 M16
BT40-B16-75 24 164.4 15.733 44.45 M16
BT40-B16-90 24 179.4 15.733 44.45 M16
BT40-B18-45 32 142.4 17.78 44.45 M16
BT40-B18-75 32 172.4 17.78 44.45 M16
BT50-J1-45 16.669 163.5 9.754 69.85 M24
BT50-J2-45 22.225 169 14.199 69.85 M24
BT50-J2S-45 19.05 165.9 13.94 69.85 M24
BT50-J3-45 30.956 177.8 20.599 69.85 M24
BT50-J4-45 42.069 188.9 28.55 69.85 M24
BT50-J5-45 47.625 194.4 35.89 69.85 M24
BT50-J6-45 25.4 172.2 17.17 69.85 M24
BT50-J33-45 25.4 172.2 15.85 69.85 M24
BT50-B10-45 14.5 161.3 10.094 69.85 M24
BT50-B10-100 14.5 216.3 10.094 69.85 M24
BT50-B12-45 18.5 165.3 12.065 69.85 M24
BT50-B16-45 24 170.8 15.733 69.85 M24
BT50-B16-60 24 185.8 15.733 69.85 M24
BT50-B16-75 24 200.8 15.733 69.85 M24
BT50-B16-90 24 215.8 15.733 69.85 M24
BT50-B18-45 32 178.8 17.78 69.85 M24
