0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi
Specifications
Brand Name :
QFMH
Model Number :
BT30,BT40,BT50
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD 8/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PCS/MONTH
Delivery Time :
5DAYS
Packaging Details :
PLASTIC BOX
coolant hole :
Yes
cutting direction :
Right Hand
cutting edge angle :
90°
cutting edge length :
50mm
flute length :
50mm
material :
20CrMnTi
name :
BT drill chuck arbor
number of flutes :
2
overall length :
90mm
shank diameter :
20mm
shank type :
mas403
surface finish :
Polished
tolerance :
±0.005mm
usage :
CNC lathe Machining
package :
plastic box
size :
BT40 B18
Description

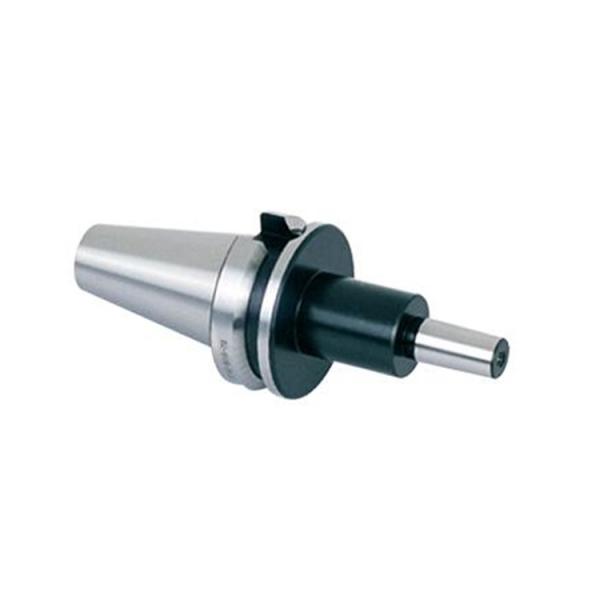

BT Drill Chuck Arbor, BT30/BT40/BT50, Up to 0.01mm Precision bt tool holder facing cutter

0.01mm Precision BT Tool Holder BT40 Face Mill Arbor 20CrMnTi

BT drill collet chuck arbors tool holder for cnc milling machine,Suitable Facing Cutter:16mm-40mm .The connecting rod is mainly used for drilling and milling machine used in drill chuck, BT Drill Chuck Arbor generally used for lathe, milling machine, machining center machine etc.. BT Drill Chuck Arbor Connecting rod using the alloy structure steel, the hardness reached 58-62 degrees, the speed of up to 12000 rpm

Specifications

1.High quality elastic steel material with long use time.

2.BT drill chuck arbor Type: A AD AD/B

3.BT drill chuck arbor Shank of the DIN Taper Shell Mill Arbors:BT30, BT40 BT50

4.BT drill chuck arbor Suitable Facing Cutter:16mm-40mm

5.The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)

6.BT drill chuck arbor Holder hardness:48-55HRC

7.BT drill chuck arbor Suitable Pull Stub& Facing Cutter is also upon request

Model No.

BT-NO.s-L1

 L2 L1 D Drawbar thread Wt(kg)
BT30-J1-45 16.669 110 9.754 M12 0.60
BT30-J2-45 22.225 115.6 14.199 M12 0.70
BT30-J3-45 30.956 124.4 20.599 M12 0.80
BT30-J6-45 25.4 118.8 17.170 M12 0.75
BT30-J33-45 25.4 118.8 15.850 M12 0.75
BT30-B10-45 14.5 107.9 10.094 M12 0.60
BT30-B12-45 18.5 111.9 12.065 M12 0.60
BT30-B16-45 24 117.4 15.733 M12 0.70
BT30-B18-45 32 125.4 17.780 M12 0.82
BT40-J1-45 16.669 127.1 9.754 M16 1.15
BT40-J2-45 22.225 132.6 14.199 M16 1.25
BT40-J2S-45 19.05 129.4 13.940 M16 1.20
BT40-J3-45 30.956 141.4 20.599 M16 1.45
BT40-J4-45 42.069 152.5 28.550 M16 1.55
BT40-J5-45 47.625 158 35.890 M16 1.60
BT40-J6-45 25.4 135.8 17.170 M16 1.30
BT40-J33-45 25.4 135.8 15.850 M16 1.30
BT40-B10-45 14.5 124.9 10.094 M16 1.40
BT40-B10-120 14.5 199.9 10.094 M16 1.76
BT40-B12-45 18.5 128.9 12.065 M16 1.34
BT40-B16-32 24 121.4 15.733 M16 1.40
BT40-B16-45 24 134.4 15.733 M16 1.45
BT40-B16-75 24 164.4 15.733 M16 1.55
BT40-B16-90 24 179.4 15.733 M16 1.40

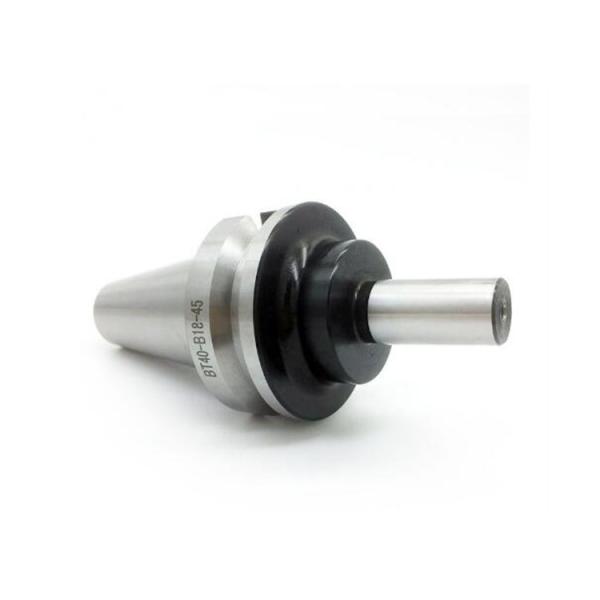

BT40-B18-45 32 142.4 17.780 M16 1.70
BT40-B18-75 32 172.4 17.780 M16 1.76
BT50-J1-45 16.669 163.5 9.754 M24 3.60
BT50-J2-45 22.225 169 14.199 M24 3.95
BT50-J2S-45 19.05 165.9 13.940 M24 3.90
BT50-J3-45 30.956 177.8 20.599 M24 3.70
BT50-J4-45 42.069 188.9 28.550 M24 3.75
BT50-J5-45 47.625 194.4 35.890 M24 3.80
BT50-J6-45 25.4 172.2 17.170 M24 4.00
BT50-J33-45 25.4 172.2 15.850 M24 4.00
BT50-B10-45 14.5 161.3 10.094 M24 3.60
BT50-B10-100 14.5 216.3 10.094 M24 3.80
BT50-B12-45 18.5 165.3 12.065 M24 3.60
BT50-B16-45 24 170.8 15.733 M24 3.65
BT50-B16-60 24 185.8 15.733 M24 3.70
BT50-B16-75 24 200.8 15.733 M24 3.74
BT50-B16-90 24 215.8 15.733 M24 3.78
BT50-B18-45 32 178.8 17.780 M24 3.70
