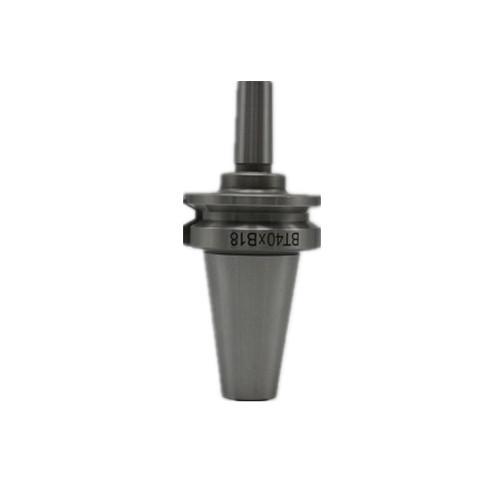

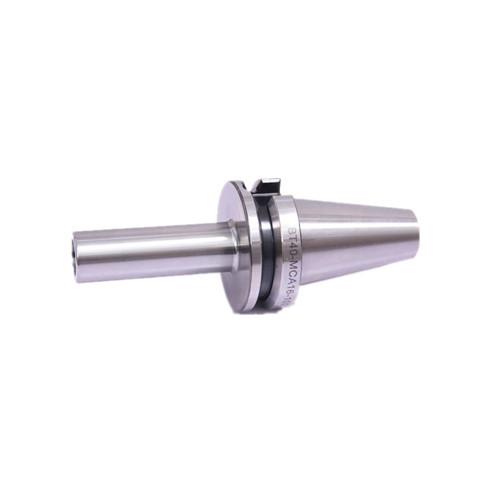

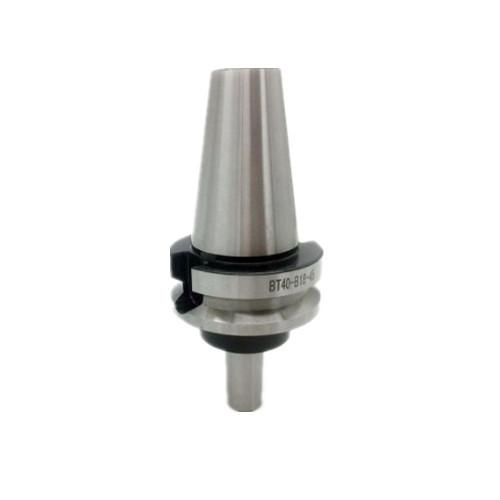

CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
CNC BT Tool Holder BT30 BT40 BT50 Drill Chuck Arbor Connecting Rod
Specifications
Brand Name :
QFMH
Model Number :
BT30,BT40,BT50
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD 8/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PCS/MONTH
Delivery Time :
5DAYS
Packaging Details :
PLASTIC BOX
coolant hole :
Yes
cutting direction :
Right Hand
flute length :
50mm
material :
Carbide
name :
BT B18 Tool Holder
number of flutes :
2
overall length :
100mm
shank diameter :
20mm
shank type :
mas403
surface finish :
Polished
tolerance :
±0.005mm
usage :
CNC Machining
SIZE :
B20
Description

BT30/40/50 Drill Chuck Arbor Connecting Rod, bt tool holder,cnc tool holder

BT taper drill chuck arbor ,The connecting rod is mainly used for drilling and milling machine used in drill chuck, BT Drill Chuck Arbor generally used for lathe, milling machine, machining center machine etc.. BT Drill Chuck Arbor Connecting rod using the alloy structure steel, the hardness reached 58-62 degrees, the speed of up to 12000 rpm

SpecifiCATEEions
1.Model: BT30/40/50

2. Material:20CrMnTi
3. Harded:HRC58-62
4.Run out is less than 0.005mm
5.BT Drill Chuck Arbor Taper accurary≤ AT3, ensure well contact with spindle cone for high speed
running to protect the spindle.
3.BT Drill Chuck Arbor Concentrictity and runout ≤0.005mm in high rpm.
4.BT Drill Chuck Arbor According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm

Model No.

BT-NO.s-L1

 L2 L1 D D1 Drawbar thread Wt(kg)
BT30-J1-45 16.669 110 9.754 31.75 M12 0.60
BT30-J2-45 22.225 115.6 14.199 31.75 M12 0.70
BT30-J3-45 30.956 124.4 20.599 31.75 M12 0.80
BT30-J6-45 25.4 118.8 17.170 31.75 M12 0.75
BT30-J33-45 25.4 118.8 15.850 31.75 M12 0.75
BT30-B10-45 14.5 107.9 10.094 31.75 M12 0.60
BT30-B12-45 18.5 111.9 12.065 31.75 M12 0.60
BT30-B16-45 24 117.4 15.733 31.75 M12 0.70
BT30-B18-45 32 125.4 17.780 31.75 M12 0.82
BT40-J1-45 16.669 127.1 9.754 44.45 M16 1.15
BT40-J2-45 22.225 132.6 14.199 44.45 M16 1.25
BT40-J2S-45 19.05 129.4 13.940 44.45 M16 1.20
BT40-J3-45 30.956 141.4 20.599 44.45 M16 1.45
BT40-J4-45 42.069 152.5 28.550 44.45 M16 1.55
BT40-J5-45 47.625 158 35.890 44.45 M16 1.60
BT40-J6-45 25.4 135.8 17.170 44.45 M16 1.30
BT40-J33-45 25.4 135.8 15.850 44.45 M16 1.30
BT40-B10-45 14.5 124.9 10.094 44.45 M16 1.40
BT40-B10-120 14.5 199.9 10.094 44.45 M16 1.76
BT40-B12-45 18.5 128.9 12.065 44.45 M16 1.34
BT40-B16-32 24 121.4 15.733 44.45 M16 1.40
BT40-B16-45 24 134.4 15.733 44.45 M16 1.45
BT40-B16-75 24 164.4 15.733 44.45 M16 1.55
BT40-B16-90 24 179.4 15.733 44.45 M16 1.40
BT40-B18-45 32 142.4 17.780 44.45 M16 1.70
BT40-B18-75 32 172.4 17.780 44.45 M16 1.76
BT50-J1-45 16.669 163.5 9.754 69.85 M24 3.60
BT50-J2-45 22.225 169 14.199 69.85 M24 3.95
BT50-J2S-45 19.05 165.9 13.940 69.85 M24 3.90
BT50-J3-45 30.956 177.8 20.599 69.85 M24 3.70
BT50-J4-45 42.069 188.9 28.550 69.85 M24 3.75
BT50-J5-45 47.625 194.4 35.890 69.85 M24 3.80
BT50-J6-45 25.4 172.2 17.170 69.85 M24 4.00
BT50-J33-45 25.4 172.2 15.850 69.85 M24 4.00
BT50-B10-45 14.5 161.3 10.094 69.85 M24 3.60
BT50-B10-100 14.5 216.3 10.094 69.85 M24 3.80
BT50-B12-45 18.5 165.3 12.065 69.85 M24 3.60
BT50-B16-45 24 170.8 15.733 69.85 M24 3.65
BT50-B16-60 24 185.8 15.733 69.85 M24 3.70
BT50-B16-75 24 200.8 15.733 69.85 M24 3.74
BT50-B16-90 24 215.8 15.733 69.85 M24 3.78
BT50-B18-45 32 178.8 17.780 69.85 M24 3.70
