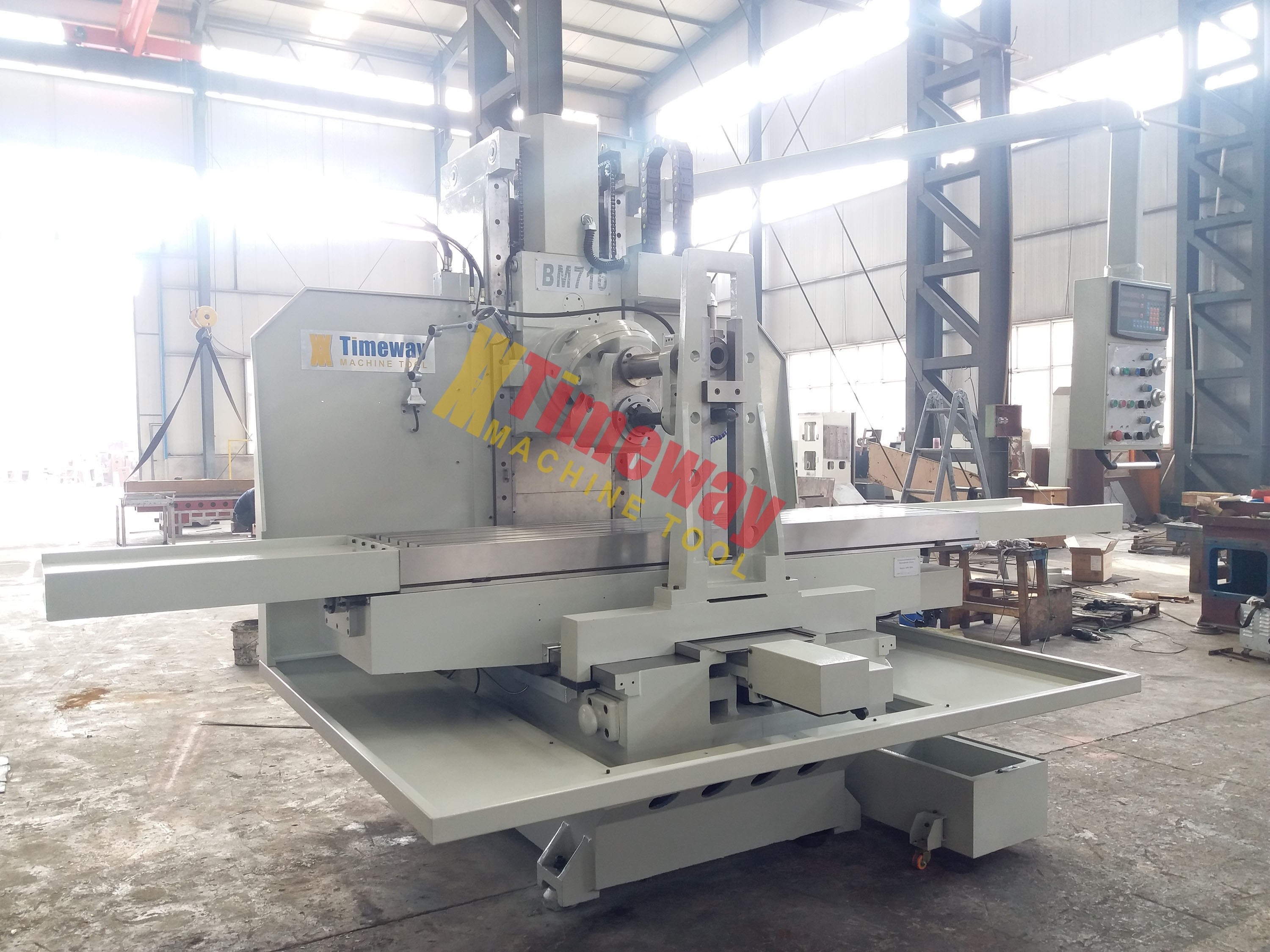

Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Specifications
Table Travel (X) (mm) :
1800
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
700 mm
Table Travel (Z) (mm) :
100 mm
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
6 - 1500 r.p.m
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
BM716
Type :
VERTICAL
Spindle Motor Power(kW) :
11
Voltage :
Customer Requirement
Dimension(L*W*H) :
4380x2520x2800mm
Weight (KG) :
9000
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Milling
Machine Type :
Milling Machine Vertical Universal
Product name :
Milling Machine Repairing
Keyword :
Milling Machine Manual
Function :
Milling Cutting
Application :
Metal Machining
CNC or Not :
Normal
Usage :
General
Color :
Custom-made
Precision :
Precision
Number of Axes :
3
Condition :
New
Showroom Location :
None
Core Components :
Motor
Table Travel (mm) :
600x2500
Year :
2023
Applicable Industries :
Manufacturing Plant, Fresadora universal para metal ZX6350A Milling mac
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$50,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
SPECIFICATION
UNIT
BM716
Table size
mm
600x2500
Longitudinal travel (X)
mm
1800
Cross travel (Y)
mm
700
T slot (No./width/distance)
mm
5/20/100
Spindle taper
ISO50
Verical spindle speed
rpm
6-1500 (2steps)
Distance from horizontal spindle axis to table
mm
8-660
Distance from vertical spindle axis to column
mm
8-660
Distance from vertical spindle nose to table
mm
0-700
X/Y-axis feed speed
mm/min
2.5-3000
X/Y-axis rapid feed speed
mm/min
6000
Z-axis feed speed
mm/min
2.5-2500
Z-axis rapid feed speed
mm/min
3000
Main motor power
kw
11
X/Y/Z-axis feed motor torque
NM
18/23/18
Coolant pump power
kw
0.09
Machine dimensions (L脳W脳H)
mm
4380x2520x2800
Machine weight
kg
9000
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
• 3 axes DRO;
• Ball rolling lead screw for X & Y axes;
• Machine vice 200mm;
• Universal dividing head;
• Rotary table 500mm;
• Spindle guard(eye protection);
Why Choose Us
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Professional Machining CNC Bed-Type Milling Machine Precision Table Travel 600x2500mm
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
