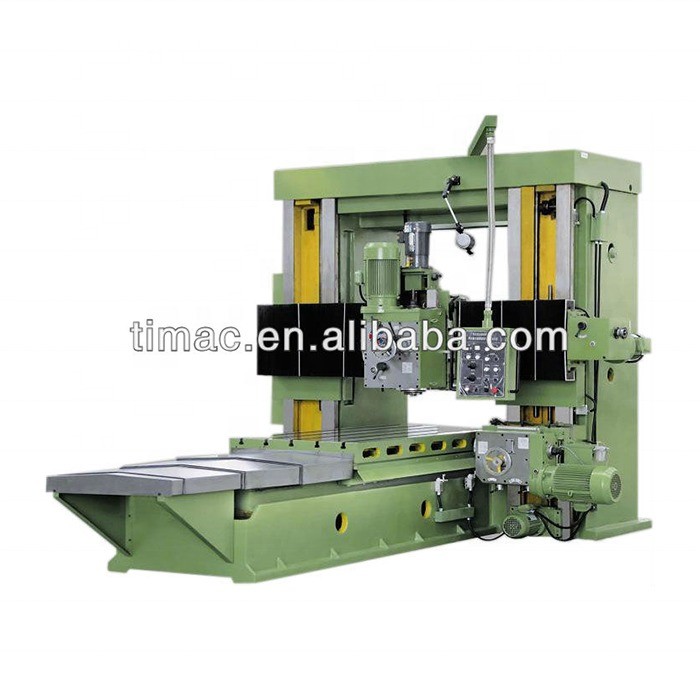

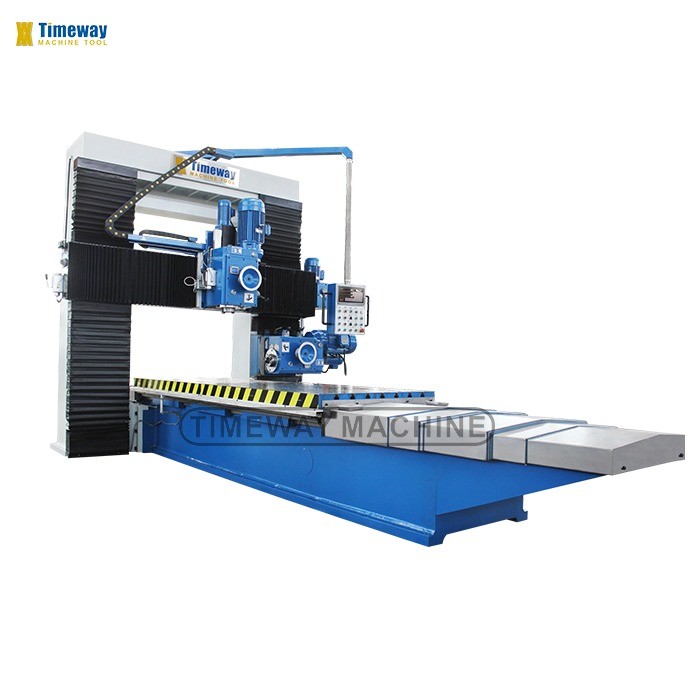

1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
Specifications
Table Travel (X) (mm) :
6000
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
2200
Table Travel (Z) (mm) :
1000
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
10 - 685 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
M2016/60
Type :
Gantry
Spindle Motor Power(kW) :
7.5
Voltage :
As per customer's request
Dimension(L*W*H) :
14.08 x 3.23 x 3 m
Weight (KG) :
25000
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
After-sales Service Provided :
Field installation, commissioning and training
Gantry Milling Machine :
Milling machine
Power :
7.5 kw
Certification :
ISO9001; CE
X-axis travel :
6000mm
Y-axis travel :
2200mm
Z-axis travel :
1000mm
Number of Axes :
2
Condition :
New
Applicable Industries :
Manufacturing Plant
Showroom Location :
Malaysia, Australia, Viet Nam, Brazil, Indonesia, Russia, Thailand
Core Components :
Motor, Other, Gearbox
Table Travel (mm) :
6000x2000x1500
Packaging Details :
wood case
Port :
China Port
Supply Ability :
30 Set/Sets per Month
Price :
$75,850.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

1200*6000mm Table Size / Universal Plano Milling Machines M2016/60

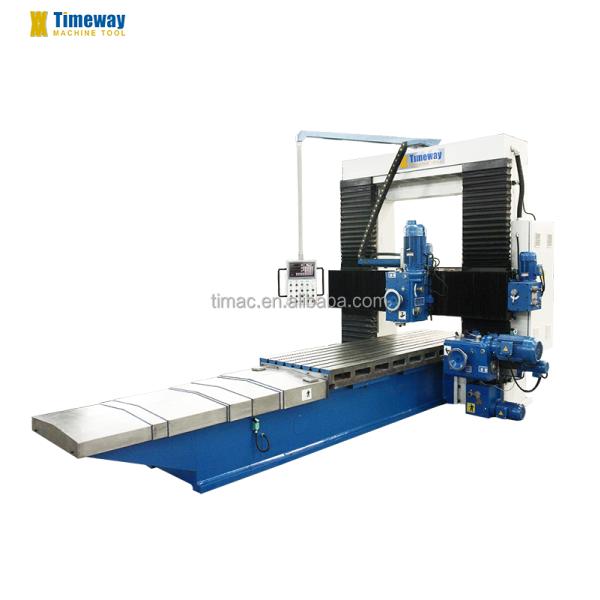

1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications

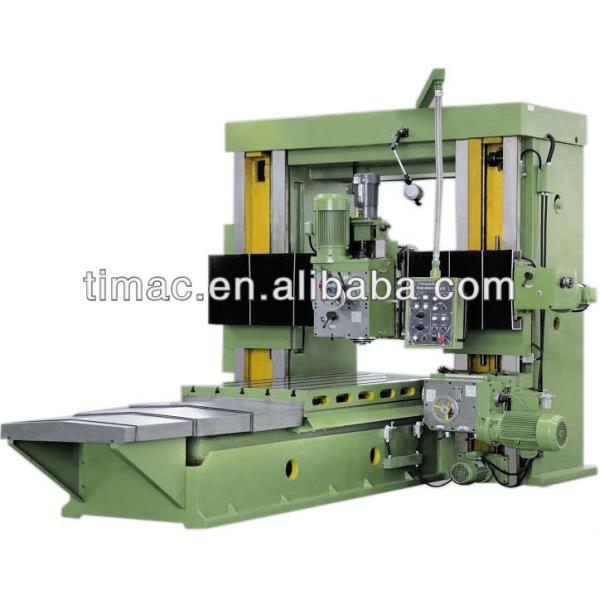

1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications

Application:
X20 series heavy gantry milling machines are high-tech products with high working efficiency.The core technique of it originates from Taiwan, the scientific & logical design of the structure and the adoption of the advanced function unit can realize strong cutting function and safe & reli-able movement and long working life.
It is used in machining work,moulding and some other industries,especially the machining of plane / end face / inclined plane / T slot / combined guideway of large / medium / small machine parts.

Feature:
1.Heat-treatment technics & mechanical lubrication are adopted on the guideway of the machine body to reduce friction & prolong the working life of the machine.
2.Stepless table speed change.
3.Rigid machine bed / beam / column ensure stability of the machine in strong cutting.
4.Milling head can move vertically or swivel ±30°.

Specification X20 SERIES HEAVY GANTRY MILLING MACHINES
M2014/20 M2014/40 M2016/40 M2016/60
Table size mm 1000 x 2000 1000 x 4000 1200 x 4000 1200 x 6000
Table feeding speed mm/min 0-260
Table rapid feed speed mm/min 2500
Power of table motor kw 4 5.5 7.5
Max.table loadkg 4000 6000 8000 10000
Max.allowable workpiece dimensions Length mm 2000 4000 4000 6000
Width mm 1400 1600
Height mm 800 1200
Dis.between columns mm 1450 1620
Spindle motor power kw 7.5
Spindle taper ISO50
Power of spindle feed motor kw 1.5
Spindle speed r/min 100-685(6 Steps)
Milling head swivel angle ± 30°
Dis. Between vertical spindle nose & table surfacemm 0-800 0-1200
Dis. Between horizontal spindle nose & table surface mm 100
Recommendatory dia.of tools mm φ160 φ200
External dimensions Length mm 6080 10080 10080 14080
Width mm 2630 2630 3230 3230
Height mm 2800 2800 3000 3000
