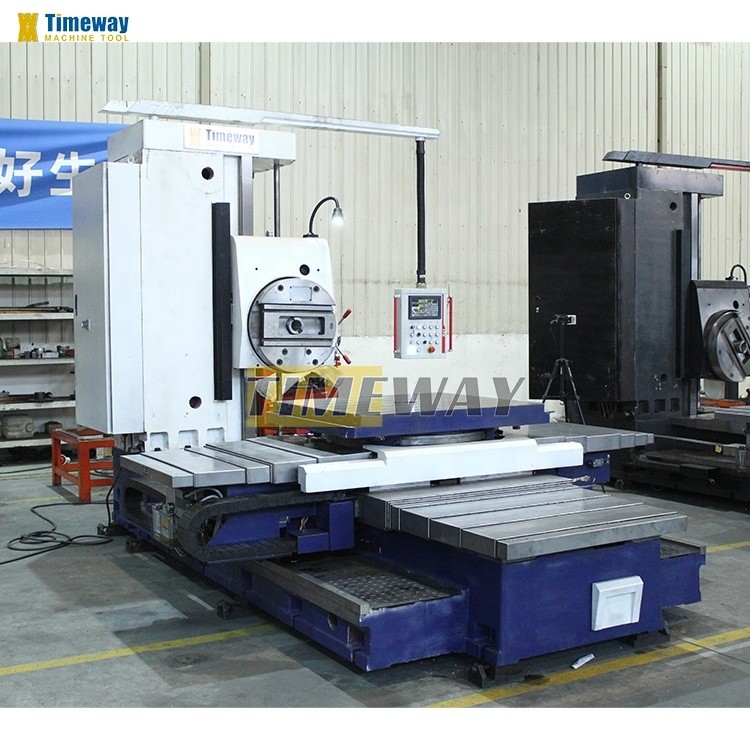

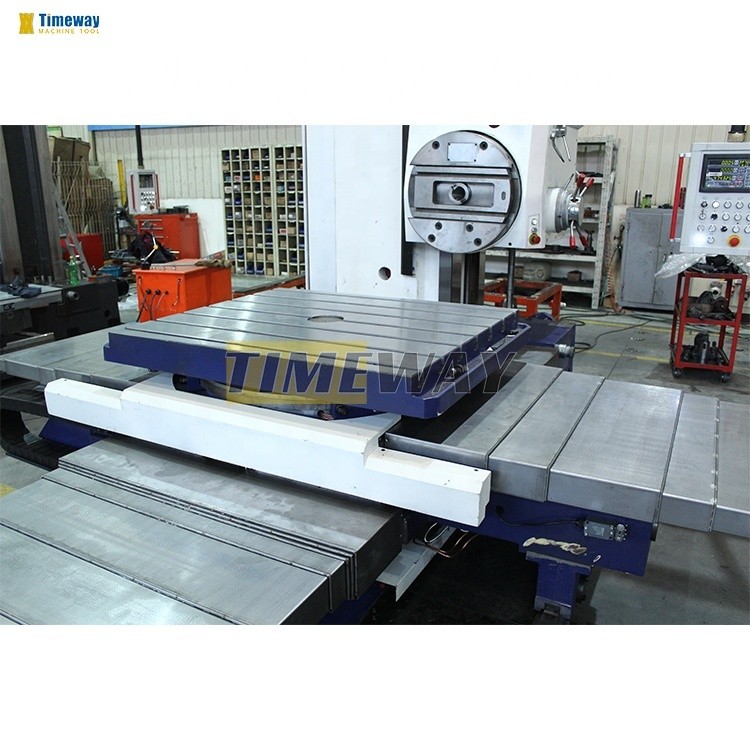

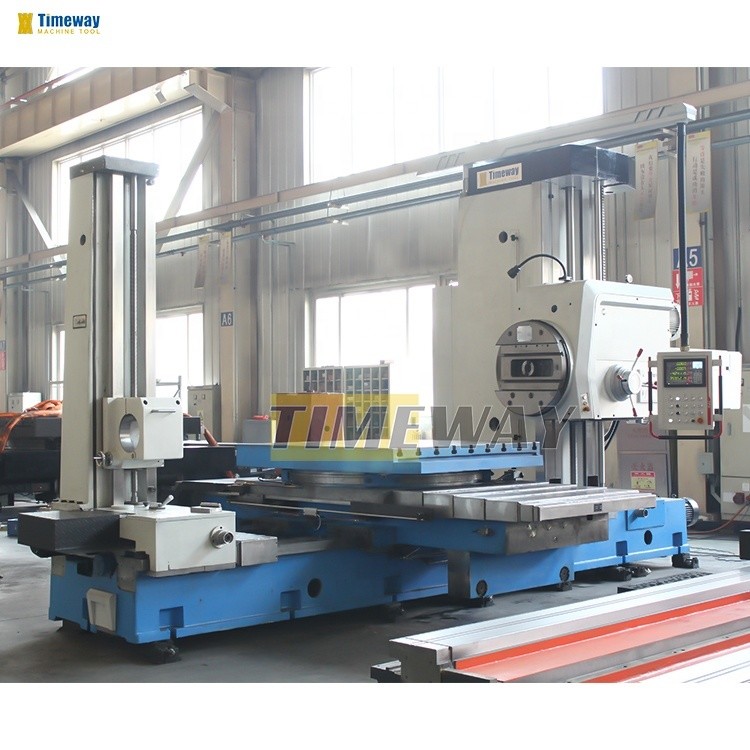

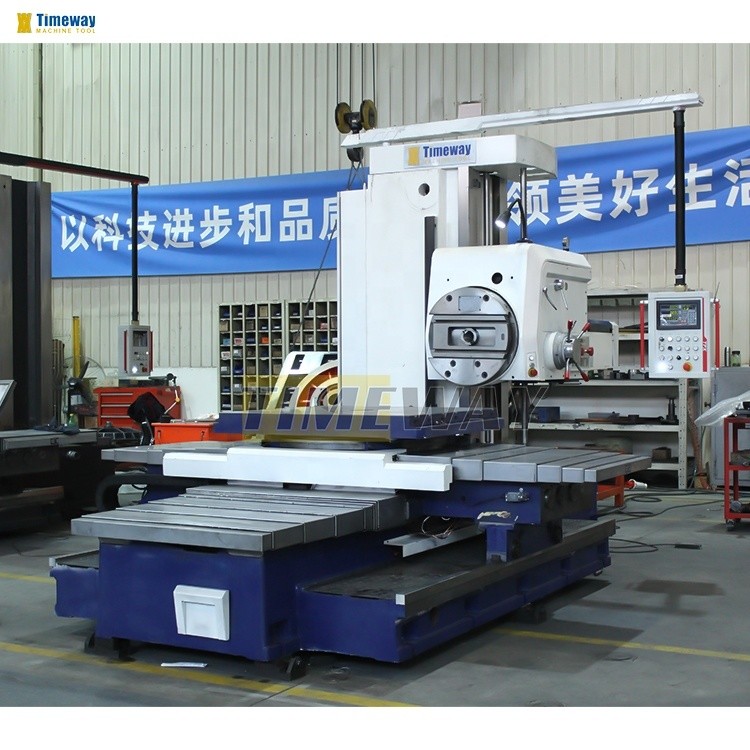

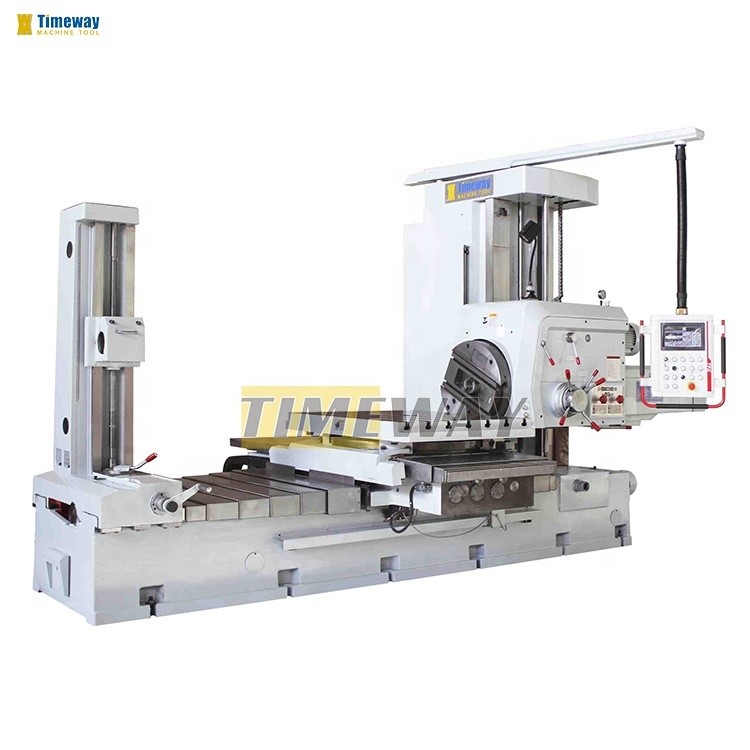

Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Specifications
Table Size (mm) :
1100x960
Table Travel (X) (mm) :
900 mm
Table Travel (Y) (mm) :
900 mm
Table Travel (Z) (mm) :
1400 mm
Number of Axes :
3
Max. Table Load(kg) :
5000
Travel (W-axis) (mm) :
600 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Gearbox, Motor
Positioning Accuracy (X axis) mm :
0.005
Positioning Accuracy (Y axis) mm :
0.005
Positioning Accuracy (Z axis) mm :
0.005
No. of Spindles :
Single
Range of Spindle Speed(r.p.m) :
200 r.p.m
Spindle Motor Power(kW) :
7.5
Type :
Horizontal
Condition :
New
Place of Origin :
China
Brand Name :
TIMEWAY
Voltage :
380V 50HZ 3PH or negotiable
Dimension(L*W*H) :
4910x2454x2750
Weight (T) :
11.5 T
Warranty :
1 Year
Key Selling Points :
Multifunctional
Applicable Industries :
Machinery Repair Shops, Other
Showroom Location :
United Kingdom, United States, Italy, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, South Korea, Chile, UAE, Australia
Product name :
Horizontal Boring Machine and Milling Machine Tool
Application :
Construction Machine Repairing
Functions :
Broing and Milling
After-sales Service :
Online
Precision :
High Precision
Motor Power (kw) :
7.5 Kw
Boring diameter :
110mm
Spindle Taper :
MT6
Color :
Optional
Machine weight :
11500kg
Packaging Details :
Wooden cases(can be fumigated)
Supply Ability :
150 Set/Sets per Month
Price :
$16,467.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Specification
Unit
TPX-100B
TPX-130B
Spindle dia.
mm
110
130
Spindle taper
-
MT6
Metric 80
Max. spindle torque
N.m
1225
3136
Max. spindle thrust
N
12250
31360
Spindle speed steps
-
22
24
Spindle speed range
rpm
8-1000
4-800
Main motor power
kw
7.5
15
Max. facing head torque
N.m
1960
4900
Facing head dia.
rpm
600
750
Facing head speed range
rpm
4-200
2.5-125
Facing head speed steps
steps
18
18
Table size
mm
110x960
1600x1400
Max. loading capacity
kg
5000
8000
T-slot size
-
7
28
X/Y/Z travel
mm
900/900/1400
1600/1400/2000
Spindle travel
mm
600
900
Facing slide travel
mm
180
250
Distance between spindle center and table
mm
0-900
0-900
X/Y/Z/W-axis rapid feed speed
mm
0.005
0.005
Machine weight
kg
11500
24000
Machine dimensions (LxWxH)
mm
4910x2451x2750
6995×3647×3442
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
· MT6 spindle
· Metric 80 spindle
· Facing plate
· Boring tool holder
· Work lamp
· Cooling system
· Hydraulic pump

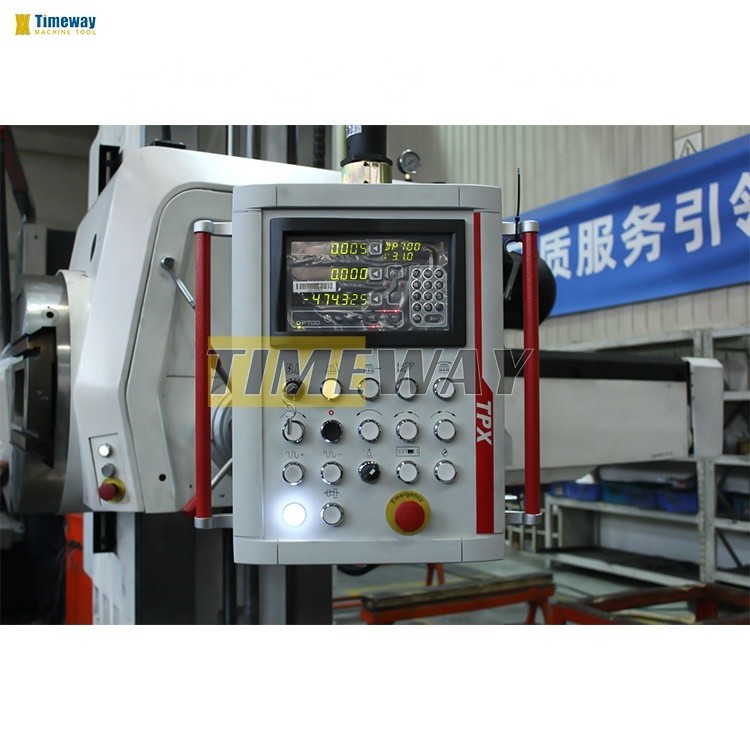

· NEWALL x/y-axis DRO
· MITSUBISHI PLC control
· Level wedges & foundation bolts
· Tool & tool box
· Operator manual(English)
· ISO spindle
· NEWALL Z-axis DRO
· Rear column
· Turning device & gears

Why Choose Us
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
